ZT-42 (17BA5A4G790) - White Outdoor 42" Zero-Turn Mower (2005) Wheels Parts Diagram

42" Zero-Turn Mower

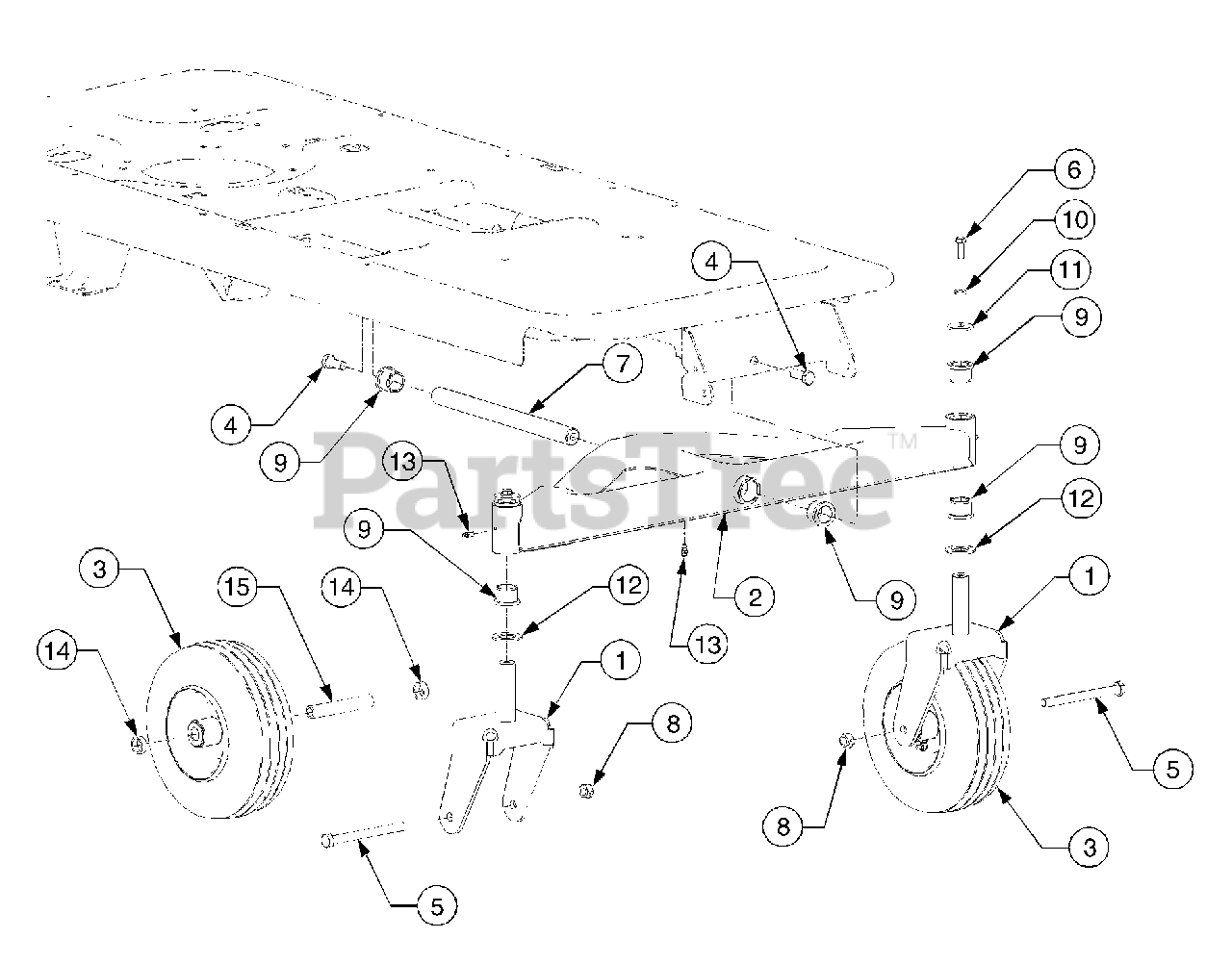

Wheels Parts Diagram

  • Title

1

White Outdoor 603-0363A

Bracket, Castor Wheel

Variations

White Outdoor 603-0363A-0716

Caster Wheel Yoke Kit - CUB YELLOW-99 (0716)

$121.99

$

Usually ships in 3-6 days

0

White Outdoor 603-0363A-0650

Caster Wheel Yoke Kit - RED METALLIC (0650)

$

$

Not available

$121.99

$

Usually ships in 3-6 days

0

2

White Outdoor 603-04148

Axle, Front Pivot
(Superseded to 603-04148C)

Variations

White Outdoor 603-04148-0716

AXLE-FRONT PIVOT - CUB YELLOW-99 (0716)

$425.99

$

In Stock, only 1 left!

0

White Outdoor 603-04148-0650

AXLE-FRONT PIVOT - RED METALLIC (0650)

$

$

Not available

$425.99

$

Usually ships in 3-6 days

0

3

White Outdoor 634-3164

Wheel Assembly, 11.0 x 4.0 x 5.0

$

$

Not available

4

White Outdoor 710-04186

Screw, Hex Lock, 1/2-13 x 1.25 GR5

$7.49

$

In Stock, Qty 11

0

5

White Outdoor 710-0506

Screw, Hex Cap, 1/2-20 x 5.5 GR5

$11.99

$

In Stock, Qty 13

0

6

White Outdoor 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 711-04228

Shaft, Axle
(Superseded to 911-04228)

$81.99

$

In Stock, only 1 left!

0

8

White Outdoor 712-0239

Nut, Hex Lock, 1/2-20 GRA

$6.49

$

In Stock, Qty 20+

0

9

White Outdoor 731-0374

Bearing, Flange, 1.0 x 1.254
(Superseded to 931-0374)

$7.99

$

In Stock, Qty 20+

0

10

White Outdoor 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 736-0227

Washer, Flat, .39 x 1.5 x .134

$6.99

$

In Stock, Qty 12

0

12

White Outdoor 736-0250

Washer, Flat, 1.0 x 1.75 x .107

$4.99

$

In Stock, Qty 20+

0

13

White Outdoor 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

14

White Outdoor 750-0456

Spacer, .79 x .347

$4.99

$

In Stock, Qty 20+

0

15

White Outdoor 750-3197A

Spacer, Wheel

$22.99

$

In Stock, Qty 10

0
