ZT-50 (17AF2ACP897) - Columbia 50" Zero-Turn Mower (2012) Rear Drive & Wheels 50-Inch Parts Diagram

50" Zero-Turn Mower

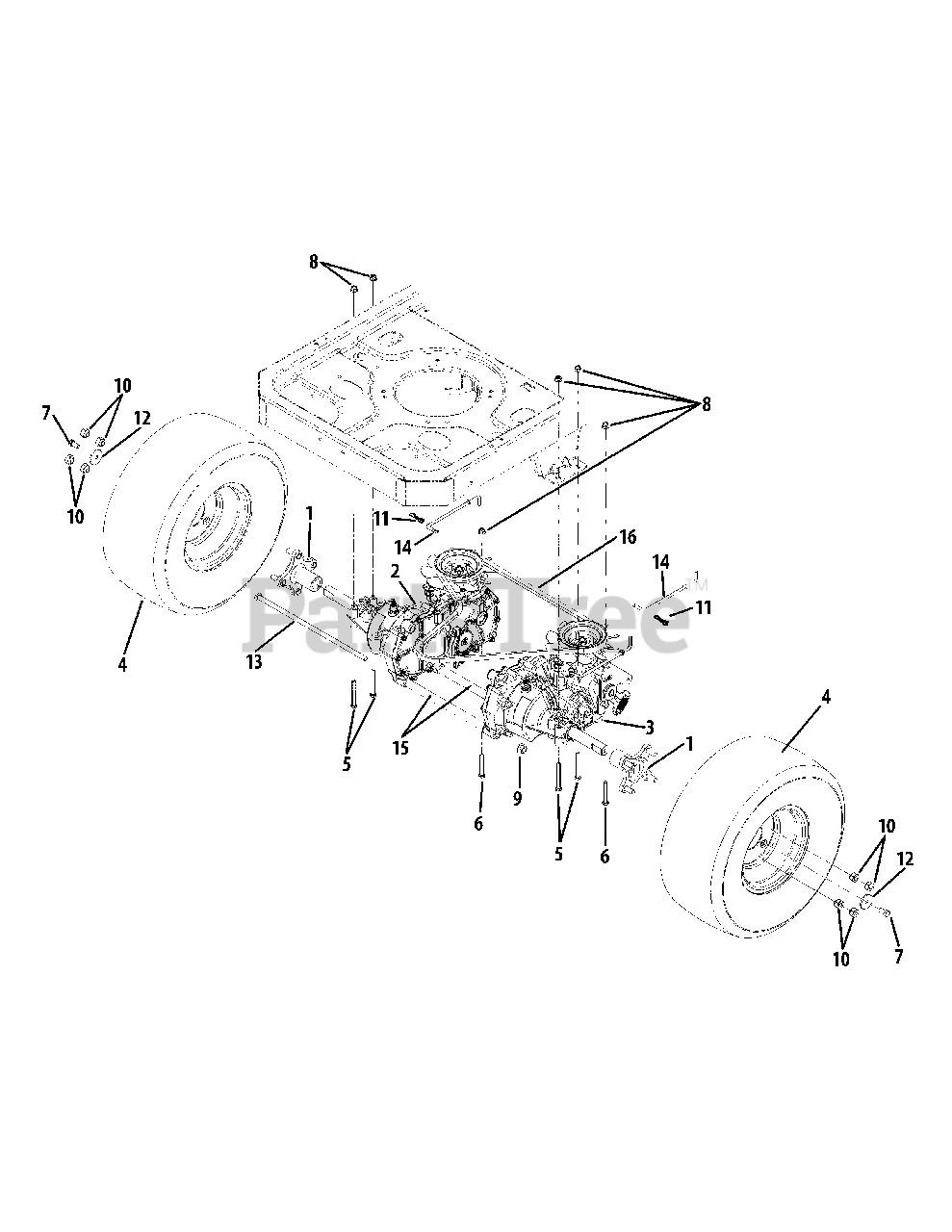

Rear Drive & Wheels 50-Inch Parts Diagram

  • Title

1

MTD 918-04317

Wheel Hub, 7/16-14 x 1.6

$123.99

$

In Stock, only 2 left!

0

2

MTD 918-04431B

Transmission Assembly, LH

$1822.99

$

Usually ships in 3-6 days

0

3

MTD 918-04432B

Transmission Assembly, RH

$1913.99

$

Usually ships in 3-6 days

0

4

MTD 634-04128-0911

Wheel Assembly, 18 x 9.5-8 (50" Deck)
(Superseded to 634-04128-0916)

$

$

Not available

4

MTD 734-1729

Tire, 18 x 9.5-8 Sq Sh

Note: Not shown

Variations

734-1729-0901

MTD 734-1729-0901

Turf Saver Tire, 18 X 9.5-8 Sq - Carlisle (0901)

$

$

Not available

734-1729-0906

MTD 734-1729-0906

Turf Saver Tire, 18 X 9.5 X 8 - Kenda (0906)

$

$

Not available

$179.99

$

Usually ships in 3-6 days

0

4

MTD 603-04175-0662

Rim

Note: Not shown

$

$

Not available

4

MTD 734-0255

Valve
(Superseded to 934-0255)

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0176

Hex Cap Screw, 5/16-18 x 2.75

$4.99

$

In Stock, only 2 left!

0

6

MTD 710-0395

Hex Cap Screw, 5/16-18 x 2.25

$4.99

$

In Stock, Qty 8

0

7

MTD 710-3119

Hex Cap Screw, 3/8-16 x .75

$7.49

$

In Stock, only 2 left!

0

8

MTD 712-04063

Hex Flange Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-0459

Hex Flange Nut, 7/16-20

$5.49

$

In Stock, Qty 11

0

10

MTD 712-3050

Lug Nut, 7/16-14

$10.99

$

In Stock, Qty 20+

0

11

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

12

MTD 936-0227

Flat Washer, .39 x 1.5 .134
(Superseded to 736-0227)

$

$

Not available

13

MTD 738-04192B

Rod, .405 x 14.0

$22.99

$

Usually ships in 3-6 days

0

14

MTD 747-04217C-0637

Bypass Rod

$23.99

$

Usually ships in 3-6 days

0

15

MTD 750-04561

Tube, .45 x .69 x 10.2
(Superseded to 750-04561A)

$28.99

$

Usually ships in 3-6 days

0

16

MTD 954-04043B

V-Belt

$45.99

$

In Stock, Qty 20+

0
