ZT-5000 (17AD2ACP790) - White Outdoor 50" Zero-Turn Mower (2007) Operator's Platform Parts Diagram

50" Zero-Turn Mower

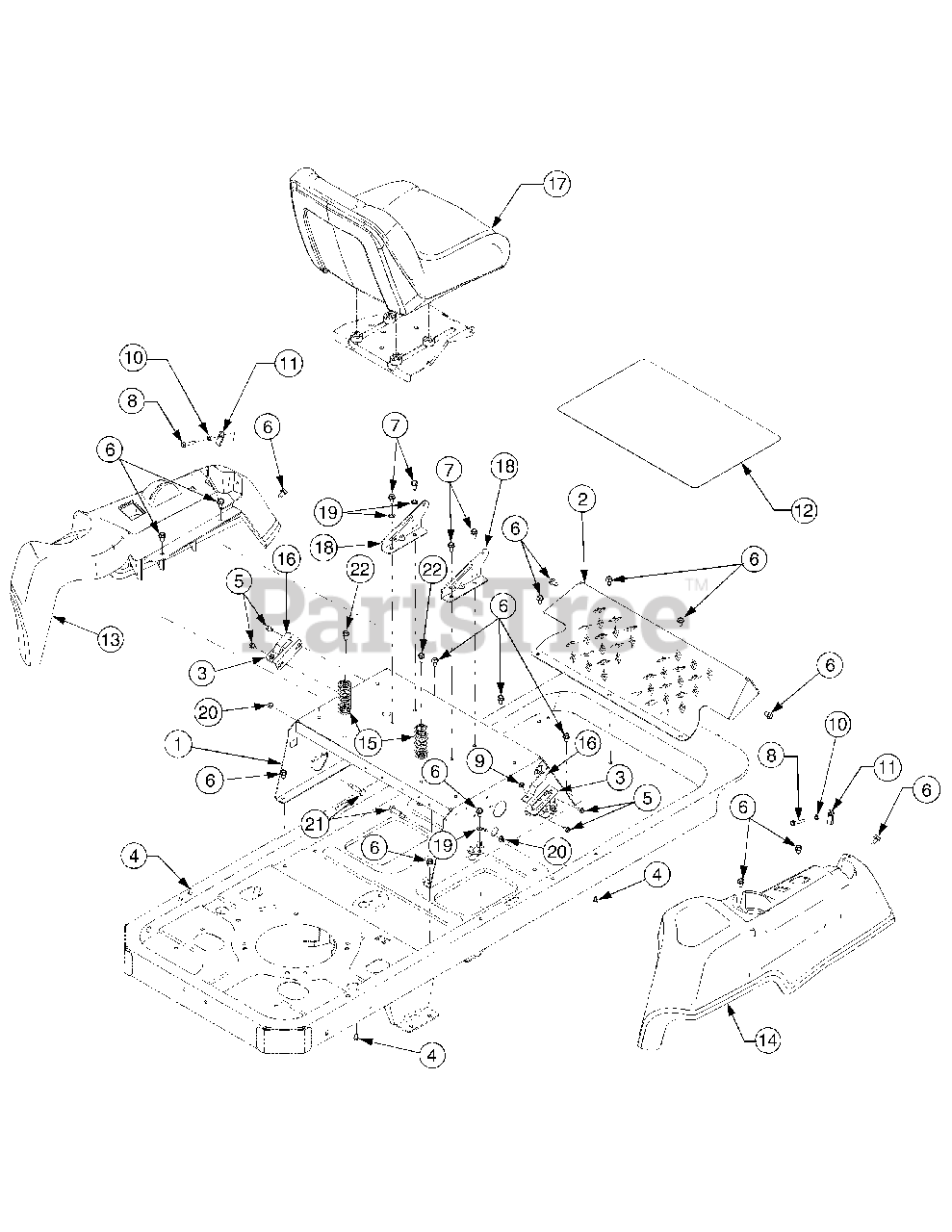

Operator's Platform Parts Diagram

  • Title

1

White Outdoor 603-04326B

Frame, Seat Box

Variations

White Outdoor 603-04326B-0606

FRAME-SEAT BOX - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 603-04326B-0638

FRAME-SEAT BOX - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 603-04326B-0650

FRAME-SEAT BOX - RED METALLIC (0650)

$

$

Not available

White Outdoor 603-04326B-0674

FRAME-SEAT BOX - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 603-04326B-0716

FRAME-SEAT BOX - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 603-04326B-4015

FRAME-SEAT BOX - FIRE RED (4015)

$

$

Not available

$

$

1

White Outdoor 777I22769

Graphic, Park Brake

Note: not shown

$

$

Not available

1

White Outdoor 777S32354

Graphic, Warning
(Superseded to 977S32354)

Note: not shown

$

$

Not available

1

White Outdoor 777I22770

Graphic, Deck Height

Note: not shown

$

$

Not available

2

White Outdoor 703-05373B

Bracket, Foot Rest

Variations

White Outdoor 703-05373B-0606

BRACKET FOOT REST - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 703-05373B-0637

BRACKET FOOT REST - POWDER BLACK (0637)

$

$

Not available

White Outdoor 703-05373B-0638

BRACKET FOOT REST - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 703-05373B-0650

BRACKET FOOT REST - RED METALLIC (0650)

$

$

Not available

White Outdoor 703-05373B-0674

BRACKET FOOT REST - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 703-05373B-0691

BRACKET FOOT REST - BLACK JACK (0691)

$

$

Not available

White Outdoor 703-05373B-0709

BRACKET FOOT REST - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 703-05373B-0716

BRACKET FOOT REST - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 703-05373B-4015

BRACKET FOOT REST - FIRE RED (4015)

$

$

Not available

White Outdoor 703-05373B-4021

BRACKET FOOT REST - CUB YELLOW 2 (4021)

$

$

Not available

White Outdoor 703-05373B-4033

BRACKET FOOT REST - FLINT MICA (4033)

$

$

Not available

$

$

2

White Outdoor 777D10796

Graphic, White

Note: not shown

$

$

Not available

3

White Outdoor 703-05467

Bracket, Switch Mounting

Variations

White Outdoor 703-05467-0606

Switch Mounting Bracket - MAJESTIC ORANGE (0606)

$27.99

$

Usually ships in 3-6 days

0

White Outdoor 703-05467-0637

Switch Mounting Bracket - POWDER BLACK (0637)

$27.99

$

Usually ships in 3-6 days

0

White Outdoor 703-05467-0638

Switch Mounting Bracket - MTD/TROY-BILT RED (0638)

$27.99

$

Usually ships in 3-6 days

0

White Outdoor 703-05467-0650

Switch Mounting Bracket - RED METALLIC (0650)

$27.99

$

Usually ships in 3-6 days

0

White Outdoor 703-05467-0674

Switch Mounting Bracket - YARDMAN YELLOW (0674)

$27.99

$

Usually ships in 3-6 days

0

White Outdoor 703-05467-0716

Switch Mounting Bracket - CUB YELLOW-99 (0716)

$27.99

$

Usually ships in 3-6 days

0

White Outdoor 703-05467-4015

Switch Mounting Bracket - FIRE RED (4015)

$27.99

$

Usually ships in 3-6 days

0

White Outdoor 703-05467-4021

Switch Mounting Bracket - CUB YELLOW 2 (4021)

$27.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0

4

White Outdoor 710-04261

Screw, Hex Wash. Hd Tapp #12-16 x .50

$5.99

$

In Stock, only 4 left!

0

5

White Outdoor 710-0599

Screw, Hex Wash. Hd. Tapp. 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 710-0604A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .625

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-0726

Screw, Hex Wash. Hd. Tapp 5/16-12 x .75

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 710-0778

Screw, Hex Wash. Hd. Tapp. 1/4-20 x 1.5

$3.99

$

In Stock, Qty 16

0

9

White Outdoor 710-1268

Screw, Hex Wash. Hd Tapp #10-16 x .375

$3.99

$

In Stock, only 2 left!

0

10

White Outdoor 712-0298

Nut, Hex Jam, 1/4-20 GR2
(Superseded to 912-0298)

$5.99

$

Usually ships in 3-6 days

0

11

White Outdoor 712-04092

Nut, U Type Speed, 1/4-20

$5.49

$

Usually ships in 3-6 days

0

12

White Outdoor 723-04020

Pad, Foot

$

$

Not available

13

White Outdoor 731-04662C

Console, LH
(Superseded to 731-04662E)

$

$

Not available

13

White Outdoor 777I22752

Graphic, Instruction - ZT 4200

Note: not shown

$

$

Not available

13

White Outdoor 777I22751

Graphic, Instruction - ZT 5000

Note: not shown

$

$

Not available

13

White Outdoor 777D10793

Graphic, White Outdoor ZT 4200

Note: not shown

$

$

Not available

13

White Outdoor 777D10795

Graphic, White Outdoor ZT 5000

Note: not shown

$

$

Not available

13

777I22305

Graphic, Throttle Control ZT 4200

Note: not shown

$

$

Not available

13

777I22309

Graphic, Throttle Control ZT5000

Note: not shown

$

$

Not available

14

White Outdoor 731-04663B

Console, RH
(Superseded to 731-04663D)

$73.99

$

Usually ships in 3-6 days

0

14

White Outdoor 777I22754

Graphic, Instruction

Note: not shown

$

$

Not available

14

White Outdoor 777D10792

Graphic, White Outdoor ZT 4200

Note: not shown

$

$

Not available

14

White Outdoor 777D10794

Graphic, White Outdoor ZT 5000

Note: not shown

$

$

Not available

15

White Outdoor 732-04035

Spring, Compression, 1.28 x 3.125

$9.99

$

In Stock, Qty 15

0

16

White Outdoor 732-04200

Spring, Switch Actuator

$9.99

$

In Stock, Qty 9

0

17

White Outdoor 757-04041

Seat

$

$

Not available

18

White Outdoor 783-1489C

Bracket, Seat Pivot

Variations

White Outdoor 783-1489C-0638

BRACKET-MOUNT SEAT - MTD/TROY-BILT RED (0638)

$21.99

$

In Stock, only 1 left!

0

White Outdoor 783-1489C-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$21.99

$

In Stock, only 1 left!

0

White Outdoor 783-1489C-0650

Seat Mounting Bracket - RED METALLIC (0650)

$21.99

$

In Stock, only 1 left!

0

White Outdoor 783-1489C-4008

Seat Mounting Bracket - WINE RED (4008)

$20.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1489C-0716

BRACKET-MOUNT SEAT - CUB YELLOW-99 (0716)

$21.99

$

In Stock, only 1 left!

0

White Outdoor 783-1489C-4015

BRACKET-MOUNT SEAT - FIRE RED (4015)

$20.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1489C-4021

BRACKET-MOUNT SEAT - CUB YELLOW 2 (4021)

$21.99

$

In Stock, only 1 left!

0

$17.99

$

Usually ships in 3-6 days

0

19

White Outdoor 736-0148

Washer, External Tooth, 3/8

$3.49

$

In Stock, Qty 12

0

20

White Outdoor 712-04064

Nut, Hex Insert Lock, 1/4-20 - Model ZT 5000 ONLY

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 738-0572

Screw, Shoulder, .374 x 1.16:1/4-20 -Model ZT 5000 ONLY

$7.49

$

Usually ships in 3-6 days

0

22

White Outdoor 710-1260A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0
