ZT-54 (17AF2ACK897) - Columbia 54" Zero-Turn Mower (2013) Seat Adjustment Parts Diagram

54" Zero-Turn Mower

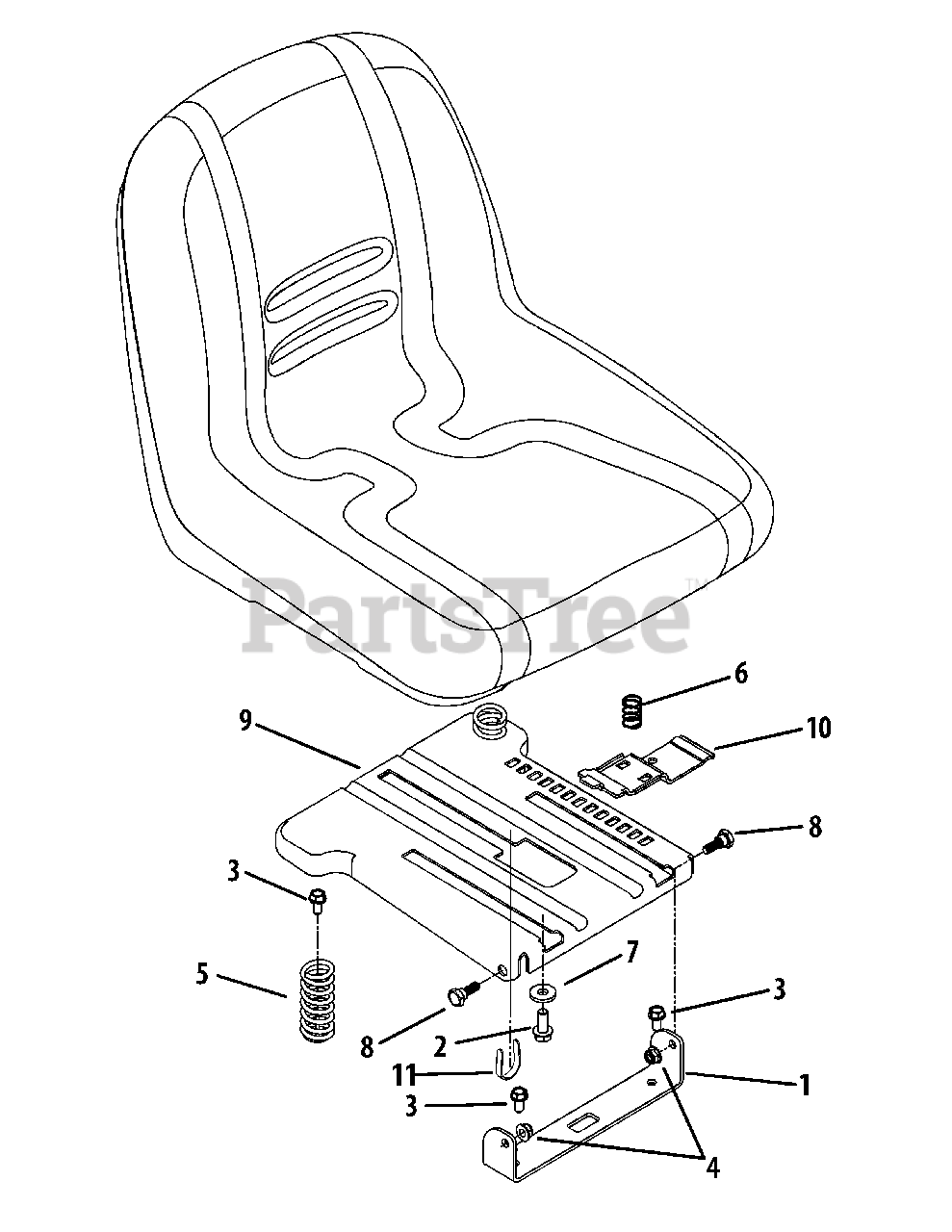

Seat Adjustment Parts Diagram

  • Title

1

MTD 703-08734

Seat Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

703-08734-0606

MTD 703-08734-0606

BRACKET-SEAT PIVOT - MAJESTIC ORANGE (0606)

$28.99

$

Usually ships in 3-6 days

0

703-08734-0637

MTD 703-08734-0637

BRACKET-SEAT PIVOT - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

703-08734-0638

MTD 703-08734-0638

BRACKET-SEAT PIVOT - MTD/TROY-BILT RED (0638)

$28.99

$

Usually ships in 3-6 days

0

703-08734-4021

MTD 703-08734-4021

Seat Pivot Bracket - CUB YELLOW 2 (4021)

$34.99

$

Usually ships in 3-6 days

0

703-08734-0691

MTD 703-08734-0691

BRACKET-SEAT PIVOT - BLACK JACK (0691)

$

$

Not available

703-08734-0709

MTD 703-08734-0709

BRACKET-SEAT PIVOT - MASTERCRAFT GREEN (0709)

$

$

Not available

703-08734-4015

MTD 703-08734-4015

BRACKET-SEAT PIVOT - FIRE RED (4015)

$

$

Not available

703-08734-4033

MTD 703-08734-4033

BRACKET-SEAT PIVOT - FLINT MICA (4033)

$

$

Not available

703-08734-4038

MTD 703-08734-4038

BRACKET-SEAT PIVOT - DAY ORANGE (4038)

$

$

Not available

$28.99

$

Usually ships in 3-6 days

0

2

MTD 710-04482

Hex Flange Bolt 3/8-16 x .875

Note: (Seat stop bolt)

$4.99

$

In Stock, Qty 20+

0

3

MTD 710-04484

Hex Washer Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$4.49

$

In Stock, Qty 20+

0

5

MTD 732-04849

Compression Spring

$13.99

$

In Stock, only 2 left!

0

6

MTD 732-04563

Compression Spring

$5.99

$

In Stock, Qty 20+

0

7

MTD 736-0258

Flat Washer .385 x 1.0 x .135

$4.99

$

In Stock, Qty 10

0

8

MTD 938-0296

Shoulder Screw
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

9

MTD 783-06049

Seat Mount Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

783-06049-0606

MTD 783-06049-0606

BRACKET-SEAT MOUNTING - MAJESTIC ORANGE (0606)

$72.99

$

Usually ships in 3-6 days

0

783-06049-0637

MTD 783-06049-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$72.99

$

Usually ships in 3-6 days

0

783-06049-0638

MTD 783-06049-0638

BRACKET-SEAT MTG - MTD/TROY-BILT RED (0638)

$67.99

$

Usually ships in 3-6 days

0

783-06049-0650

MTD 783-06049-0650

BRACKET-SEAT MTG - RED METALLIC (0650)

$67.99

$

Usually ships in 3-6 days

0

783-06049-0665

MTD 783-06049-0665

BRACKET-SEAT MTG - YARDMAN GREEN (0665)

$67.99

$

Usually ships in 3-6 days

0

783-06049-0691

MTD 783-06049-0691

Seat Mounting Bracket - BLACK JACK (0691)

$72.99

$

Usually ships in 3-6 days

0

783-06049-0709

MTD 783-06049-0709

BRACKET-SEAT MTG - MASTERCRAFT GREEN (0709)

$67.99

$

Usually ships in 3-6 days

0

783-06049-4015

MTD 783-06049-4015

BRACKET-SEAT MTG - FIRE RED (4015)

$58.99

$

Usually ships in 3-6 days

0

783-06049-4021

MTD 783-06049-4021

Seat Mounting Bracket - CUB YELLOW 2 (4021)

$72.99

$

Usually ships in 3-6 days

0

783-06049-4033

MTD 783-06049-4033

BRACKET-SEAT MOUNTING - FLINT MICA (4033)

$67.99

$

Usually ships in 3-6 days

0

783-06049-4044

MTD 783-06049-4044

SEAT MOUNTING BRACKET (CRAFTSMAN RED) - CRAFTSMAN RED (4044)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

10

MTD 783-06050

Seat Adjustment Lever

$10.99

$

In Stock, only 2 left!

0

11

MTD 783-06448

Clip

$6.49

$

In Stock, only 2 left!

0
