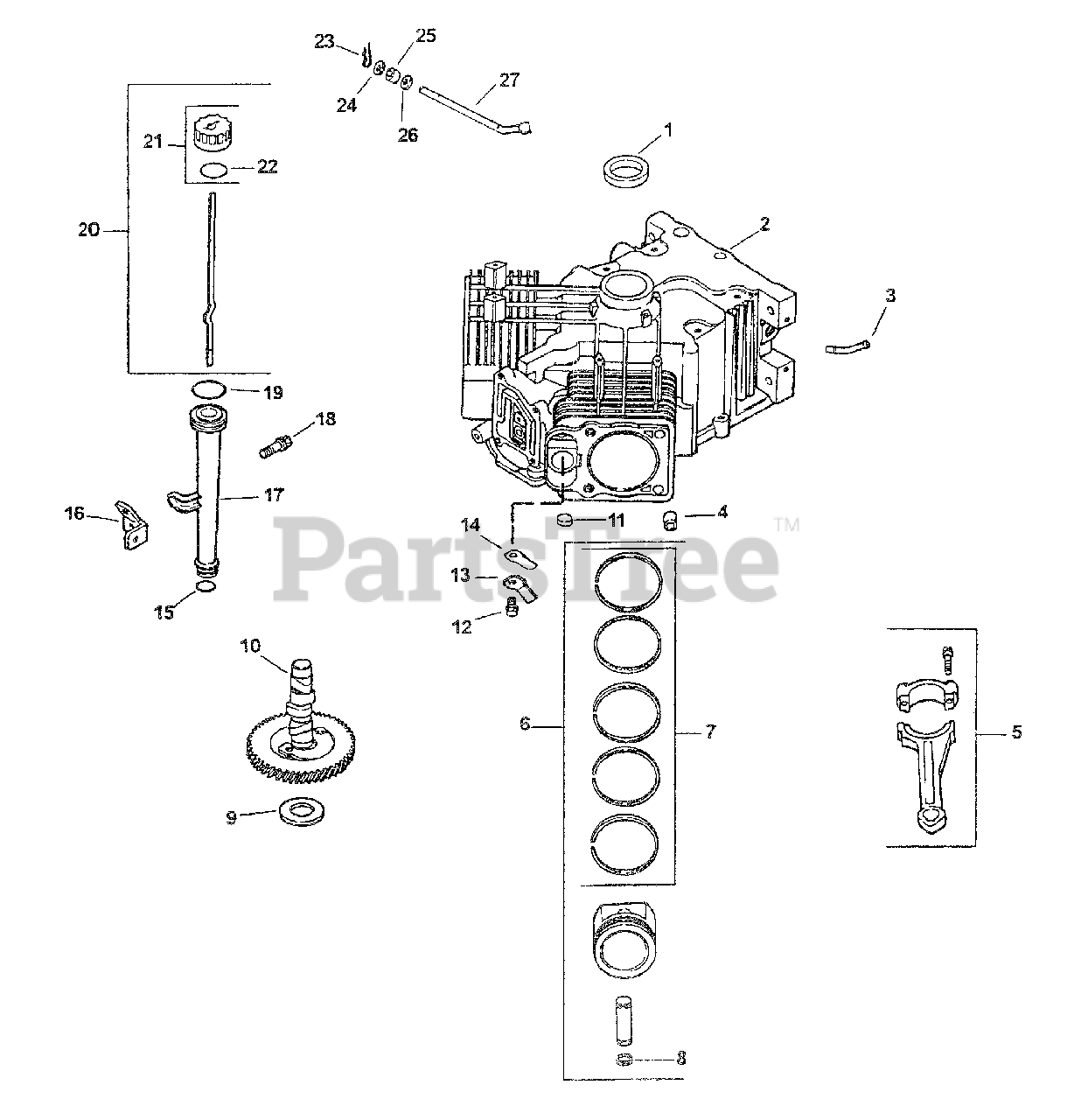

ZT 60 (53AB5B8J100) - Cub Cadet 60" Zero-Turn Mower Kohler Crankcase Parts Diagram

60" Zero-Turn Mower

Kohler Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-24-032-01

Seal, Oil Front
(Superseded to KH-24-032-19-S)

$9.49

$

In Stock, Qty 20+

0

2

Crankcase

Note: Service With Short Block

$

$

Not available

3

Cub Cadet KH-24-294-13

Fitting

$

$

Not available

4

Cub Cadet KH-12-380-17

Pin, Dowel Locating
(Superseded to KH-24-380-16-S)

$4.49

$

In Stock, Qty 5

0

5

Cub Cadet KH-24-067-13-S

Connecting Rod
(Superseded to KH-25-067-04-S)

Note: (Std.)

$75.99

$

In Stock, Qty 20+

0

Cub Cadet KH-24-064-14

Connecting Rod (.25)

$

$

Currently unavailable

6

Cub Cadet KH-24-874-06-S

Piston w/Ring Set
(Superseded to KH-25-874-13-S)

Note: (Std.)

$343.99

$

In Stock, Qty 5

0

7

Cub Cadet KH-24-108-04-S

Ring Set
(Superseded to KH-24-108-14-S)

Note: (Std.)

$

$

Not available

8

Cub Cadet KH-24-018-01

Retainer, Piston Pin
(Superseded to KH-24-018-01-S)

$3.49

$

In Stock, Qty 14

0

9

Cub Cadet KH-12-422-07

Shim, Camshaft (A.R.) (White) .02725-.02875
(Superseded to KH-12-422-07-S)

$4.49

$

In Stock, only 2 left!

0

Cub Cadet KH-12-422-08

Shim, Camshaft (A.R.) (Blue) .02925-.03075
(Superseded to KH-12-422-08-S)

$2.49

$

In Stock, only 2 left!

0

Cub Cadet KH-12-422-09

Shim, Camshaft (A.R.) (Red) .03125-.03275
(Superseded to KH-12-422-09-S)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-12-422-10

Shim, Camshaft (A.R.) (Yellow) .03325-.03475
(Superseded to KH-12-422-10-S)

$2.49

$

In Stock, Qty 11

0

Cub Cadet KH-12-422-11

Shim, Camshaft (A.R.) (Green) .03525-.03675
(Superseded to KH-12-422-11-S)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-12

Shim, Camshaft (A.R.) (Gray) .03725-.03875
(Superseded to KH-12-422-12-S)

$2.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-13

Shim, Camshaft (A.R.) (Black) .03925-.04075
(Superseded to KH-12-422-13-S)

$2.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-24-012-10-S

Camshaft
(Superseded to KH-24-012-23-S)

$

$

Not available

11

Cub Cadet KH-52-139-09

Plug, Cup
(Superseded to KH-52-139-09-S)

$4.99

$

In Stock, Qty 9

0

12

Cub Cadet KH-M-0545010

Screw, Hex Flange

$

$

Not available

13

Cub Cadet KH-24-018-04

Retainer, Reed

$

$

Not available

14

Cub Cadet KH-24-402-05-S

Reed, Breather
(Superseded to KH-24-402-07-S)

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet KH-12-153-01-S

O-Ring, Lower Oil Fill Tube

$5.99

$

In Stock, Qty 20+

0

16

Cub Cadet KH-24-126-19

Bracket, Oil Fill Tube
(Superseded to KH-24-126-243-S)

$11.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-12-123-04

Tube, Oil Fill
(Superseded to KH-32-755-04-S)

$

$

Not available

18

Cub Cadet KH-M-545016-S

Screw, Hex Flange
(Superseded to KH-25-086-398-S)

$4.49

$

In Stock, Qty 18

0

19

Cub Cadet KH-12-153-02-S

O-Ring, Upper Oil Fill Tube

$3.49

$

In Stock, Qty 20+

0

20

Cub Cadet KH-24-038-04-S

Dipstick Assembly

$21.99

$

In Stock, only 2 left!

0

21

Cub Cadet KH-25-755-13

Kit, Oil Fill Cap

$

$

Not available

22

Cub Cadet KH-12-153-03-S

O-Ring, Dipstick

$

$

Currently unavailable

23

Cub Cadet KH-12-380-04

Pin, Hitch

$

$

Not available

24

Cub Cadet KH-M-631005

Washer, Plain 6mm

$

$

Not available

25

Cub Cadet KH-12-032-01

Seal, Governor Cross Shaft

$

$

Not available

26

Cub Cadet KH-X-25-102

Washer, Plain 1/4"
(Superseded to KH-X-25-102-S)

$2.49

$

In Stock, only 2 left!

0

27

Cub Cadet KH-24-144-01

Shaft, Governor Cross

$

$

Not available
