ZT - Bad Boy Zero-Turn Mower (2007) Drive Arms Parts Diagram

Zero-Turn Mower

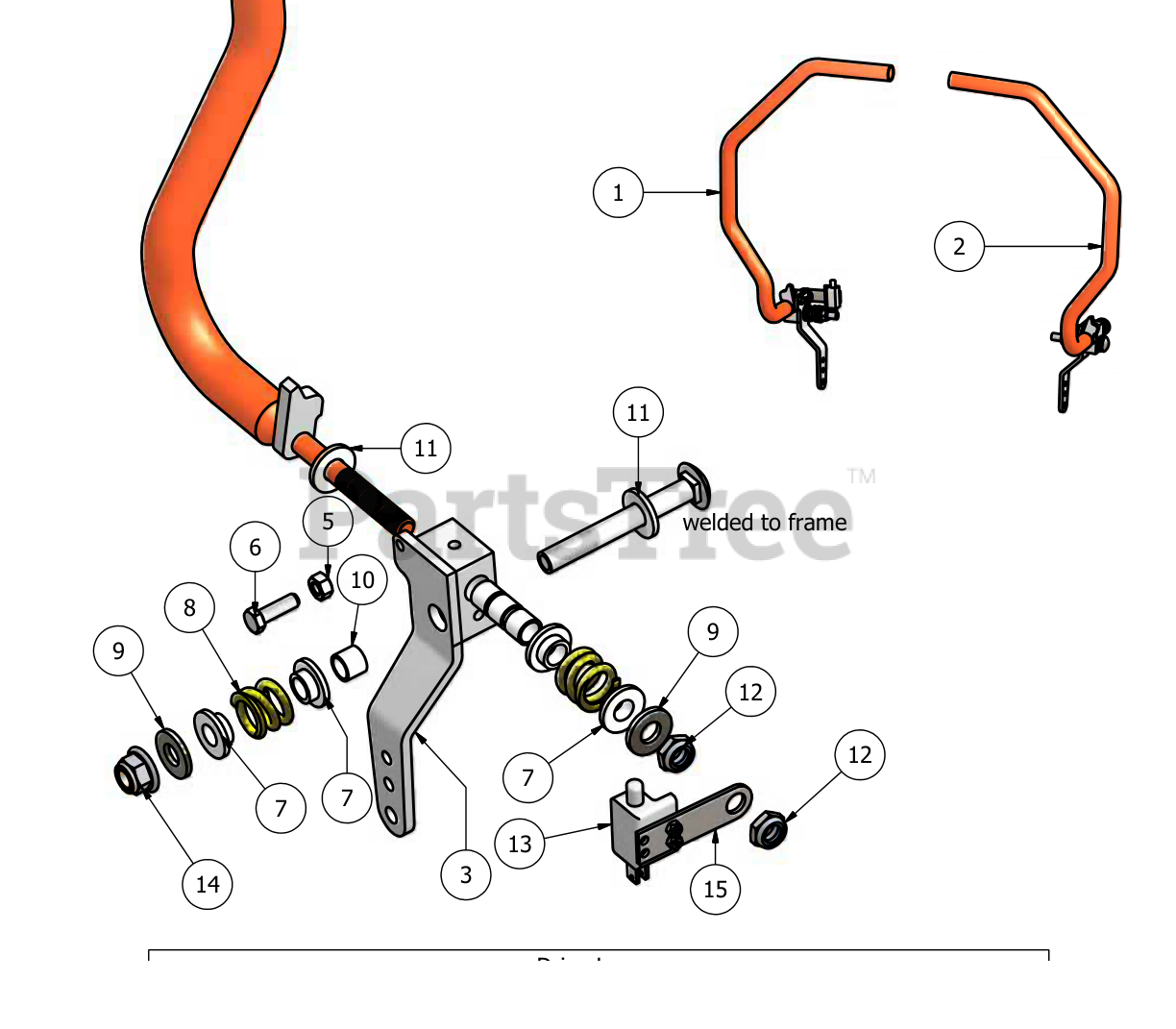

Drive Arms Parts Diagram

  • Title

1

Bad Boy 031-8822-00

Right Drive Lever

$

$

Not available

2

Bad Boy 031-8821-00

Left Drive Lever

$

$

Not available

3

Bad Boy 027-9001-00

Drive Arm Lever Housing - Right

$45.99

$

Usually ships in 4-7 days

0

4

Bad Boy 027-9000-00

Drive Arm Lever Housing - Left

$45.99

$

Usually ships in 4-7 days

0

5

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

6

Bad Boy 013-8063-00

5/16" x 3/4" Bolt

$

$

Currently unavailable

7

Bad Boy 019-8027-00

Nylon Washer .515 ID Shoulder

$0.99

$

In Stock, only 4 left!

0

8

Bad Boy 034-8025-00

Spring

$4.49

$

In Stock, only 2 left!

0

9

Bad Boy 019-8052-00

7/16 Flat Washer

$0.99

$

Usually ships in 4-7 days

0

10

Bad Boy 032-8024-00

Nylon Bushing .507 ID

$0.99

$

Usually ships in 4-7 days

0

11

Bad Boy 019-8054-00

.505 Nylon Washer

$0.99

$

In Stock, Qty 10

0

12

Bad Boy 018-4010-00

1/2" Nylock Nut (1/2 Jam)

$1.99

$

In Stock, Qty 8

0

13

Bad Boy 077-8073-00

Electric Saftey Switch

$11.99

$

In Stock, Qty 13

0

14

Bad Boy 013-8050-00

1/2" Flange Lock Nut

$1.99

$

In Stock, Qty 20+

0

15

Bad Boy 039-0021-00

Switch Bracket

$5.49

$

Usually ships in 0 days

0
