ZT - Bad Boy Zero-Turn Mower (2008) Transaxle Parts Diagram

Zero-Turn Mower

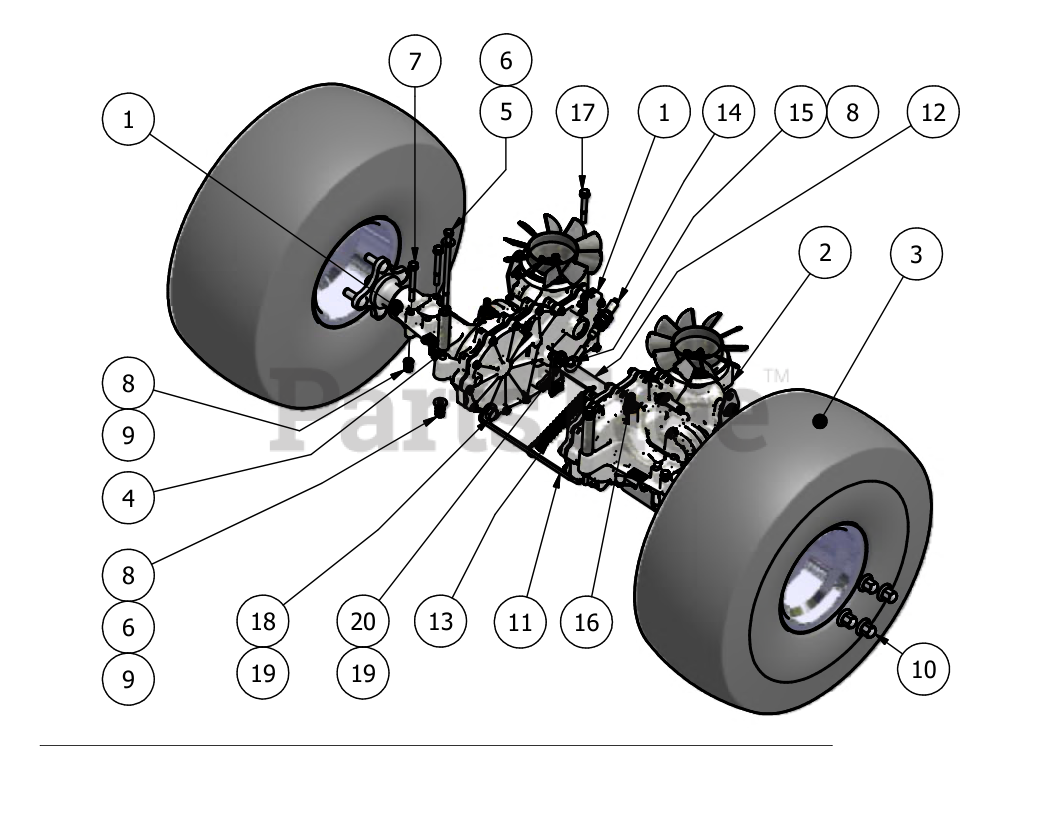

Transaxle Parts Diagram

  • Title

1

Bad Boy 050-2081-00

Axle-Left

$

$

Not available

2

Bad Boy 050-2080-00

Axle-Right

$

$

Not available

3

Bad Boy 022-6000-00

Tire and Rim

$164.99

$

Usually ships in 4-7 days

0

4

Bad Boy 025-5340-00

3 1/4" Transaxle Spacer

$9.49

$

Usually ships in 4-7 days

0

5

Bad Boy 018-5355-00

5/16" x 6" Hex Bolt

$2.99

$

In Stock, only 3 left!

0

6

Bad Boy 019-8051-00

5/16 Lock Washer

$0.99

$

In Stock, only 2 left!

0

7

Bad Boy 018-4701-00

5/16" x 3" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

8

Bad Boy 013-8043-00

5/16 Hex Nut

$0.99

$

In Stock, only 2 left!

0

9

Bad Boy 019-8044-00

5/16" Flat Washer

$0.99

$

In Stock, Qty 20+

0

10

Bad Boy 013-3000-00

1/2" Acorn Lug Nut

$3.49

$

In Stock, Qty 20+

0

11

Bad Boy 039-0053-00

Crossover Brake Bracket

$15.99

$

Usually ships in 4-7 days

0

12

Bad Boy 028-4801-00

Crossover Bar

$29.99

$

Usually ships in 4-7 days

0

13

Bad Boy 034-9000-00

Spring

$16.99

$

In Stock, Qty 5

0

14

Bad Boy 064-8055-00

Brake Cable

$54.99

$

In Stock, only 2 left!

0

15

Bad Boy 018-8063-00

5/16" x 3/4" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

16

Bad Boy 024-1200-00

45 degree fitting

$21.99

$

Usually ships in 4-7 days

0

17

Bad Boy 018-5344-00

5/16" x 2 1/2" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

18

Bad Boy 018-3000-00

3/8" x 2" Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

19

Bad Boy 013-5041-00

3/8" Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

20

Bad Boy 018-6049-00

3/8" x 1" Hex Bolt

$0.99

$

In Stock, Qty 13

0
