ZT - Bad Boy Zero-Turn Mower (2009) 36" Deck Parts Diagram

Zero-Turn Mower

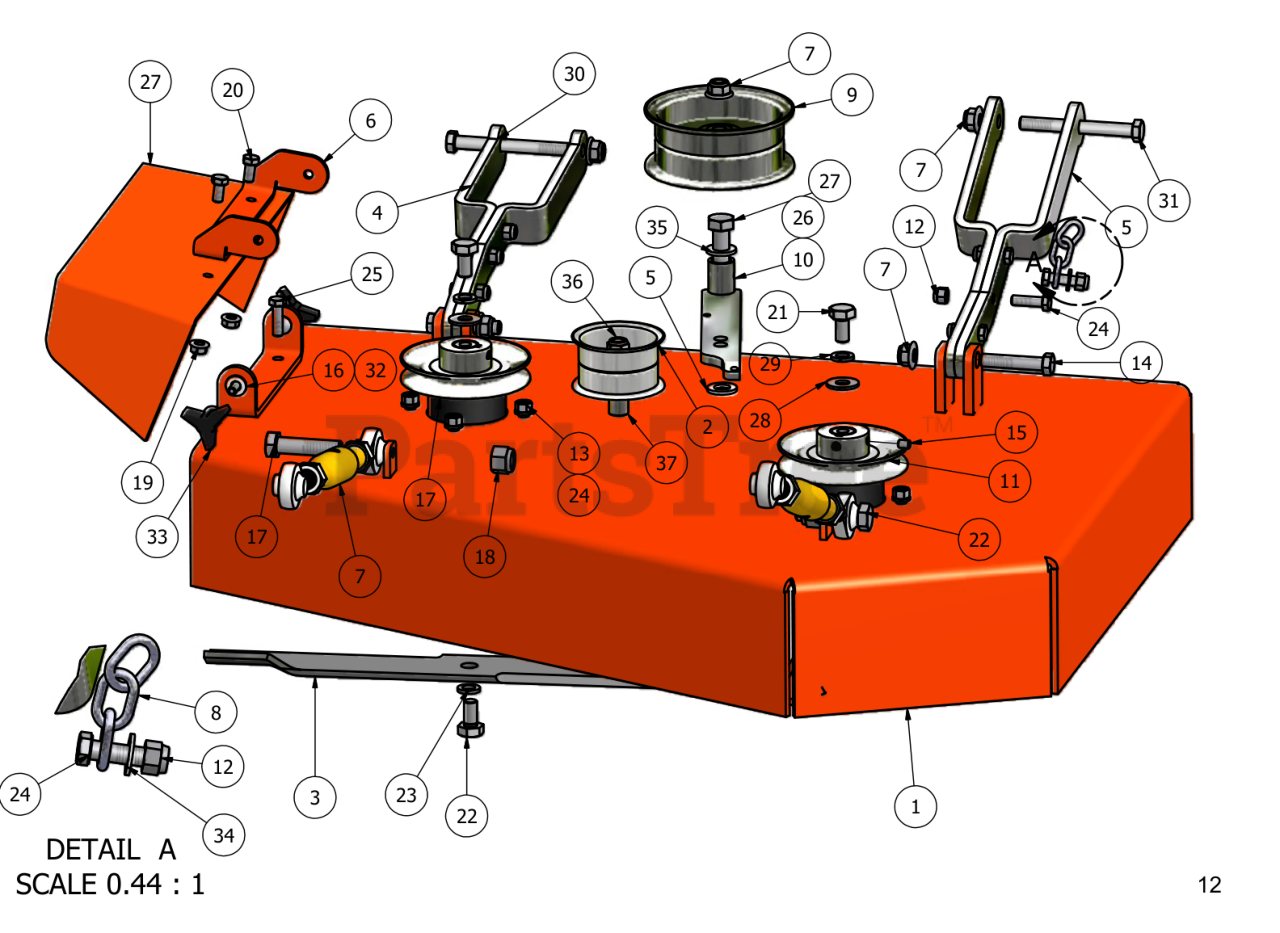

36" Deck Parts Diagram

  • Title

1

Bad Boy 060-3500-00

36" Inch ZT Deck

$

$

Currently unavailable

2

Bad Boy 033-4000-00

36" ZT Idler Pulley

$45.99

$

Usually ships in 4-7 days

0

3

Bad Boy 038-3010-00

36" Fusion Blade

$24.99

$

In Stock, Qty 20+

0

4

Bad Boy 031-6000-00

Deck Support Arm (Left)

$

$

Not available

5

Bad Boy 031-6000-00

Deck Support Arm (Rigth)

$

$

Not available

6

Bad Boy 039-4860-00

Discharge Chute Bracket

$

$

Currently unavailable

7

Bad Boy 048-6056-00

Turnbuckle

$56.99

$

Usually ships in 4-7 days

0

8

Bad Boy 047-6047-00

3" Chain

$3.49

$

Usually ships in 4-7 days

0

9

Bad Boy 033-5001-00

5 3/4" Flat Idler Pulley

$67.99

$

Usually ships in 4-7 days

0

10

Bad Boy 039-6936-00

Deck Idler Arm

$42.99

$

Usually ships in 4-7 days

0

11

Bad Boy 033-6003-00

5" Deck Pulley

$45.99

$

In Stock, only 2 left!

0

12

Bad Boy 013-5041-00

3/8 Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

13

Bad Boy 013-6014-00

3/8" Hex Bolt

$0.99

$

In Stock, only 4 left!

0

14

Bad Boy 018-6036-00

1/2"x2 1/2" Hex Bolt

$1.99

$

In Stock, only 2 left!

0

15

Bad Boy 030-6029-00

3/8" Set Screw

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

17

Bad Boy 018-6059-00

5/8" x 2 1/2" Hex Bolt

$2.99

$

In Stock, only 2 left!

0

18

Bad Boy 013-7021-00

5/8" Nylock Nut

$1.49

$

In Stock, only 2 left!

0

19

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

20

Bad Boy 018-5250-00

3/8" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

21

Bad Boy 018-5006-00

1/2"x 1 1/2" Fine Threaded Bolt

$1.49

$

Usually ships in 4-7 days

0

22

Bad Boy 018-6021-00

5/8" x 1 1/2" Fine Threaded Bolt

$

$

Not available

23

Bad Boy 019-4807-00

5/8" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

24

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

25

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 9

0

26

Bad Boy 032-6033-00

5/8" ID x 1 1/8" Brass Bushing

$3.99

$

In Stock, only 2 left!

0

27

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, only 1 left!

0

28

Bad Boy 019-6020-00

1/2" Cup Washer

$5.49

$

In Stock, Qty 20+

0

29

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

30

Bad Boy 019-5010-00

1/2" Brass Bushing

$2.99

$

Usually ships in 4-7 days

0

31

Bad Boy 018-7050-00

1/2"x4 1/2" Bolt

$2.99

$

In Stock, Qty 9

0

32

Bad Boy 018-8065-00

5/16"x 1" Carriage Bolt

$0.99

$

In Stock, only 1 left!

0

33

Bad Boy 045-6043-00

5/16" Knob

$4.99

$

In Stock, Qty 8

0

34

Bad Boy 019-5050-00

3/8" Washer

$1.99

$

Usually ships in 4-7 days

0

35

Bad Boy 019-6017-00

.635 Nylon Washer

$0.99

$

In Stock, only 4 left!

0

36

Bad Boy 013-8050-00

1/2" Flange Lock Nut

$1.99

$

In Stock, Qty 20+

0

35

Bad Boy 047-6047-00

3" Chain Assembly

$3.49

$

Usually ships in 4-7 days

0

36

Bad Boy 019-5050-00

3/8" Fiber Washer

$1.99

$

Usually ships in 4-7 days

0

37

Bad Boy 025-5000-00

2.313 Spacer

$7.99

$

Usually ships in 4-7 days

0
