ZT - Bad Boy Zero-Turn Mower (2009) Actuator Bar Parts Diagram

Zero-Turn Mower

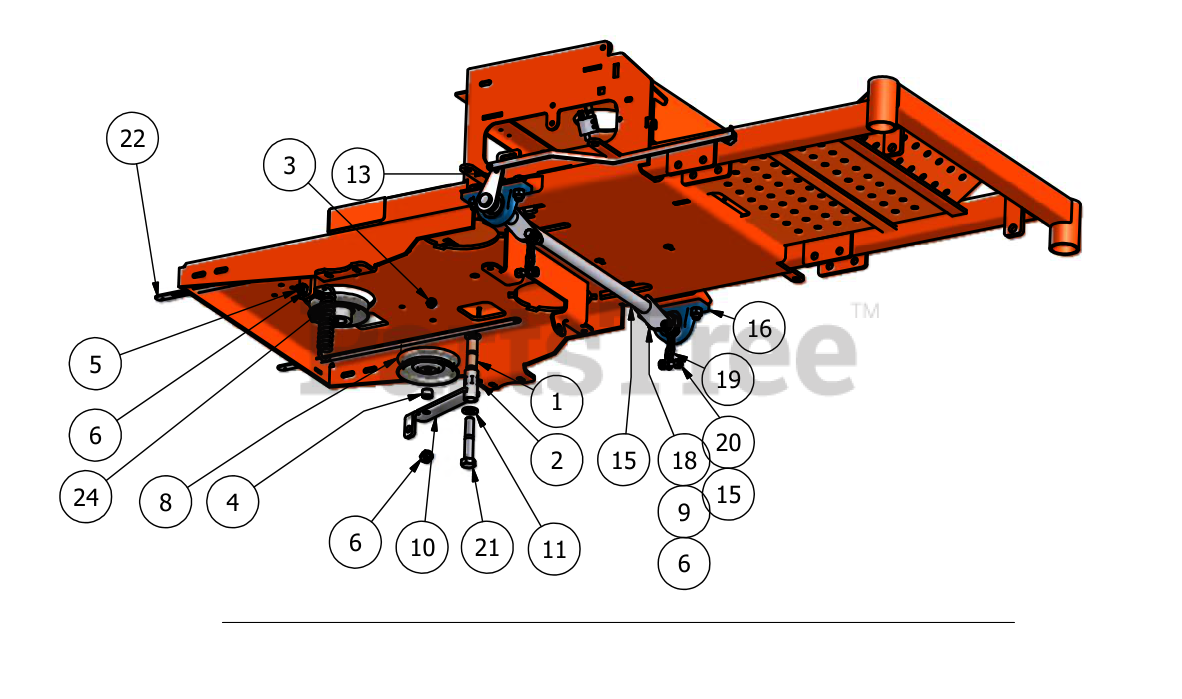

Actuator Bar Parts Diagram

  • Title

1

Bad Boy 032-6033-00

Bronze Bushing

$3.99

$

In Stock, only 2 left!

0

2

Bad Boy 024-6034-00

Grease Fitting

$0.99

$

In Stock, only 2 left!

0

3

Bad Boy 018-5049-00

1/2" x 2" Bolt

$1.49

$

Usually ships in 4-7 days

0

4

Bad Boy 025-7036-00

1/2" Spacer

$4.99

$

In Stock, only 2 left!

0

5

Bad Boy 018-2004-00

Spring Tensioner

$13.99

$

In Stock, only 4 left!

0

6

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

7

Bad Boy 034-5039-00

Pump Idler Spring

$

$

Not available

8

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

9

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

10

Bad Boy 039-5944-00

Pump Idler Bracket

$45.99

$

In Stock, Qty 5

0

11

Bad Boy 019-6017-00

5/8" Nylon Washer

$0.99

$

In Stock, only 4 left!

0

12

Bad Boy 013-7021-00

5/8" Nylock Nut

$1.49

$

In Stock, only 2 left!

0

13

Bad Boy 031-7000-00

Height Indicator Lever

$

$

Not available

14

Bad Boy 028-4020-00

Actuator Bar - Transaxle

$70.99

$

Usually ships in 4-7 days

0

15

Bad Boy 013-5041-00

3/8" Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

16

Bad Boy 017-7008-00

Pillow Block Bearing

$22.99

$

Usually ships in 4-7 days

0

17

Bad Boy 018-5006-00

1/2" x 1 1/2" Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

18

Bad Boy 047-6047-00

Deck Chain

$3.49

$

Usually ships in 4-7 days

0

19

Bad Boy 018-6012-00

3/8" x 1 1/2" Bolt

$0.99

$

In Stock, Qty 20+

0

20

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, only 1 left!

0
