ZT - Bad Boy Zero-Turn Mower (2009) Seat and Tanks (2) Parts Diagram

Zero-Turn Mower

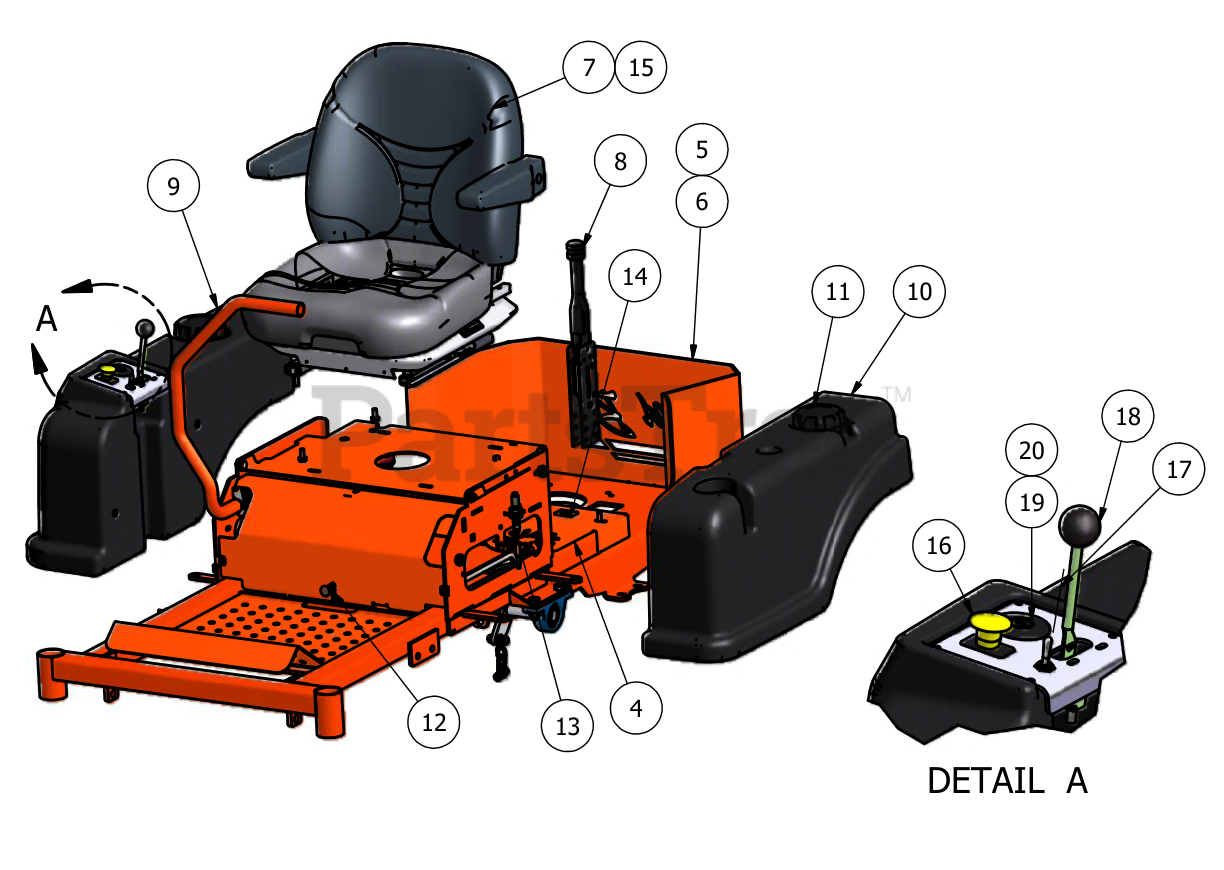

Seat and Tanks (2) Parts Diagram

  • Title

1

Bad Boy 079-3407-00

ZT Floor Panel

$113.99

$

Usually ships in 0 days

0

2

Bad Boy 014-3400-00

Cooler Cover

$

$

Currently unavailable

3

Bad Boy 026-1000-00

Seat Mounting Plate

$

$

Not available

4

Bad Boy 026-0052-00

Fan Cover

$89.99

$

Usually ships in 0 days

0

5

Bad Boy 026-0053-00

ZT Rear Plate 26hp

$226.99

$

Usually ships in 0 days

0

6

Bad Boy 026-0054-00

ZT Rear Plate 23hp

$170.99

$

Usually ships in 0 days

0

7

Bad Boy 071-2010-00

Seat Assembly

$

$

Currently unavailable

8

Bad Boy 069-8054-00

Hand Brake

$136.99

$

Usually ships in 4-7 days

0

9

Bad Boy 067-7000-00

Right Tank

$

$

Not available

10

Bad Boy 067-7001-00

Light Tank

$

$

Not available

11

Bad Boy 066-8076-00

Fuel Cap

$34.99

$

In Stock, only 3 left!

0

12

Bad Boy 054-8017-00

Choke

$27.99

$

In Stock, Qty 20+

0

13

Bad Boy 064-8055-00

Brake Cable

$54.99

$

In Stock, only 2 left!

0

14

Bad Boy 083-4013-00

Tachometer

$79.99

$

In Stock, Qty 20+

0

15

Bad Boy 071-8061-00

Seat Safety Switch

$20.99

$

In Stock, only 2 left!

0

16

Bad Boy 056-8058-00

Pto Engager

$36.99

$

In Stock, Qty 20+

0

17

Bad Boy 078-8077-00

Deck Lift

$45.99

$

Usually ships in 4-7 days

0

18

Bad Boy 055-8020-00

Throttle

$41.99

$

In Stock, Qty 17

0

19

Bad Boy 077-8076-00

Ignition

$22.99

$

In Stock, Qty 20+

0

20

Bad Boy 042-9000-00

Key

$4.49

$

In Stock, Qty 20+

0
