ZT - Bad Boy Zero-Turn Mower (2010) 27hp Kohler Engine & Clutch Parts Diagram
Zero-Turn Mower

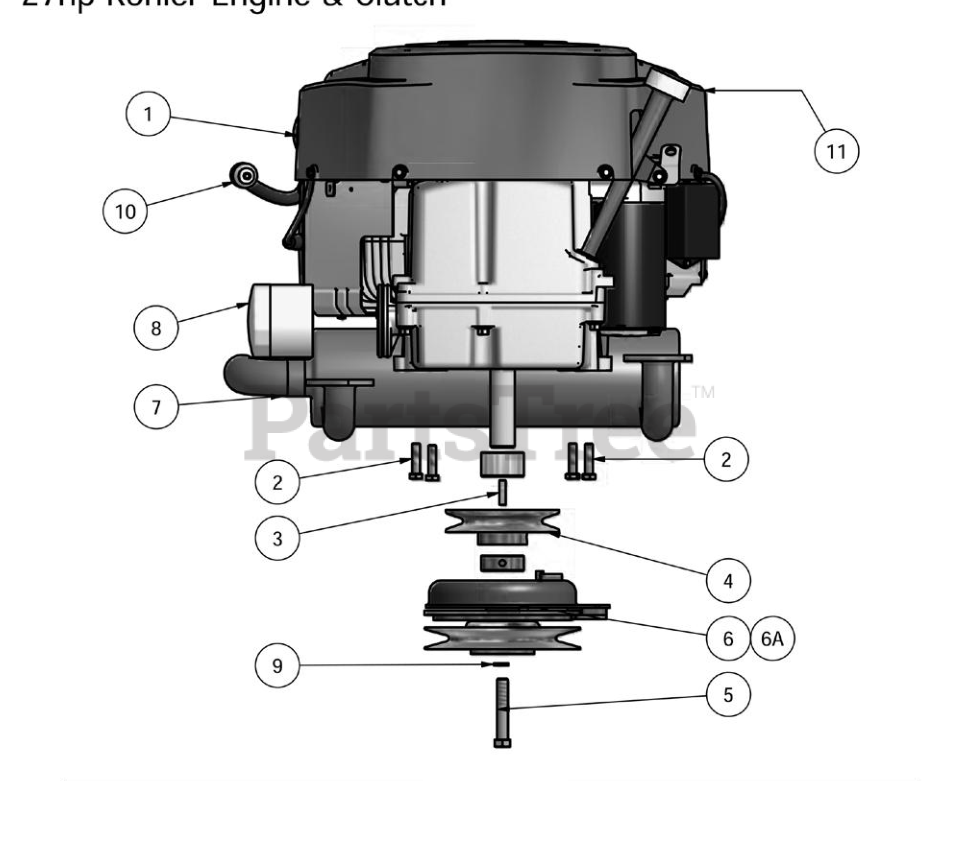

27hp Kohler Engine & Clutch Parts Diagram
Bad Boy 015-2700-00
27HP Kohler Courage
$
$
Currently unavailable
Bad Boy 018-5051-00
3/8" x 1 1/8" Engine Bolt
$
$
Not available
Bad Boy 042-6030-00
1/4" x 1" Key
$4.99
$
In Stock, Qty 7
Bad Boy 033-5035-00
4 3/4" Motor Pulley with Extended Shaft
$45.99
$
In Stock, only 2 left!
Bad Boy 018-5300-00
7/16" x 2 1/2" Hex Bolt
$1.49
$
In Stock, only 2 left!
Bad Boy 070-1000-00
Clutch
$319.99
$
In Stock, Qty 16
Bad Boy 070-2000-00
Clutch Pigtail
$22.99
$
In Stock, Qty 20+
Bad Boy 015-2750-00
27HP Exhaust
$363.99
$
Usually ships in 4-7 days
Bad Boy 063-5400-00
27HP Kohler Oil Filter
$23.99
$
In Stock, Qty 14
Bad Boy 019-8051-00
7/16" Lock Washer
$0.99
$
In Stock, only 2 left!
Bad Boy 015-0200-00
27HP Kohler Fuel Filter
$
$
Not available
Bad Boy 063-8080-00
27Hp Kohler Air Filter with Precleaner
$36.99
$
Usually ships in 4-7 days
