Bad Boy ZT - Bad Boy Zero-Turn Mower (2010) 50" Deck Parts Lookup with Diagrams

1

Bad Boy 041-1470-00

50" Deck Belt

Note: -

$93.99

$

In Stock, only 4 left!

2

Bad Boy 038-5350-00

50" Fusion Blade

Note: -

$24.99

$

In Stock, Qty 20+

3

Bad Boy 060-4800-00

50" Deck

Note: -

$

Not available 

4

Bad Boy 060-4800-00

50" Deck Complete

Note: -

$

Not available 

5

Bad Boy 037-6015-00

Spindle

Note: -

$227.99

$

Usually ships in 4-7 days

6

Bad Boy 014-6004-00

Spindle Cover

Note: -

$45.99

$

Usually ships in 4-7 days

7

Bad Boy 014-4801-00

Spindle Cover (Smaller)

Note: -

$45.99

$

Usually ships in 0 days

8

Bad Boy 039-6936-00

Deck Idler Arm

Note: -

$42.99

$

Usually ships in 4-7 days

9

Bad Boy 206-6017-00

Discharge Chute Hanger (deck mounted)

Note: -

$41.99

$

In Stock, only 2 left!

10

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

Note: -

$0.99

$

In Stock, Qty 9

11

Bad Boy 019-5037-00

3/8" Lock Washer

Note: -

$0.99

$

In Stock, only 2 left!

12

Bad Boy 013-6014-00

3/8" Hex Nut

Note: -

$0.99

$

In Stock, only 4 left!

13

Bad Boy 018-5250-00

3/8" x 3/4" Hex Bolt

Note: -

$0.99

$

In Stock, only 2 left!

14

Bad Boy 013-5201-00

3/8" Flange Nut

Note: -

$1.99

$

In Stock, Qty 20+

15

Bad Boy 019-6017-00

.635 ID Plastic Washer

Note: -

$0.99

$

In Stock, only 4 left!

16

Bad Boy 025-5338-00

Pup Pulley Spacer

Note: -

$3.99

$

In Stock, only 2 left!

17

Bad Boy 033-6001-00

4 3/4" Idler Pulley

Note: -

$33.99

$

In Stock, Qty 20+

18

Bad Boy 033-6003-00

5" Deck Pulley

Note: -

$45.99

$

In Stock, only 2 left!

19

Bad Boy 019-6019-00

Cup Washer

Note: -

$9.99

$

Usually ships in 4-7 days

20

Bad Boy 033-5001-00

5 3/4" Deck Idler Pulley

Note: -

$67.99

$

Usually ships in 4-7 days

21

Bad Boy 018-6036-00

1/2" x 2 1/2" Hex Bolt

Note: -

$1.99

$

In Stock, only 2 left!

22

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

Note: -

$4.49

$

In Stock, only 1 left!

23

Bad Boy 018-6059-00

5/8" x 2 1/2" Hex Bolt

Note: -

$2.99

$

In Stock, only 2 left!

24

Bad Boy 013-7021-00

5/8" Nylock Nut

Note: -

$1.49

$

In Stock, only 2 left!

25

Bad Boy 013-9002-00

5/16" Flange Nut

Note: -

$0.99

$

In Stock, only 1 left!

26

Bad Boy 039-4864-00

60" Upper Hanger Plate

Note: -

$45.99

$

Usually ships in 4-7 days

27

Bad Boy 018-4703-00

5/16" x 1 1/4" Carriage Bolt

Note: -

$0.99

$

In Stock, only 3 left!

28

Bad Boy 210-6005-00

Rubber Discharge Chute

Note: -

$63.99

$

In Stock, only 2 left!

29

Bad Boy 019-6042-00

.360 ID Plastic Washer

Note: -

$0.99

$

In Stock, only 1 left!

30

Bad Boy 018-5015-00

5/16" x 1" Hex Bolt

Note: -

$1.49

$

Usually ships in 4-7 days

31

Bad Boy 013-5041-00

3/8 Nylock Nut

Note: -

$0.99

$

Usually ships in 4-7 days

32

Bad Boy 022-5234-00

Anti-Scalp Rollers

Note: -

$

Not available 

33

Bad Boy 022-5234-98

Deck Wheel Assembly

Note: -

$20.99

$

Usually ships in 4-7 days

34

Bad Boy 013-5300-00

1/2" Flange Nut

Note: -

$0.99

$

In Stock, Qty 6

35

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

Note: -

$1.99

$

In Stock, Qty 20+

36

Bad Boy 018-5019-00

1/2" x 4" Bolt (Grade 8)

Note: -

$4.99

$

In Stock, only 2 left!

37

Bad Boy 019-4807-00

5/8" Lock Washer

Note: -

$0.99

$

Usually ships in 4-7 days

38

Bad Boy 018-6020-00

Heavy Hex Bolt

Note: -

$2.99

$

In Stock, Qty 20+

39

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

Note: -

$1.49

$

In Stock, only 2 left!

40

Bad Boy 045-6043-00

5/16" Knob

Note: -

$4.99

$

In Stock, Qty 8

41

Bad Boy 032-6033-00

5/8" x 1 1/8" Brass Bushing

Note: -

$3.99

$

In Stock, only 2 left!

42

Bad Boy 024-6034-00

1/4" Drive in Grease Fitting

Note: -

$0.99

$

In Stock, only 2 left!

43

Bad Boy 025-5337-00

1 1/4" Pulley Spacer

Note: -

$4.99

$

In Stock, only 2 left!

44

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

Note: -

$1.99

$

In Stock, only 3 left!

45

Bad Boy 019-5029-00

3/8" Flat Washer

Note: -

$0.99

$

In Stock, only 2 left!

46

Bad Boy 018-6019-00

1/2"-20 x 1 1/2 - Grade 5 Fine Thread Bolt

Note: -

$1.49

$

In Stock, Qty 6

47

Bad Boy 025-5339-00

1 3/4" Pulley Spacer

Note: -

$5.99

$

In Stock, only 2 left!

48

Bad Boy 013-6058-00

3/4" Left Handed Nut

Note: -

$3.99

$

Usually ships in 4-7 days

49

Bad Boy 048-6056-00

Turnbuckle

Note: -

$56.99

$

Usually ships in 4-7 days

50

Bad Boy 034-9035-00

Deck Idler Spring

Note: -

$18.99

$

Usually ships in 4-7 days

51

Bad Boy 031-6000-00

Deck Support Arm

Note: -

$

Not available 

52

Bad Boy 013-6014-00

3/8" Hex Nut

Note: -

$0.99

$

In Stock, only 4 left!

53

Bad Boy 047-6050-00

ZT Deck Hanger Chain Assembly

Note: -

$9.49

$

Usually ships in 4-7 days

54

Bad Boy 018-6012-00

3/8" x 1 1/2" Hex Bolt

Note: -

$0.99

$

In Stock, Qty 20+

55

Bad Boy 042-6030-00

1/4" x 1" Key

Note: -

$4.99

$

In Stock, Qty 7

56

Bad Boy 030-6054-00

Set Screw

Note: -

$

Currently unavailable 

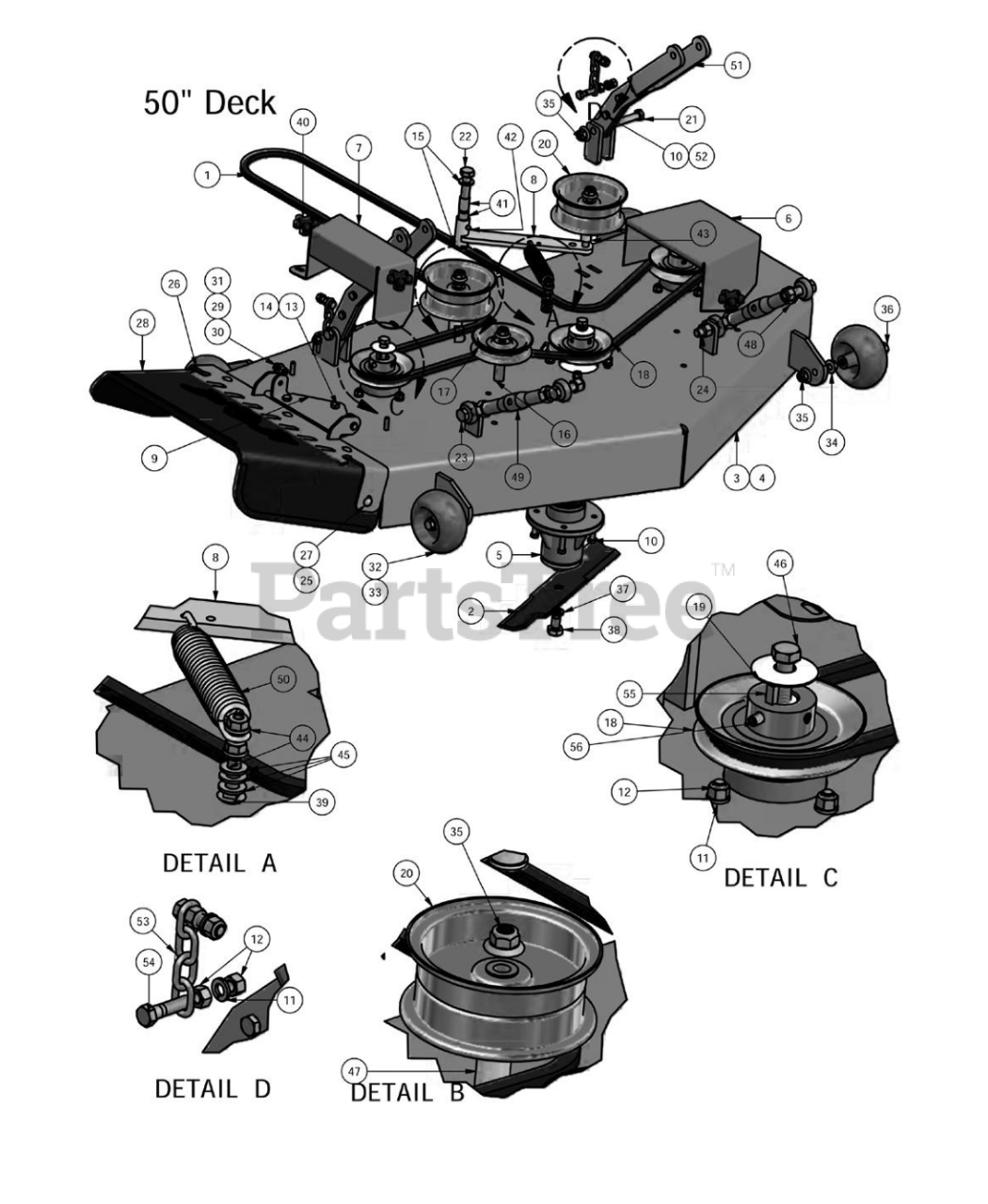

ZT - Bad Boy Zero-Turn Mower (2010) 50" Deck Parts Diagram

50" Deck Parts Diagram
