ZT - Bad Boy Zero-Turn Mower (2010) Actuator Bar Assembly Parts Diagram

Zero-Turn Mower

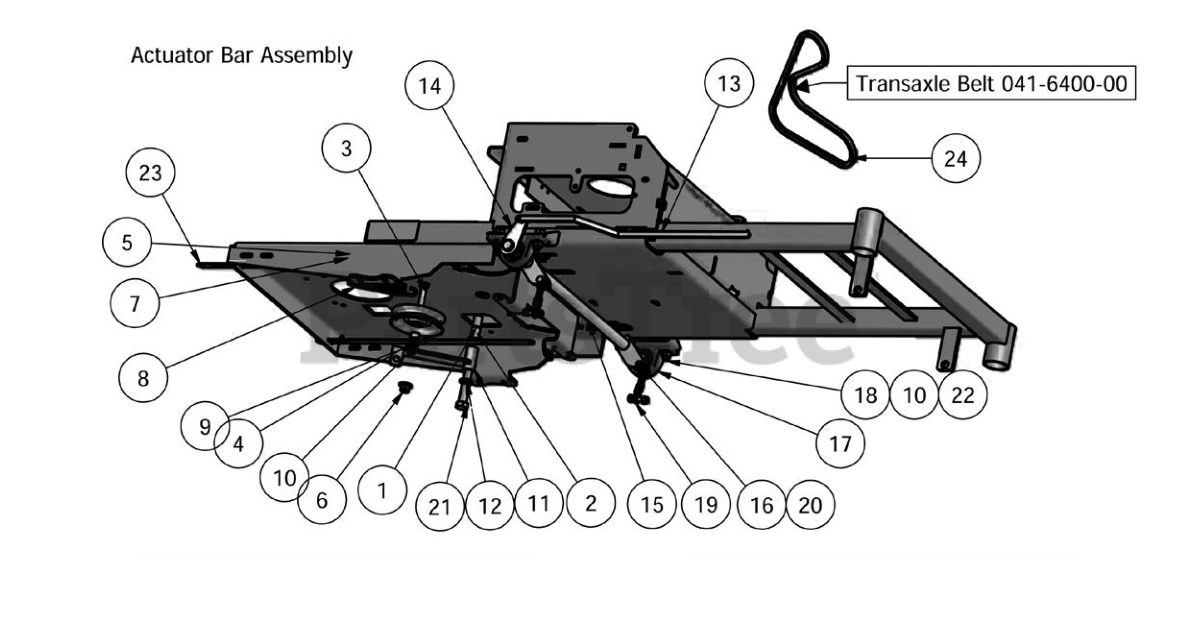

Actuator Bar Assembly Parts Diagram

  • Title

1

Bad Boy 032-6033-00

Bronze Bushing

$3.99

$

In Stock, only 2 left!

0

2

Bad Boy 024-6034-00

Grease Fitting

$0.99

$

In Stock, only 2 left!

0

3

Bad Boy 018-7016-00

1/2-13 x 3" Bolt

$1.99

$

In Stock, Qty 5

0

4

Bad Boy 025-7036-00

1/2" x 1/2" Spacer

$4.99

$

In Stock, only 2 left!

0

5

Bad Boy 018-2004-00

Spring Tensioner

$13.99

$

In Stock, only 4 left!

0

6

Bad Boy 013-8050-00

1/2" Flange Lock Nut

$1.99

$

In Stock, Qty 20+

0

7

Bad Boy 013-7018-00

1/2" Hex Jam Nut

$0.99

$

In Stock, Qty 6

0

8

Bad Boy 034-5039-00

Pump Idler Spring

$

$

Not available

9

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

10

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

11

Bad Boy 039-5944-00

Pump Idler Bracket

$45.99

$

In Stock, Qty 5

0

12

Bad Boy 019-6017-00

5/8" Nylon Washer

$0.99

$

In Stock, only 4 left!

0

13

Bad Boy 028-2502-00

Height Indicator Bar

$24.99

$

Usually ships in 0 days

0

14

Bad Boy 031-7000-00

Height Indicator Lever

$

$

Not available

15

Bad Boy 028-4020-00

Actuator Bar

$70.99

$

Usually ships in 4-7 days

0

16

Bad Boy 013-5041-00

3/8" Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

17

Bad Boy 017-7008-00

Pillow Block Bearing

$22.99

$

Usually ships in 4-7 days

0

18

Bad Boy 018-5006-00

1/2" x 1 1/2" Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

19

Bad Boy 047-6050-00

ZT Deck Hanger Assembly

$9.49

$

Usually ships in 4-7 days

0

20

Bad Boy 018-6047-00

3/8" x 1 1/2" Bolt

$

$

Currently unavailable

21

Bad Boy 018-5311-00

5/8" x 4" Bolt

$4.49

$

In Stock, only 1 left!

0

22

Bad Boy 013-6037-00

1/2" Nylock Hex Nut

$1.49

$

Usually ships in 4-7 days

0

23

Bad Boy 031-0052-00

Transaxle Neutral Lever

$12.99

$

Usually ships in 4-7 days

0

24

Bad Boy 041-6400-00

Transaxle Pump Belt

$62.99

$

In Stock, Qty 20+

0
