ZT - Bad Boy Zero-Turn Mower (2010) Engine /Clutch Parts Diagram

Zero-Turn Mower

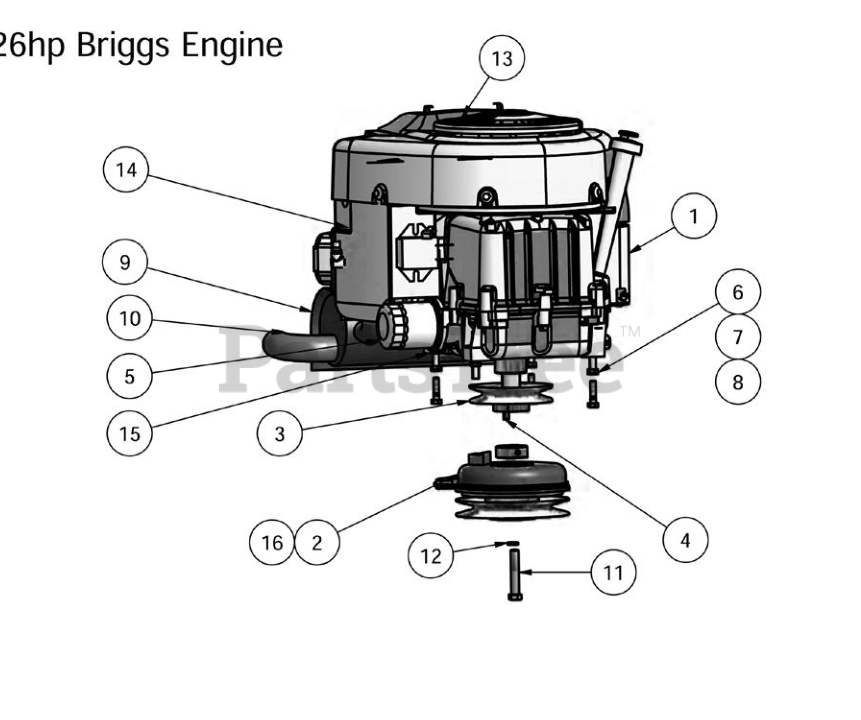

Engine /Clutch Parts Diagram

  • Title

1

Bad Boy 015-0026-00

26 HP Briggs Intek

$

$

Currently unavailable

2

Bad Boy 070-1000-00

Clutch

$319.99

$

In Stock, Qty 16

0

3

Bad Boy 033-5035-00

4 3/4" Motor Pulley with Extended Shaft

$45.99

$

In Stock, only 2 left!

0

4

Bad Boy 042-6030-00

1/4" x 1" SquareKey

$4.99

$

In Stock, Qty 7

0

5

Bad Boy 063-2004-00

26 HP Briggs Oil Filter

$

$

Not available

6

Bad Boy 013-8043-00

5/16" Hex Nut

$0.99

$

In Stock, only 2 left!

0

7

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

8

Bad Boy 018-5025-00

5/16" x 1 1/4" Hex Bolt

$

$

Currently unavailable

9

Bad Boy 015-0027-00

26 HP Exhaust Briggs

$233.99

$

Usually ships in 4-7 days

0

10

Bad Boy 015-5400-00

Exhaust Extension

$22.99

$

Usually ships in 4-7 days

0

11

Bad Boy 018-5300-00

7/16" x 2 1/2" Hex Bolt

$1.49

$

In Stock, only 2 left!

0

12

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

13

Bad Boy 063-4000-00

26 HP Briggs Air Filter

$34.99

$

Usually ships in 4-7 days

0

14

Bad Boy 063-6000-00

23 & 26 HP Briggs Fuel Filter

$15.99

$

In Stock, Qty 17

0

15

Bad Boy 015-5401-00

Oil Drain Valve

$56.99

$

Usually ships in 4-7 days

0

16

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0
