ZT - Bad Boy Zero-Turn Mower (2011) Drive Levers Parts Diagram

Zero-Turn Mower

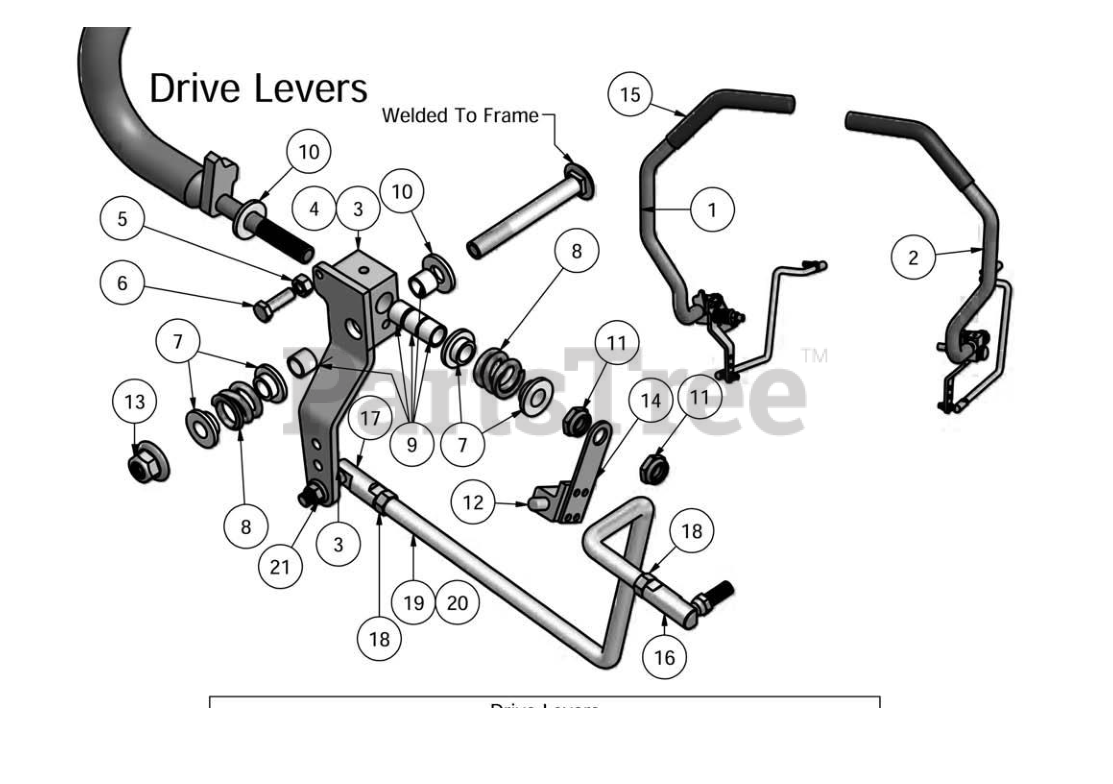

Drive Levers Parts Diagram

  • Title

1

Bad Boy 031-8851-00

Right Drive Lever

$

$

Not available

2

Bad Boy 031-8850-00

Left Drive Lever

$

$

Not available

3

Bad Boy 027-9001-00

Drive Arm Lever Housing - Right

$45.99

$

Usually ships in 4-7 days

0

4

Bad Boy 027-9000-00

Drive Arm Lever Housing - Left

$45.99

$

Usually ships in 4-7 days

0

5

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

6

Bad Boy 013-8063-00

5/16" x 3/4" Bolt

$

$

Currently unavailable

7

Bad Boy 019-8027-00

Nylon Washer .515 ID Shoulder

$0.99

$

In Stock, only 4 left!

0

8

Bad Boy 034-8025-00

Spring

$4.49

$

In Stock, only 2 left!

0

9

Bad Boy 032-8024-00

Nylon Bushing .507 ID

$0.99

$

Usually ships in 4-7 days

0

10

Bad Boy 019-8054-00

.505 Nylon Washer

$0.99

$

In Stock, Qty 10

0

11

Bad Boy 018-4010-00

1/2" Nylock (1/2 Jam)

$1.99

$

In Stock, Qty 8

0

12

Bad Boy 077-8073-00

Electric Saftey Switch

$11.99

$

In Stock, Qty 13

0

13

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

14

Bad Boy 039-0021-00

Switch Bracket

$5.49

$

Usually ships in 0 days

0

15

Bad Boy 069-4007-00

Rubber Grip

$

$

Currently unavailable

16

Bad Boy 099-6046-00

3/8-24 Ball joint (female/male)

$13.99

$

In Stock, only 4 left!

0

17

Bad Boy 099-2009-00

3/8-24 Ball Joint

$10.99

$

In Stock, only 2 left!

0

18

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

19

Bad Boy 035-5400-00

Transaxle Drive Rod (Right)

$32.99

$

Usually ships in 4-7 days

0

20

Bad Boy 035-5401-00

Transaxle Drive Rod (Left)

$32.99

$

Usually ships in 4-7 days

0

21

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, only 1 left!

0
