ZT - Bad Boy Zero-Turn Mower (2011) Front Wheel & Spindle Parts Diagram

Zero-Turn Mower

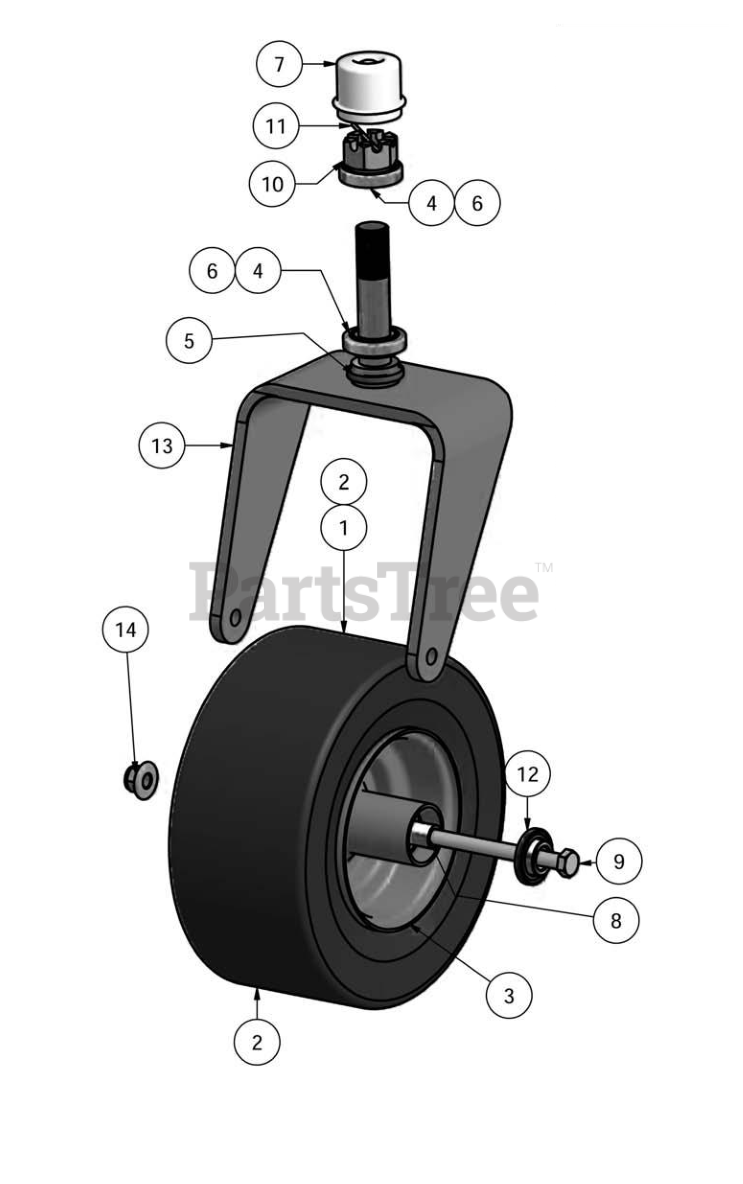

Front Wheel & Spindle Parts Diagram

  • Title

1

Bad Boy 022-2006-00

13 x 6.5-6" Tire and Wheel Assembly

$136.99

$

Usually ships in 4-7 days

0

2

Bad Boy 022-5347-00

13 x 6.5-6" Tire ONLY

$102.99

$

In Stock, only 2 left!

0

3

Bad Boy 022-7002-00

6" Wheel ONLY

$82.99

$

Usually ships in 4-7 days

0

4

Bad Boy 010-7001-00

Bearing

$9.99

$

In Stock, Qty 11

0

5

Bad Boy 012-7003-00

Seal

$10.99

$

In Stock, Qty 6

0

6

Bad Boy 011-7002-00

Race

$4.99

$

Usually ships in 4-7 days

0

7

Bad Boy 014-7005-00

Dust Cover

$9.99

$

In Stock, Qty 18

0

8

Bad Boy 025-5202-00

Wheel Spacer

$10.99

$

In Stock, Qty 13

0

9

Bad Boy 018-7010-00

1/2" x 9" Bolt

$6.49

$

In Stock, only 2 left!

0

10

Bad Boy 013-7004-00

1" Fine Threaded

$8.99

$

Usually ships in 4-7 days

0

11

Bad Boy 020-7022-00

Cotter Pin

$0.99

$

In Stock, only 2 left!

0

12

Bad Boy 022-7009-00

Wheel Bearing

$14.99

$

In Stock, Qty 20+

0

13

Bad Boy 023-7913-00

Front Fork with Spindle

$148.99

$

In Stock, only 3 left!

0

14

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0
