ZT - Bad Boy Zero-Turn Mower (2012) Briggs 27 Hp Parts Diagram

Zero-Turn Mower

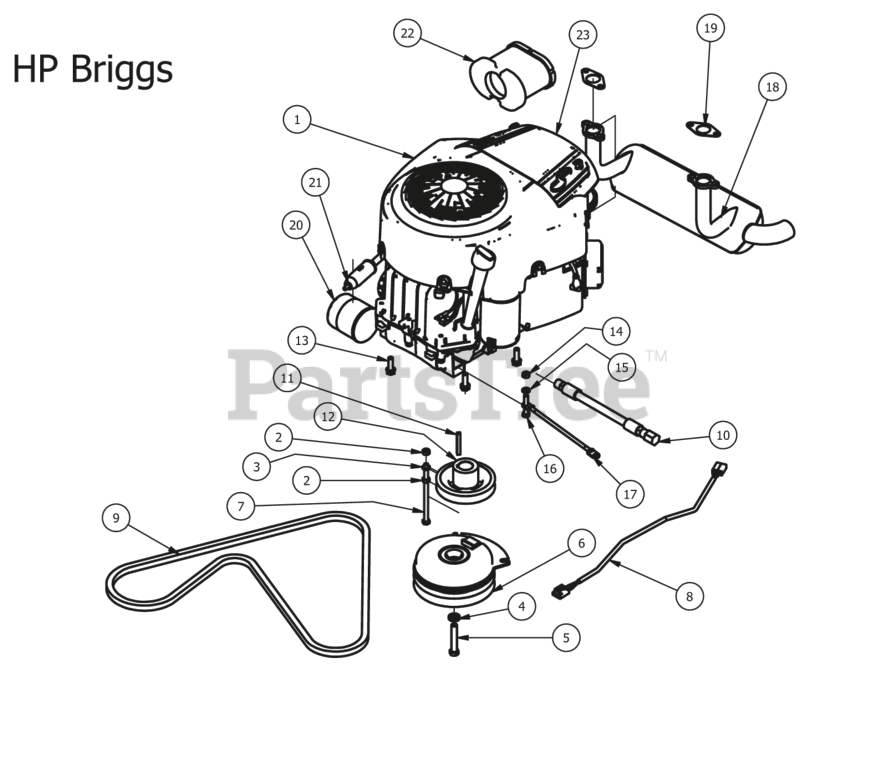

Briggs 27 Hp Parts Diagram

  • Title

1

Bad Boy 015-3051-00

27Hp Briggs Engine Pro Series

$

$

Currently unavailable

2

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

3

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

4

Bad Boy 019-8053-00

7/16" Lock Washer

$3.49

$

Usually ships in 4-7 days

0

5

Bad Boy 018-5300-00

7/16" x 2 1/2" Hex Bolt

$1.49

$

In Stock, only 2 left!

0

6

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 16

0

7

Bad Boy 018-5350-00

5/16-18 x 5-1/2 GR 5 Hex Bolt

$2.49

$

In Stock, only 2 left!

0

8

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

9

Bad Boy 041-6400-00

Pump Belt

$62.99

$

In Stock, Qty 20+

0

10

Bad Boy 051-5401-00

Oil drain Hose

$33.99

$

In Stock, only 4 left!

0

11

Bad Boy 042-5020-00

1/4 x 2 Square key Stock

$3.49

$

In Stock, only 2 left!

0

12

Bad Boy 033-5035-00

4 3/4 Motor Pulley-ZT

$45.99

$

In Stock, only 2 left!

0

13

Bad Boy 018-1075-00

3/8 x 1 1/8 bolt

$1.99

$

In Stock, only 2 left!

0

14

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

15

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 018-8059-00

5/16" x 1 3/4" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

17

Bad Boy 064-8061-00

Ground Cable

$24.99

$

Usually ships in 4-7 days

0

18

Bad Boy 015-0027-00

27 Hp Briggs Exhaust

$233.99

$

Usually ships in 4-7 days

0

19

Bad Boy 015-2751-00

Exhaust Gasket for 27, 30 HP

$6.99

$

In Stock, only 2 left!

0

20

Bad Boy 063-8018-00

Oil Filter

$28.99

$

In Stock, Qty 17

0

21

Bad Boy 063-6000-00

Universal inline Fuel Filter

$15.99

$

In Stock, Qty 17

0

22

Bad Boy 063-4000-00

Air Filter W/Cleaner 26 Int

$34.99

$

Usually ships in 4-7 days

0

23

Bad Boy 015-2702-00

26 & 27 Briggs Air Filter Cover

$90.99

$

Usually ships in 4-7 days

0
