ZT - Bad Boy Zero-Turn Mower (2012) Gas Tanks and Control Panel Assembly Parts Diagram

Zero-Turn Mower

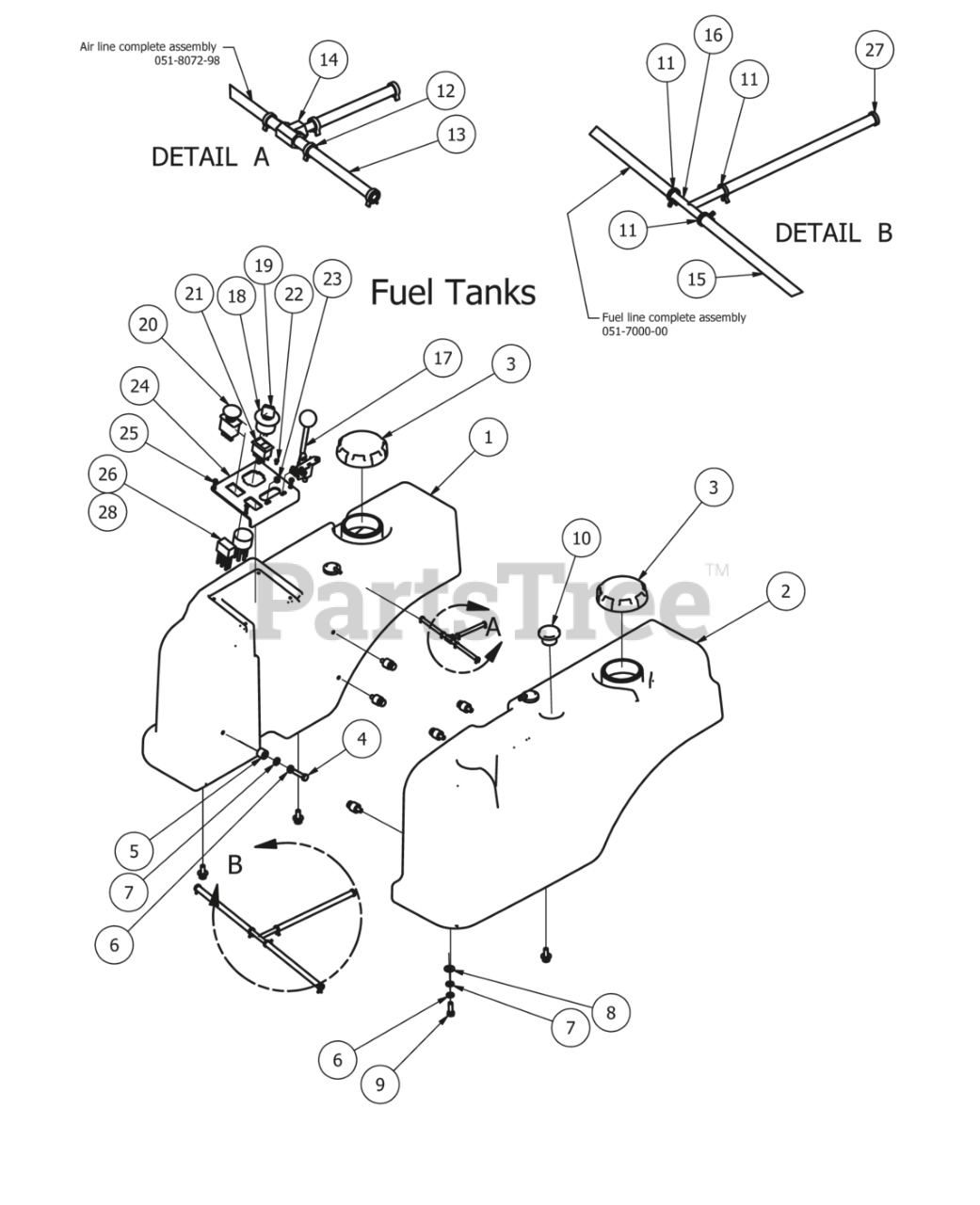

Gas Tanks and Control Panel Assembly Parts Diagram

  • Title

1

Bad Boy 067-7000-11

ZT Fuel Tank- Right

$

$

Not available

2

Bad Boy 067-7001-11

ZT Fuel Tank- Left

$

$

Not available

3

Bad Boy 066-8083-00

Fuel Cap

$25.99

$

In Stock, only 3 left!

0

4

Bad Boy 018-2006-00

5/16 x 1 1/4 Hex Bolt

$0.99

$

In Stock, Qty 5

0

5

Bad Boy 025-2000-00

.380x.735x.470 Nylon Spacer

$0.99

$

Usually ships in 4-7 days

0

6

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

7

Bad Boy 019-7040-00

1/4" Flat Washer

$0.99

$

In Stock, Qty 6

0

8

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

9

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 2 left!

0

10

Bad Boy 067-4025-00

Fuel Gauge and Grommet

$58.99

$

Usually ships in 4-7 days

0

11

Bad Boy 072-8069-00

1/4 fuel clamp

$1.49

$

In Stock, only 2 left!

0

12

Bad Boy 072-8072-00

1/4" vinyl hose clamp

$3.49

$

Usually ships in 4-7 days

0

13

Bad Boy 051-8073-00

3/16 vinyl tubing

$3.49

$

In Stock, only 2 left!

0

14

Bad Boy 073-2000-00

Brass fuel line T

$10.99

$

Usually ships in 4-7 days

0

15

Bad Boy 051-8067-00

1/4" fuel line hose

$6.99

$

In Stock, only 3 left!

0

16

Bad Boy 073-8068-00

fuel line T

$10.99

$

Usually ships in 4-7 days

0

17

Bad Boy 055-8020-00

Throttle

$41.99

$

In Stock, Qty 17

0

18

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

19

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

20

Bad Boy 056-8058-00

PTO Engager

$36.99

$

In Stock, Qty 20+

0

21

Bad Boy 078-3000-00

Rocker Deck Lift Switch - 2011 & up

$39.99

$

In Stock, Qty 5

0

22

Bad Boy 018-5200-00

10-24 X 5/8 BS C/S 18-8 SS

$0.99

$

In Stock, Qty 5

0

23

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut

$0.99

$

Usually ships in 4-7 days

0

24

Bad Boy 079-3400-00

Control Panel ZT

$33.99

$

Usually ships in 0 days

0

25

Bad Boy 018-2010-00

10-32 x 3/8" Button Socket Head Bolt

$0.99

$

In Stock, only 4 left!

0

26

Bad Boy 086-3050-00

Wiring Harness ZT only-2008 and up

$

$

Not available

27

Bad Boy 072-8073-00

3/16" Vinyl Hose Clamp

$3.49

$

Usually ships in 4-7 days

0

28

Bad Boy 086-1201-00

Relay Terminal

$26.99

$

In Stock, Qty 7

0
