ZT - Bad Boy Zero-Turn Mower (2012) ZT 50" Chute Assembly Parts Diagram
Zero-Turn Mower

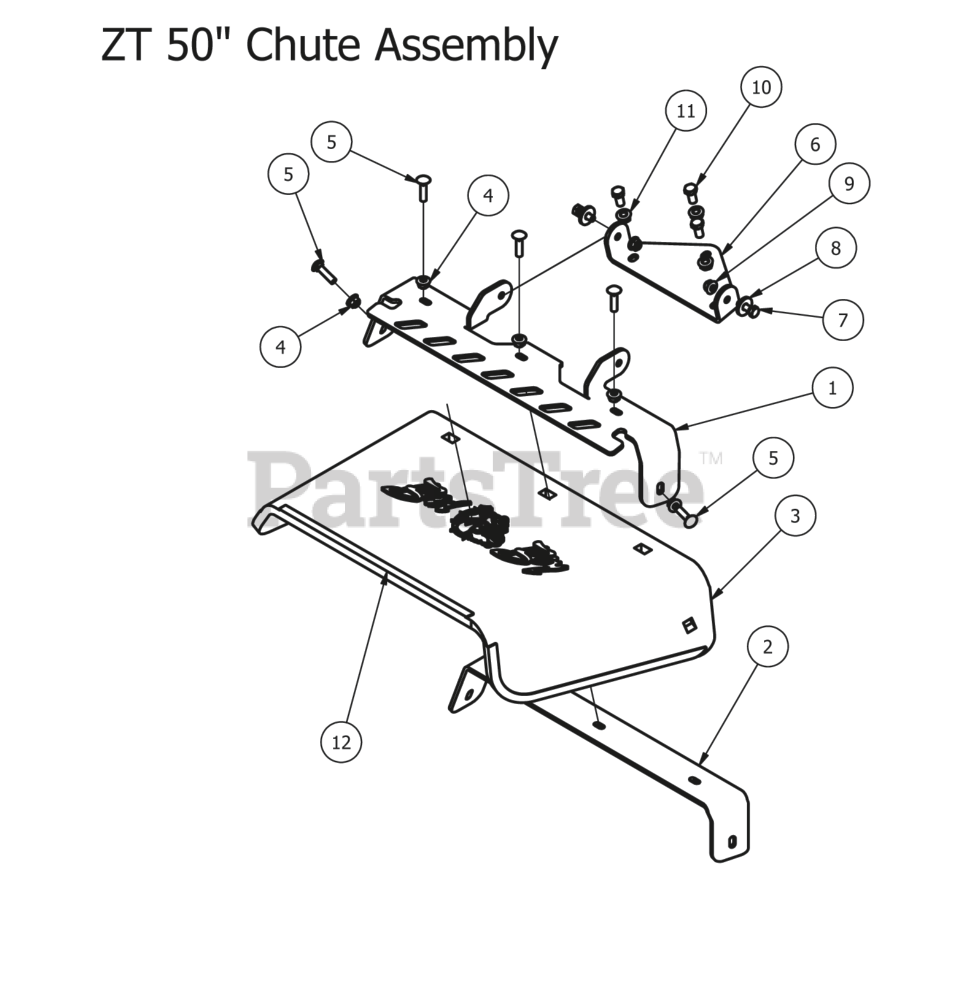

ZT 50" Chute Assembly Parts Diagram
Bad Boy 039-4870-00
Upper Hanger
$45.99
$
Usually ships in 4-7 days
Bad Boy 039-4871-00
Discharge Lower Chute Bracket
$34.99
$
Usually ships in 4-7 days
Bad Boy 210-6005-00
Rubber Discharge Chute Rubber Only
$63.99
$
In Stock, only 2 left!
Bad Boy 013-8049-00
5/16" Nylon Flange Nut
$0.99
$
Usually ships in 4-7 days
Bad Boy 018-4703-00
5/16" x 1 1/4" Carriage Bolt
$0.99
$
In Stock, only 3 left!
Bad Boy 206-6017-00
Discharge Chute Hanger (deck mounted)
$41.99
$
In Stock, only 2 left!
Bad Boy 018-2007-00
5/16" x 1" Bolt
$0.99
$
In Stock, only 2 left!
Bad Boy 019-6042-00
.360 ID Plastic Washer
$0.99
$
Usually ships in 4-7 days
Bad Boy 013-8049-00
5/16" Nylon Flange Nut
$0.99
$
Usually ships in 4-7 days
Bad Boy 018-5250-00
3/8" x 3/4" Hex Bolt
$0.99
$
In Stock, only 2 left!
Bad Boy 013-5201-00
3/8" Flange Nut
$1.99
$
In Stock, Qty 20+
Bad Boy 210-5218-00
50" Rubber Discharge Chute Assembly Components 1,2,3,4,5
$
$
Not available
