ZT - Bad Boy Zero-Turn Mower (2012) ZT Drive Arm Assembly Parts Diagram

Zero-Turn Mower

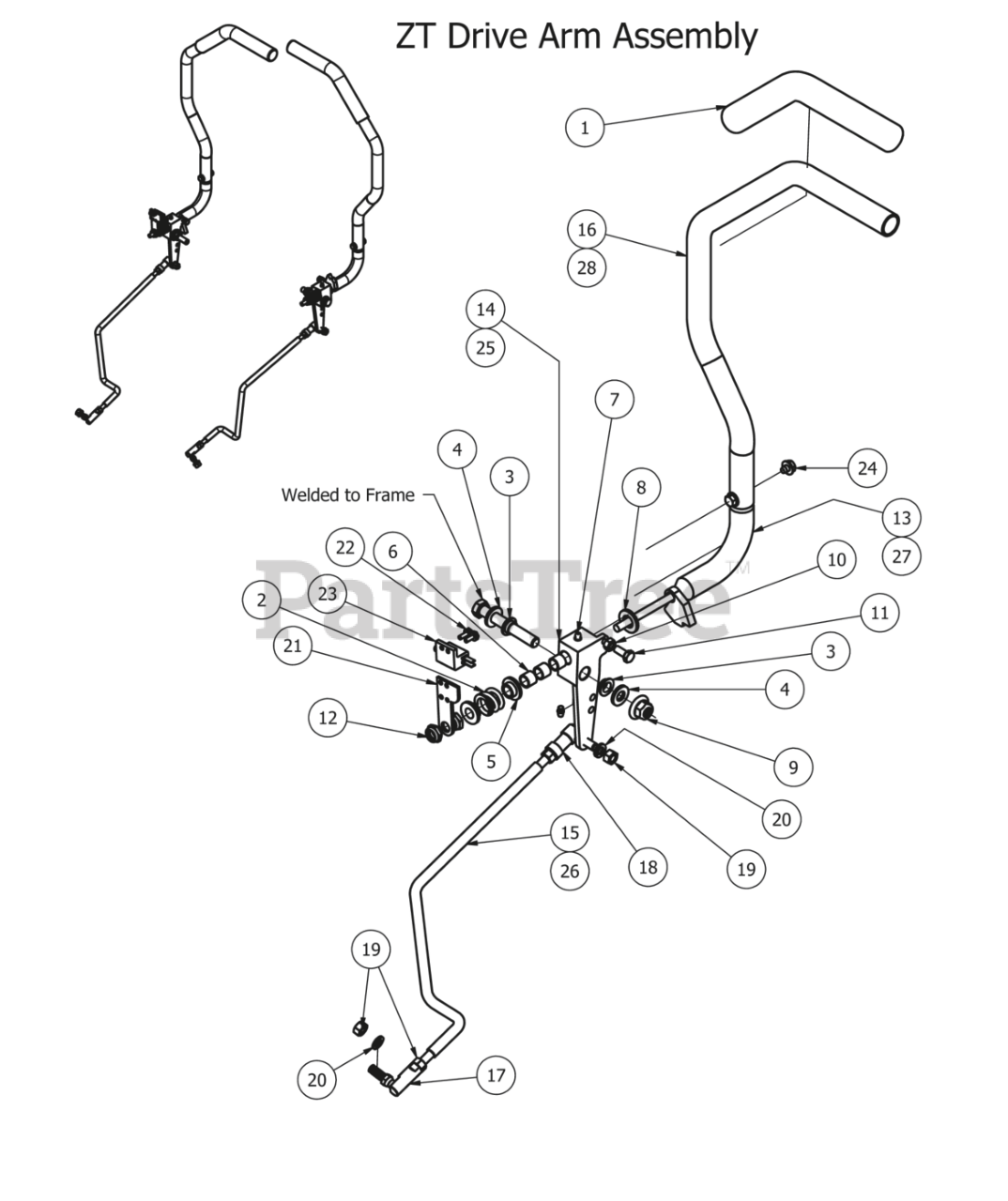

ZT Drive Arm Assembly Parts Diagram

  • Title

1

Bad Boy 069-4007-00

Rubber Grip

$

$

Currently unavailable

2

Bad Boy 034-8025-00

Drive Lever Spring

$4.49

$

In Stock, only 2 left!

0

3

Bad Boy 032-5055-00

Bushing for 2012 Drive Arms

$6.99

$

Usually ships in 4-7 days

0

4

Bad Boy 019-7000-00

.505x1x.125 Oil Impregnated washer

$5.49

$

Usually ships in 4-7 days

0

5

Bad Boy 019-8027-00

.515 ID Nylon Shoulder Washer

$0.99

$

In Stock, only 4 left!

0

6

Bad Boy 032-8024-00

.507 ID Nylon Bushing

$0.99

$

Usually ships in 4-7 days

0

7

Bad Boy 024-6034-00

1/4" Drive in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

8

Bad Boy 019-6017-00

.635 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

9

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

10

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 018-8063-00

5/16" x 3/4" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

12

Bad Boy 018-4010-00

1/2" Nylcock Nut (1/2 Jam)

$1.99

$

In Stock, Qty 8

0

13

031-9020-00

Steering Arm Elbow Left

$

$

Not available

14

Bad Boy 027-9000-00

Drive Arm Lever Housing (Left)

$45.99

$

Usually ships in 4-7 days

0

15

Bad Boy 035-5400-00

Transaxle Drive Rod (Right)

$32.99

$

Usually ships in 4-7 days

0

16

Bad Boy 031-8850-00

ZT Direction Steering Arm (Left)

$

$

Not available

17

Bad Boy 099-6046-00

3/8-24 Ball Joint

$13.99

$

In Stock, only 4 left!

0

18

Bad Boy 099-2009-00

3/8-24 Quick Release Ball Joint

$10.99

$

In Stock, only 2 left!

0

19

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

20

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

21

Bad Boy 039-0021-00

Switch Bracket-ZT

$5.49

$

Usually ships in 0 days

0

22

Bad Boy 018-1080-00

12-24x 1/2 HWH Bolt

$2.49

$

Usually ships in 4-7 days

0

23

Bad Boy 077-8073-00

Safety Switch

$11.99

$

In Stock, Qty 13

0

24

Bad Boy 018-2020-00

5/16-18 1/2 HWH Bolt-Steering

$1.99

$

In Stock, only 3 left!

0

25

Bad Boy 027-9001-00

ZT Drive Arm Lever Housing (Right)

$45.99

$

Usually ships in 4-7 days

0

26

Bad Boy 035-5401-00

Transaxle Drive Rod (Left)

$32.99

$

Usually ships in 4-7 days

0

27

Bad Boy 031-9025-00

Stering Arm Elbow (Right)

$90.99

$

Usually ships in 4-7 days

0

28

Bad Boy 031-8851-00

ZT Direction Steering arm (Right)

$

$

Not available
