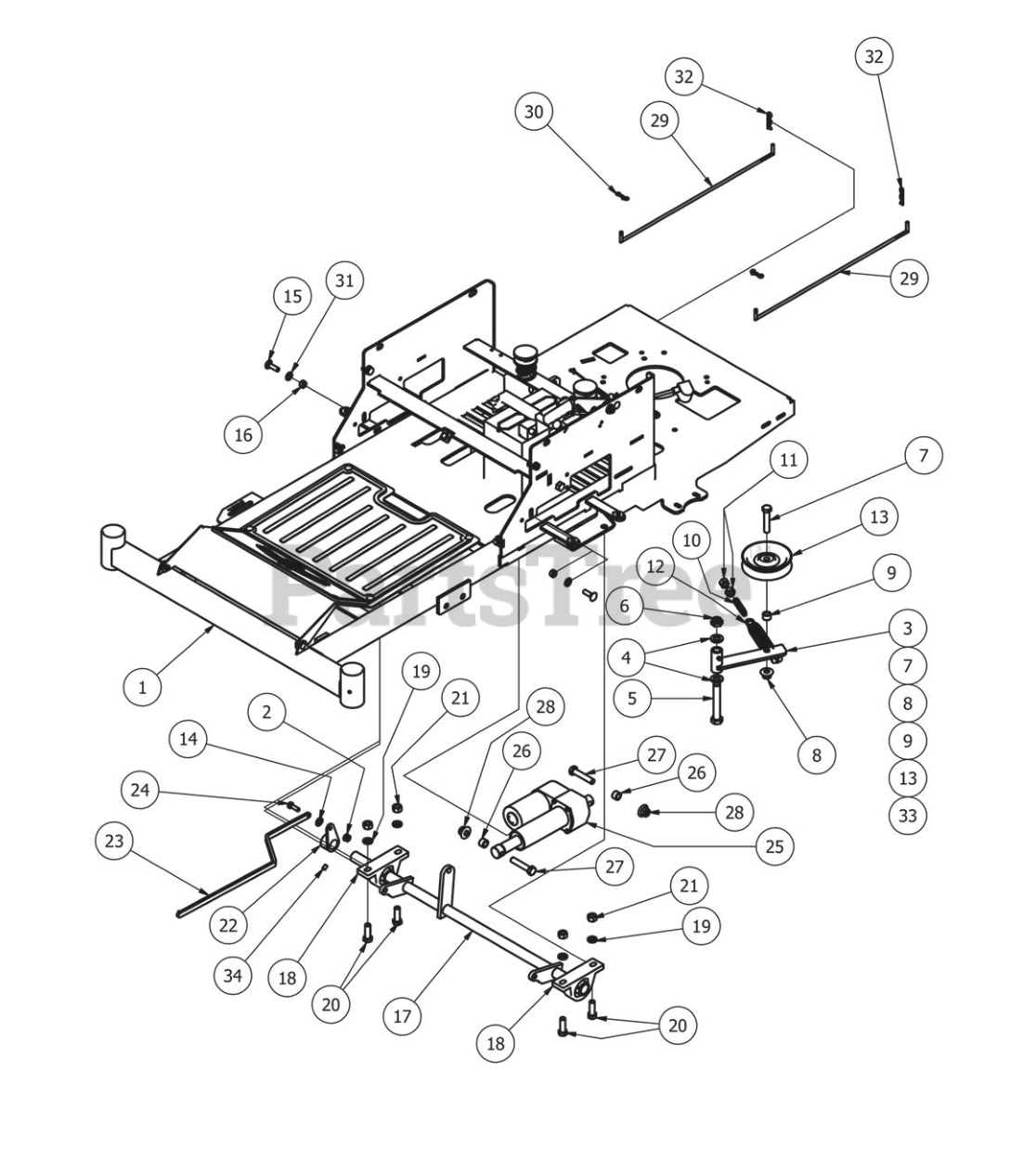

ZT Elite - Bad Boy Zero-Turn Mower (2013) Frame Bottom Assemblies Parts Diagram

Zero-Turn Mower

Frame Bottom Assemblies Parts Diagram

  • Title

1

Bad Boy 070-5410-00

ZT/CZT Frame 2013 Models

$

$

Not available

2

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

3

Bad Boy 039-5944-00

Pump Idler Bracket

$45.99

$

In Stock, Qty 5

0

4

Bad Boy 019-6017-00

.635 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

5

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, only 1 left!

0

6

Bad Boy 013-5301-00

5/8" Nylock (1/2 Jam)

$0.99

$

In Stock, only 2 left!

0

7

Bad Boy 018-6036-00

1/2" x 2 1/2" Hex Bolt

$1.99

$

In Stock, only 2 left!

0

8

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

9

Bad Boy 025-7036-00

1/2 x 1/2 Spacer

$4.99

$

In Stock, only 2 left!

0

10

Bad Boy 018-2004-00

All Thread-pump Idler Tensioner

$13.99

$

In Stock, only 4 left!

0

11

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

12

Bad Boy 034-2009-00

2009 Deck/Pump Idler Spring

$19.99

$

In Stock, Qty 15

0

13

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

14

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

15

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, only 1 left!

0

16

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

17

Bad Boy 028-4020-00

Actuator Bar-Transaxle

$70.99

$

Usually ships in 4-7 days

0

18

Bad Boy 017-7008-00

pillow block 2bolt sealmaster

$22.99

$

Usually ships in 4-7 days

0

19

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

20

Bad Boy 018-5006-00

1/2" x 1 1/2" Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

21

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

22

Bad Boy 031-7000-00

Height Indicator Lever

$

$

Not available

23

Bad Boy 028-2502-00

Height Indicator Bar

$24.99

$

Usually ships in 0 days

0

24

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 2 left!

0

25

Bad Boy 035-7033-00

Actuator

$465.99

$

Usually ships in 4-7 days

0

26

Bad Boy 025-7036-00

1/2 x 1/2 Spacer

$4.99

$

In Stock, only 2 left!

0

27

Bad Boy 018-6036-00

1/2" x 2 1/2" Hex Bolt

$1.99

$

In Stock, only 2 left!

0

28

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

29

Bad Boy 031-0060-00

ZT Neutral level rod 2011

$15.99

$

Usually ships in 4-7 days

0

30

Bad Boy 044-2004-00

Bow Pin

$0.99

$

Usually ships in 4-7 days

0

31

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 1 left!

0

32

Bad Boy 040-2008-00

Neutral Rod Clip

$

$

Currently unavailable

33

Bad Boy 039-5944-98

Pump Idler Assembly (Components 3,7,8,9,13)

$

$

Not available

34

Bad Boy 030-0050-00

5/16 Set Screw

$1.99

$

In Stock, Qty 20+

0
