ZT Elite - Bad Boy Zero-Turn Mower (2013) Frame Top Assemblies Parts Diagram

Zero-Turn Mower

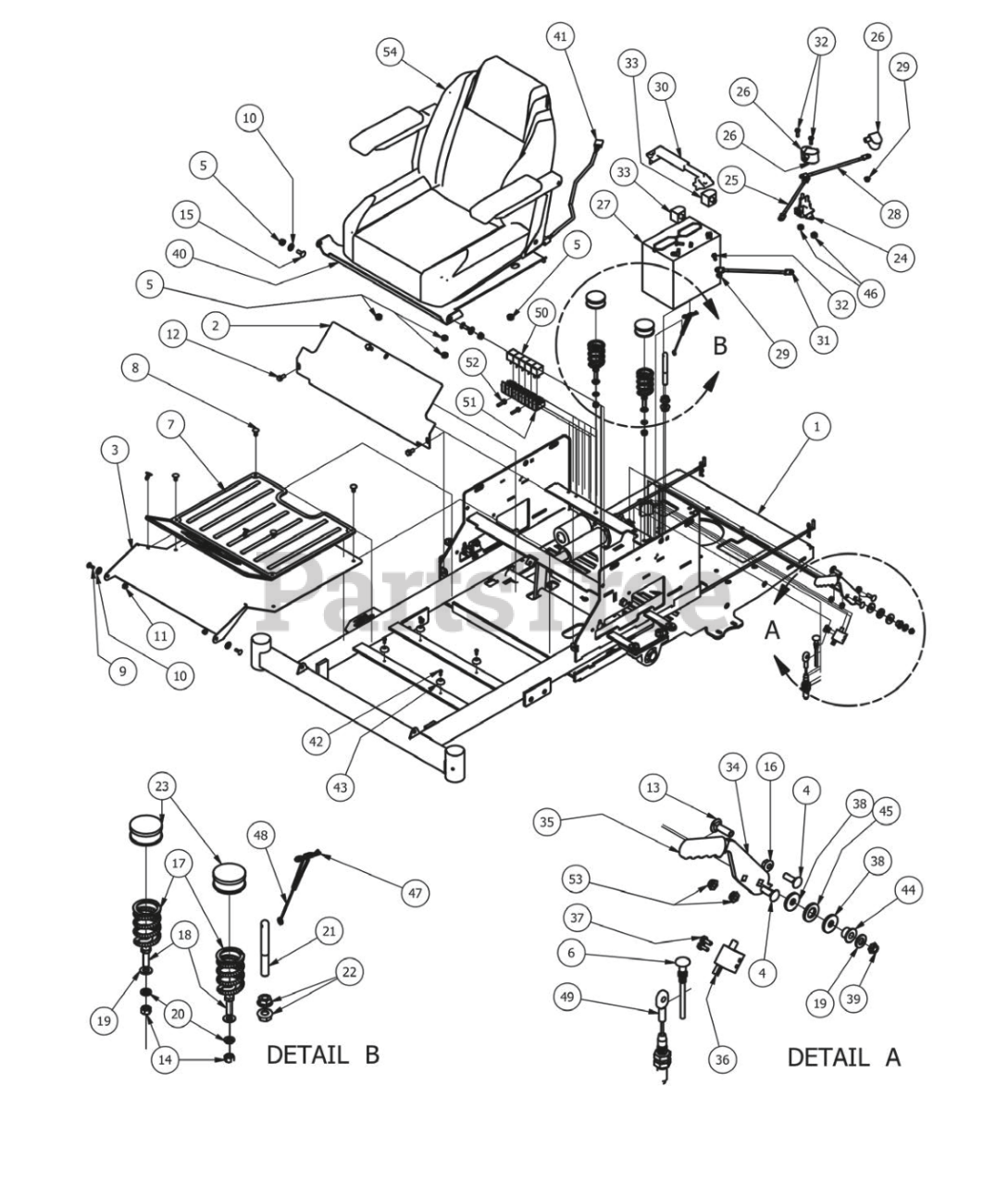

Frame Top Assemblies Parts Diagram

  • Title

1

Bad Boy 070-5410-00

ZT/CZT Frame 2013 Models

$

$

Not available

2

Bad Boy 014-3420-00

2013 ZT/CZT Cooler Cover

$68.99

$

Usually ships in 0 days

0

3

Bad Boy 079-3420-00

ZT/CZT FLOOR PANEL

$

$

Currently unavailable

4

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

$0.99

$

In Stock, only 2 left!

0

5

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

6

Bad Boy 054-8017-00

Choke

$27.99

$

In Stock, Qty 20+

0

7

Bad Boy 081-2010-00

Zt Floorboard Mat

$30.99

$

Usually ships in 4-7 days

0

8

Bad Boy 040-6080-00

Ratchet Fastener

Note:

$3.49

$

In Stock, only 3 left!

0

9

Bad Boy 018-8040-00

1/4" x 3/4" Carriage Bolt

$1.99

$

Usually ships in 4-7 days

0

10

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

11

Bad Boy 013-8073-00

1/4" Nylock Nut

$0.99

$

In Stock, only 2 left!

0

12

Bad Boy 030-7042-00

5/16 x 3/4 washer head type F screw

$1.49

$

Usually ships in 4-7 days

0

13

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, only 2 left!

0

14

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

15

Bad Boy 018-8066-00

5/16" x 7/8" Carriage Bolt

$1.99

$

In Stock, only 2 left!

0

16

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, only 1 left!

0

17

Bad Boy 034-8045-00

Seat Spring

$21.99

$

Usually ships in 4-7 days

0

18

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 9

0

19

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 2 left!

0

20

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

21

Bad Boy 044-4000-00

Seat Braket Pin

$7.99

$

Usually ships in 4-7 days

0

22

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

0

23

Bad Boy 014-8047-00

Spring Cap Cover

$2.49

$

In Stock, only 1 left!

0

24

Bad Boy 108-5349-00

Solenoid

$31.99

$

Usually ships in 4-7 days

0

25

Bad Boy 064-5300-00

24 in red battery cable

$23.99

$

In Stock, only 3 left!

0

26

Bad Boy 103-5300-00

Red Boot

$6.49

$

Usually ships in 4-7 days

0

27

Bad Boy 068-8049-00

ZT Battery

$

$

Not available

28

Bad Boy 064-5301-00

12 in red battery cable

$18.99

$

In Stock, only 2 left!

0

29

Bad Boy 013-9001-00

1/4-20 Hex Flange Nuts Zinc w/Serrations

$0.99

$

In Stock, only 2 left!

0

30

Bad Boy 043-8929-00

Hold Down Assembly

$18.99

$

In Stock, only 1 left!

0

31

Bad Boy 086-0005-00

Starter to chassis cable

$10.99

$

Usually ships in 4-7 days

0

32

Bad Boy 018-8052-00

1/4-20 x 3/4 GR 5 Hex Bolts Zinc

$0.99

$

In Stock, only 2 left!

0

33

Bad Boy 103-5400-00

Black Boot For ground cable

$4.99

$

Usually ships in 4-7 days

0

34

Bad Boy 069-1000-00

Brake Handle Cam Over

$7.99

$

Usually ships in 4-7 days

0

35

Bad Boy 069-7000-00

Rubber Brake Grip-cZT/ZT 2013

$6.99

$

In Stock, only 2 left!

0

36

Bad Boy 077-8073-00

Safety Switch

$11.99

$

In Stock, Qty 13

0

37

Bad Boy 018-1080-00

12-24x 1/2 HWH Bolt

$2.49

$

Usually ships in 4-7 days

0

38

Bad Boy 019-2073-00

.390 ID Plastic Washer

$1.99

$

In Stock, only 3 left!

0

39

Bad Boy 013-9003-00

3/8 Nylock Jam Nut 1/2 Nut

$0.99

$

Usually ships in 4-7 days

0

40

Bad Boy 026-1013-00

2013 ZT Seat Plate

$45.99

$

Usually ships in 4-7 days

0

41

Bad Boy 036-5300-00

Seat Switch Adapter

$16.99

$

Usually ships in 4-7 days

0

42

Bad Boy 030-3050-00

#10 x 1/2" Self Taping Screw

$0.99

$

In Stock, Qty 9

0

43

Bad Boy 029-4010-00

Button Bumper

$1.49

$

Usually ships in 4-7 days

0

44

Bad Boy 032-5053-00

Bronze Bushing SF-1220-8

$3.49

$

In Stock, only 1 left!

0

45

Bad Boy 019-6017-00

.635 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

46

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

47

Bad Boy 040-6060-00

Seat latch pin

$3.49

$

Usually ships in 4-7 days

0

48

Bad Boy 064-1000-00

seat pin lanyard

$5.99

$

Usually ships in 4-7 days

0

49

Bad Boy 064-3000-00

Brake Cable

$56.99

$

In Stock, only 4 left!

0

50

Bad Boy 086-1201-00

Relay Terminal

$26.99

$

In Stock, Qty 7

0

51

Bad Boy 086-3050-00

Harness-ZT Only 2008 and up

$

$

Not available

52

Bad Boy 030-7040-00

1/4 x 1 Hex Head tek screw

$1.49

$

Usually ships in 4-7 days

0

53

Bad Boy 013-9005-00

5/16-18 Nylock Jam Nut 1/2 Nut

$3.49

$

Usually ships in 4-7 days

0

54

Bad Boy 071-2020-00

2013 ZT Seat

$

$

Not available
