ZT Elite - Bad Boy Zero-Turn Mower (2025) DRIVE ARMS Parts Diagram

Zero-Turn Mower

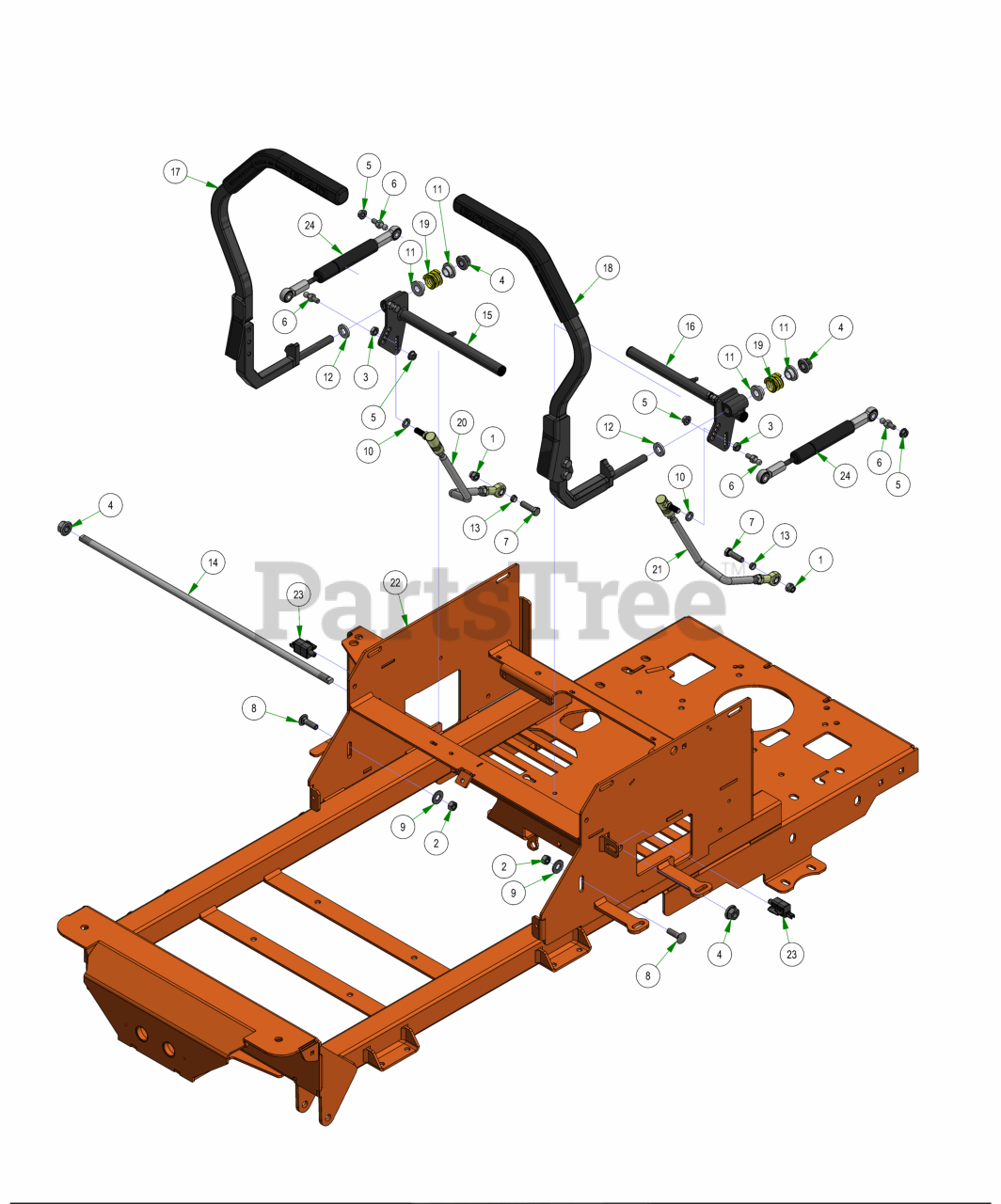

DRIVE ARMS Parts Diagram

  • Title

1

Bad Boy 013-5041-00

3/8-16 NYLON INSERT LOCKNUT ZINC

$0.99

$

Usually ships in 4-7 days

0

2

Bad Boy 013-6014-00

3/8-16 HEX NUT ZINC

$0.99

$

In Stock, only 4 left!

0

3

Bad Boy 013-6051-00

3/8-24 HEX NUT ZINC YELLOW

$0.99

$

In Stock, Qty 20+

0

4

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

5

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 2 left!

0

6

Bad Boy 018-2050-00

10mm Damper Ball Stud-Steering

$2.49

$

In Stock, only 3 left!

0

7

Bad Boy 018-5040-00

3/8-16 X 1-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 9

0

8

Bad Boy 018-5043-00

3/8-16 X 1-1/4 CARRIAGE BOLT ZINC

$1.49

$

Usually ships in 4-7 days

0

9

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, only 1 left!

0

10

Bad Boy 019-5037-00

3/8 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 019-8027-00

.525 ID SHOULDER WASHER NYLON

$0.99

$

In Stock, only 4 left!

0

12

Bad Boy 019-8054-00

.505 ID X 1.000 OD X .125 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 10

0

13

Bad Boy 025-0036-00

Drive Arm Transaxle Spacer

$5.99

$

Usually ships in 4-7 days

0

14

Bad Boy 028-0049-00

2021 Maverick Steering Actuator Rod

$22.99

$

Usually ships in 4-7 days

0

15

Bad Boy 031-0053-21

2021 Maverick Drive Arm Actuator RH Assembly

$45.99

$

Usually ships in 4-7 days

0

16

Bad Boy 031-0054-21

2021 Maverick Drive Arm Actuator LH Assembly

$45.99

$

Usually ships in 4-7 days

0

17

Bad Boy 031-9045-00

Small Mower Square Drive Arm RH Assembly

$56.99

$

Usually ships in 0 days

0

18

Bad Boy 031-9046-00

Small Mower Square Drive Arm LH Assembly

$56.99

$

Usually ships in 0 days

0

19

Bad Boy 034-8025-00

Drive Lever Spring

$4.49

$

In Stock, only 2 left!

0

20

Bad Boy 035-5450-00

Push Rod-Right

$36.99

$

Usually ships in 4-7 days

0

21

Bad Boy 035-5451-00

Push Rod-Left

$45.99

$

Usually ships in 4-7 days

0

22

Bad Boy 070-2502-00

2025 ZT Elite Frame

$

$

Currently unavailable

23

Bad Boy 077-8075-00

Rail Mount Safety Switch

$6.99

$

Usually ships in 4-7 days

0

24

Bad Boy 087-0001-00

Steering Damper

$66.99

$

In Stock, only 2 left!

0
