ZT-L42 (17AFCACS897) - Columbia 42" Zero-Turn Tractor (2014) Deck 42-Inch Parts Diagram

42" Zero-Turn Tractor

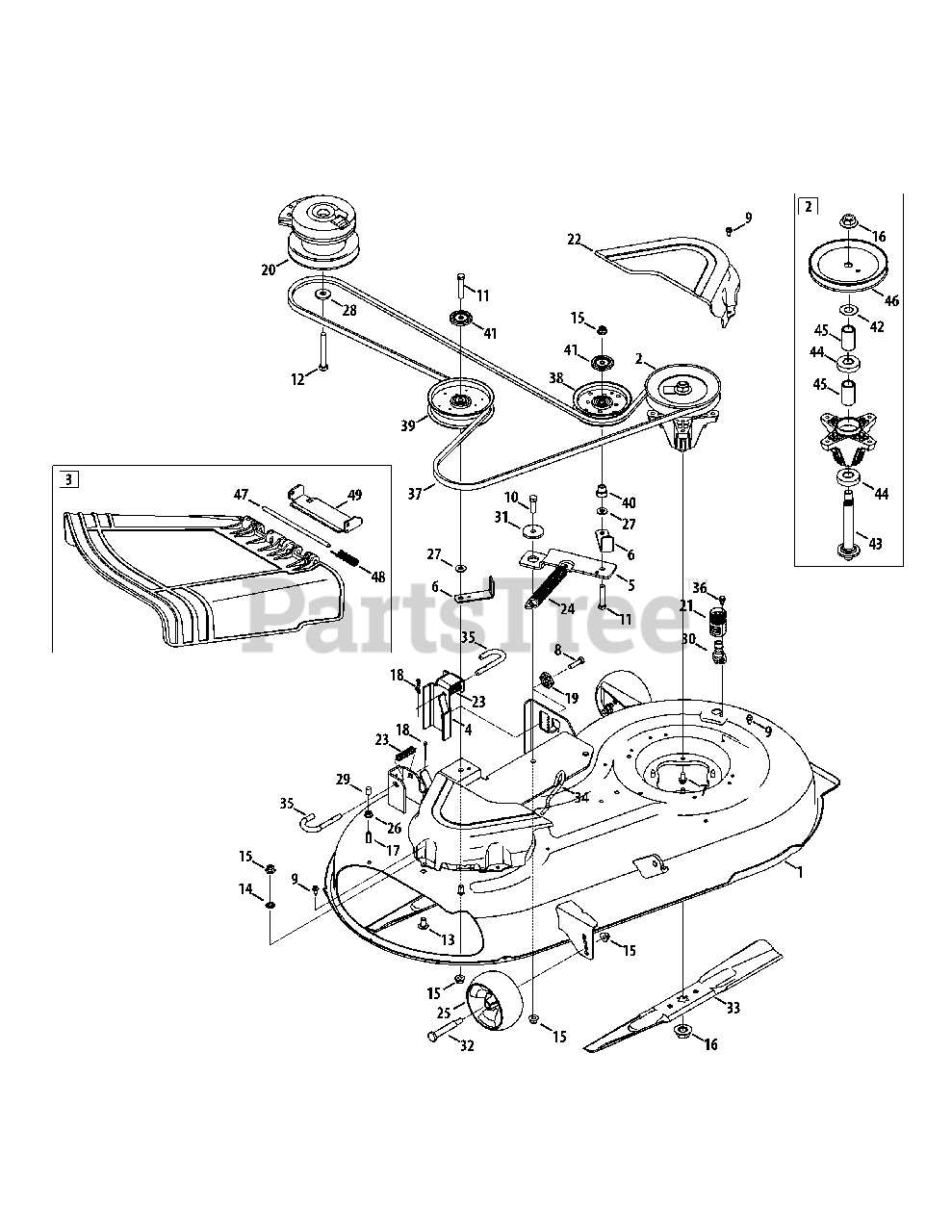

Deck 42-Inch Parts Diagram

  • Title

1

MTD 903-05125-0606

42-Inch Deck
(Superseded to 753-11266-0637)

$713.99

$

Usually ships in 3-6 days

0

2

MTD 918-04822A

Spindle Assembly
(Superseded to 918-04822B)

$121.99

$

In Stock, Qty 20+

0

3

MTD 631-05191

Discharge Chute Assembly
(Superseded to 631-05191A)

$52.99

$

In Stock, Qty 20+

0

4

MTD 683-05124-0606

Deck Lift Bracket

$41.99

$

Usually ships in 3-6 days

0

5

MTD 703-08336C-0637

Pivot Idler Bracket
(Superseded to 703-08336E)

$29.99

$

In Stock, Qty 6

0

6

MTD 703-09583-0637

Bracket, Belt Guard

$12.99

$

Usually ships in 3-6 days

0

7

MTD 710-1260A

Hex Washer Head Screw 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

8

MTD 710-0573

Hex Cap Screw 5/16-18 x 1.25

$5.99

$

In Stock, Qty 20+

0

9

MTD 710-1652

Hex Washer Screw 1/4-20 x .625

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-3005

Hex Cap Screw 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-3144

Hex Cap Screw 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-3157A

Screw 7/16-20 x 3.25

$9.99

$

In Stock, Qty 13

0

13

MTD 710-3178

Carriage Screw 3/8-16 x .75

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-0229

Push Nut 3/8

$3.49

$

In Stock, Qty 20+

0

15

MTD 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-0417A

Hex Flange Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

17

MTD 710-0376

Hex Cap Screw 5/16-18 x 1.00

$3.99

$

In Stock, Qty 17

0

18

MTD 714-0162

Cotter Pin 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

19

MTD 917-04074

Deck Adjustment Gear

$12.99

$

In Stock, Qty 20+

0

20

MTD 917-05121

Electric PTO Clutch

$444.99

$

Usually ships in 3-6 days

0

21

MTD 921-04041

Water Nozzle Adapter

$21.99

$

In Stock, Qty 20+

0

22

MTD 731-08698

Belt Cover
(Superseded to 731-08698B)

$19.99

$

Usually ships in 3-6 days

0

23

MTD 932-3127

Compression Spring .66 x 1.9

$4.49

$

In Stock, Qty 18

0

24

MTD 732-04960

Extension Spring .94 Dia. x 7.57

$13.99

$

In Stock, Qty 5

0

25

MTD 734-04155

Deck Ball Wheel 5.0

$19.99

$

In Stock, Qty 20+

0

26

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

27

MTD 736-0262

Flat Washer .385 x .870 x .092

$3.99

$

In Stock, Qty 20+

0

28

MTD 736-0322

Flat Washer .450 x 1.25 x .164

$8.49

$

In Stock, Qty 20+

0

29

MTD 720-05010

Cap .290 x .500

$3.99

$

In Stock, Qty 13

0

30

MTD 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, Qty 20+

0

31

MTD 738-04162C

Shoulder Spacer .884 x .190

$12.99

$

In Stock, Qty 20+

0

32

MTD 938-3056

Shoulder Screw .5 x 2.5 x 3/8-16

$8.99

$

In Stock, Qty 20+

0

33

MTD 942-04312

Blade 2 in 1, 21.23-Inch Lg.
(Superseded to 942-04312A)

$29.99

$

In Stock, Qty 20+

0

34

MTD 747-05608

Deck Spring Rod
(Superseded to 747-05608A)

$3.49

$

Usually ships in 3-6 days

0

35

MTD 747-06292

Deck Hanger Rod

$10.99

$

In Stock, Qty 8

0

36

MTD 738-04278

Shoulder Screw .500

$6.49

$

In Stock, Qty 20+

0

37

MTD 954-04033A

V-Belt

$50.99

$

In Stock, Qty 20+

0

38

MTD 756-05042

Idler Pulley 4.25 Dia.

$28.99

$

In Stock, Qty 20+

0

39

MTD 756-04511B

Idler Pulley 5.00 Dia.

$49.99

$

In Stock, Qty 20+

0

40

MTD 748-05029A

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

41

MTD 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

42

MTD 936-0351

Washer .760 x 1.50 x .030
(Superseded to 736-0351)

$3.99

$

In Stock, Qty 20+

0

43

MTD 738-1186A

Spindle Shaft

$49.99

$

In Stock, Qty 20+

0

44

MTD 941-0919B

Ball Bearing

$20.99

$

In Stock, Qty 20+

0

45

MTD 750-04936

Spacer .792 x 1.060 x 1.860

$6.49

$

In Stock, Qty 20+

0

46

MTD 956-1227

Deck Pulley

$24.99

$

In Stock, Qty 20+

0

47

MTD 711-04847B

Hinge Pin

$8.49

$

In Stock, Qty 20+

0

48

MTD 732-04372

Torsion Spring

$9.49

$

In Stock, Qty 20+

0

49

MTD 783-06074A

Chute Bracket

$30.99

$

In Stock, only 4 left!

0
