ZT-S42 KH (17ARCBDS897) - Columbia 42" Zero-Turn Mower, Kohler (2018) Floorboard Parts Diagram

42" Zero-Turn Mower, Kohler

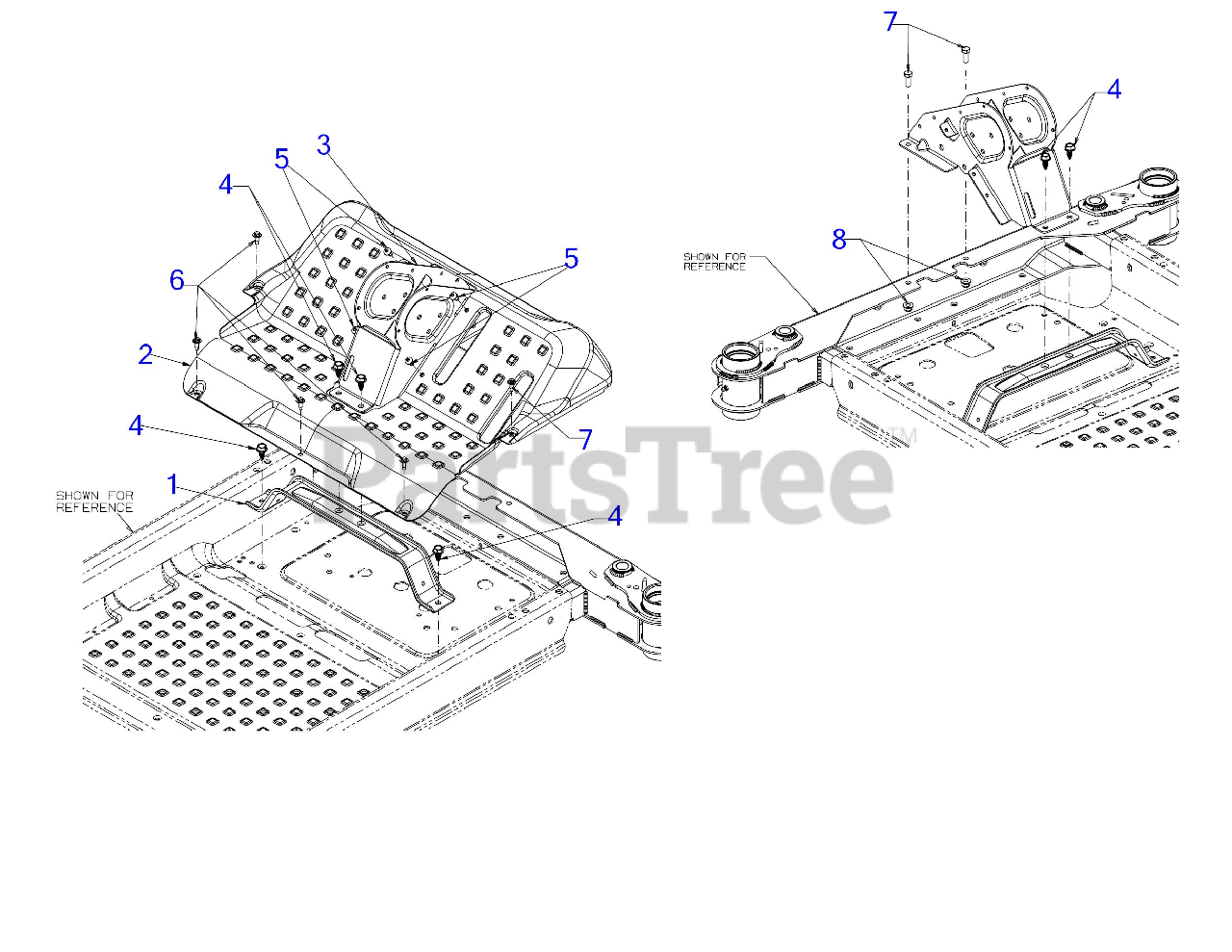

Floorboard Parts Diagram

  • Title

1

MTD 703-08620A

STEERING SUPPORT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-08620A-0637

BRACKET-STRG SUPPORT - POWDER BLACK (0637)

$36.99

$

Usually ships in 3-6 days

0

MTD 703-08620A-4021

BRACKET-STRG SUPPORT - CUB YELLOW 2 (4021)

$36.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

2

MTD 703-08642A

FLOORBOARD
(Superseded to 703-08642B)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-08642A-0606

FLOORBOARD RZT-S - MAJESTIC ORANGE (0606)

$127.99

$

Usually ships in 3-6 days

0

MTD 703-08642A-0638

FLOORBOARD RZT-S - MTD/TROY-BILT RED (0638)

$146.99

$

Usually ships in 3-6 days

0

MTD 703-08642A-4021

FLOORBOARD RZT-S - CUB YELLOW 2 (4021)

$157.99

$

Usually ships in 3-6 days

0

MTD 703-08642A-4044

FLOORBOARD RZT-S - CRAFTSMAN RED (4044)

$127.99

$

Usually ships in 3-6 days

0

$127.99

$

Usually ships in 3-6 days

0

3

MTD 703-11111A

LOWER STEERING COLUMN

Note: *CHOOSE COLOR WHEN ORDERING*

$80.99

$

Usually ships in 3-6 days

0

4

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-05070A

SCREW 1/4-20 x .5

$7.49

$

In Stock, Qty 5

0

6

MTD 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0
