ZT1-42 E (34BBA2CS710) - Cub Cadet Ultima 42" Zero-Turn Mower, Electric (2022) Platform Parts Diagram

Ultima 42" Zero-Turn Mower, Electric

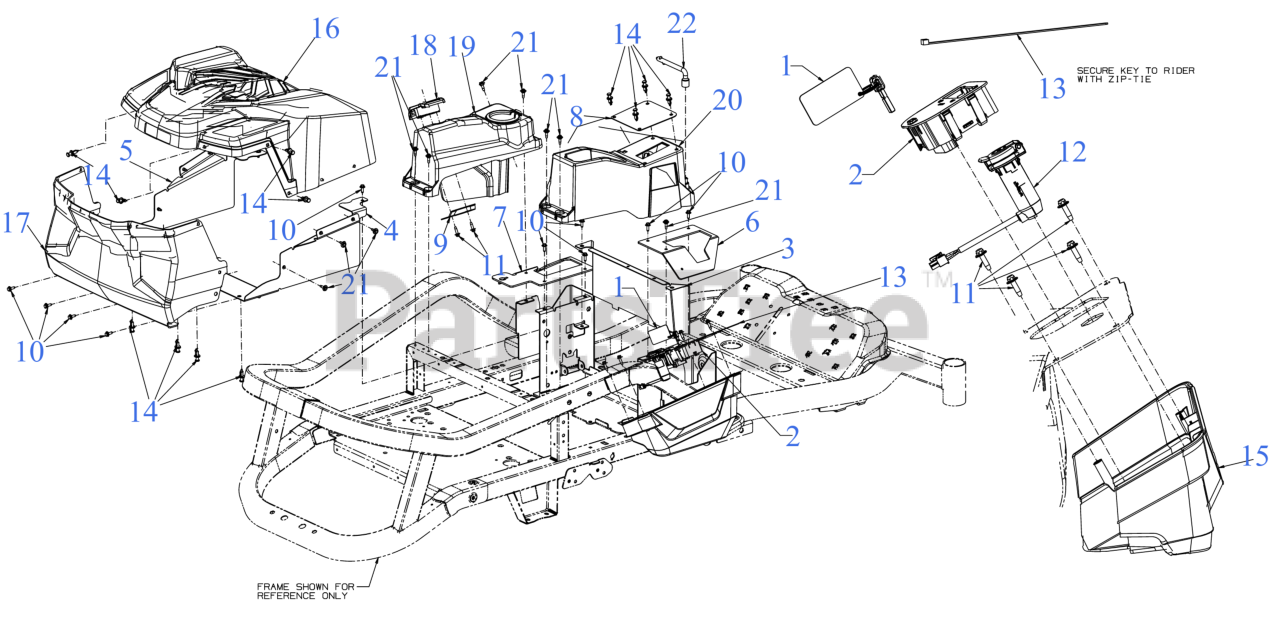

Platform Parts Diagram

  • Title

1

Cub Cadet 625-06990A

MAGNETIC KEY

$

$

Not available

2

Cub Cadet 625P08834A

VCM SWITCH ASSEMBLY

$

$

Not available

3

Cub Cadet 703-13225

SEAT BOX FRONT PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$22.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-25909

BATTERY MOUNT BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$62.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-25910

BATTERY MOUNT BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$62.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-26424A

CONTROL BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$19.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-26425A

CONTROL BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$26.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-26748A

CONSOLE COVER PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$7.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-26849

CHARGER ADAPTER PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$15.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-06147

SCREW 1/4-10 x .750

$3.99

$

In Stock, Qty 15

0

12

Cub Cadet 725-09965

USB RECEPTACLE (12V W/JUMPER)

$113.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 726-0317

TIE CABLE 8.5 LG

$5.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 728-0199

PLASTIC RIVET

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 731P14831

CONTROL PANEL CONSOLE

$43.99

$

In Stock, Qty 7

0

16

Cub Cadet 731-24011

BATTERY COVER

$175.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 731-24012

BATTERY COVER (REAR)

$96.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 731-25971

CHARGER ADAPTER

$15.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 731P26328

CONSOLE (LH)

$58.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 731-26330A

BATTERY CONSOLE (RH)

$35.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 738-05090

SHOULDER SCREW M6-1 .368 X.115

Note: 13

$3.49

$

In Stock, Qty 10

0

22

Cub Cadet 747-08070A

MULTI TOOL 1/2" SOCKET

$9.49

$

In Stock, only 2 left!

0
