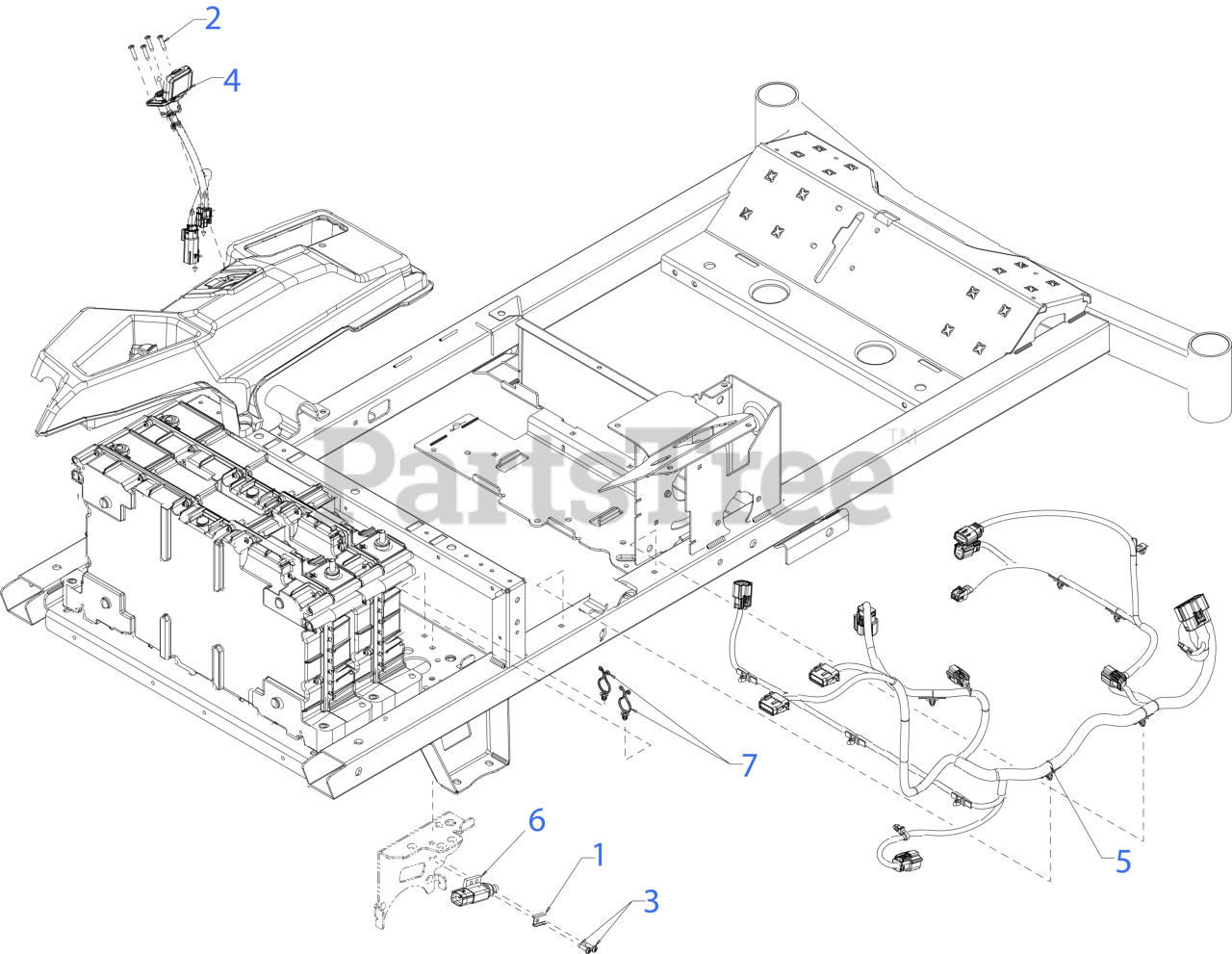

ZT1-42 E (34CBA2CS710) - Cub Cadet Ultima 42" Zero-Turn Mower, Electric (2023) Harness Parts Diagram

Ultima 42" Zero-Turn Mower, Electric

Harness Parts Diagram

  • Title

1

Cub Cadet 17962

PLATE-SWITCH

$4.99

$

In Stock, Qty 5

0

2

Cub Cadet 791-181345

SCREW, #8-16X.750 PH

Note: 5-9 IN-LBS

$4.49

$

In Stock, Qty 17

0

3

Cub Cadet 791-182195

SCREW #10-24X11/16 T-25

Note: 30-45 IN-LBS

$7.49

$

In Stock, Qty 13

0

4

Cub Cadet 725P17073B

CHARGER PORT HARNESS (8-PIN)

$

$

Not available

5

Cub Cadet 725P18459

MAIN HARNESS

$607.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 929-05136

SEALED PLUNGER SWITCH

$43.99

$

In Stock, only 1 left!

0

7

Cub Cadet 729-07541

TWIST LOCK CLIP

$3.49

$

Usually ships in 3-6 days

0
