ZTH 5223 A (968999153) - Husqvarna 52" Zero-Turn Mower (2000-06) Seat Assembly Parts Diagram

52" Zero-Turn Mower

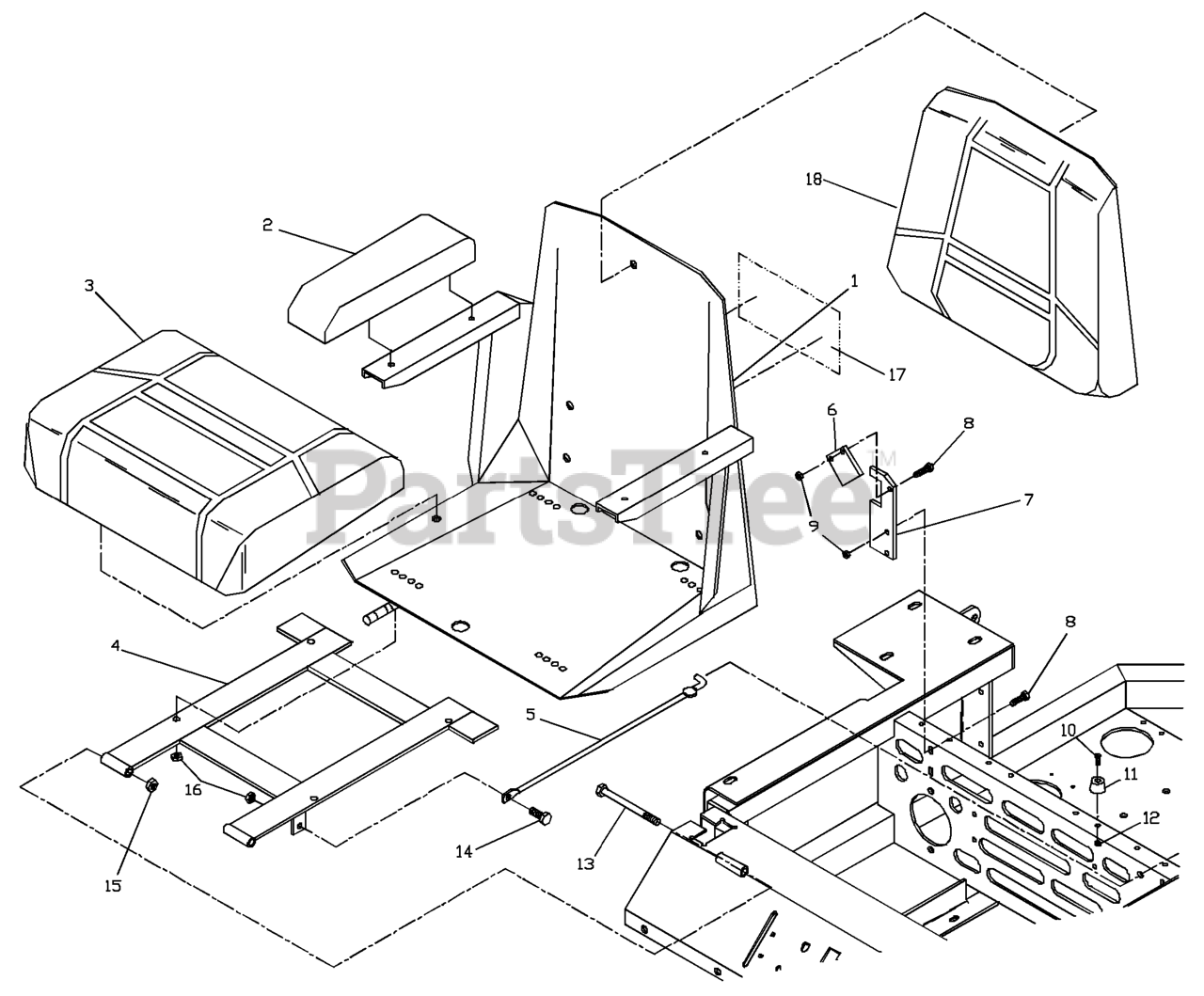

Seat Assembly Parts Diagram

  • Title

1

Husqvarna 539104584

SEAT, COMPLETE
(Superseded to 501580402)

$968.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539102844

ARM REST CUSHIONS/PAIR

$

$

Not available

3

Husqvarna 539102539

SEAT CUSHION W/SWITCH

$

$

Not available

4

Husqvarna 539102583

SEAT MOUNT FRAME

$

$

Not available

5

Husqvarna 539102378

SEAT STOP ROD

$

$

Not available

6

Husqvarna 539102917

SEAT LATCH

$

$

Not available

7

Husqvarna 539102918

SEAT LATCH MOUNT

$

$

Not available

8

Husqvarna 539990580

HCS 1/4C X 3/4 HCS
(Superseded to 596230901)

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 539990372

NUT 1/4C CENTERLOCK
(Superseded to 539990761)

$3.49

$

In Stock, only 4 left!

0

10

Husqvarna 539102617

SCREW, #1--24 X 1/2 SLOTTED

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539102794

SEAT BUMPER

$

$

Not available

12

Husqvarna 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.49

$

In Stock, Qty 20+

0

13

Husqvarna 539101517

SCREW, 3/8C X 5 HEX CAP

$

$

Not available

14

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.49

$

In Stock, Qty 19

0

15

Husqvarna 539990546

NUT 3/8C CENTERBLOCK
(Superseded to 595305901)

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 539990184

NUT 5/16C CENTERLOCK
(Superseded to 596580701)

$3.49

$

In Stock, Qty 14

0

17

Husqvarna 539104789

DECAL, CROWN H

$

$

Not available

18

Husqvarna 539104565

SEAT, BACK CUSHION

$

$

Not available
