ZTH 5223 KAA (968999153) - Husqvarna 52" Zero-Turn Mower (2000-06) ELECTRICAL Parts Diagram

52" Zero-Turn Mower

ELECTRICAL Parts Diagram

  • Title

1

Husqvarna 539102764

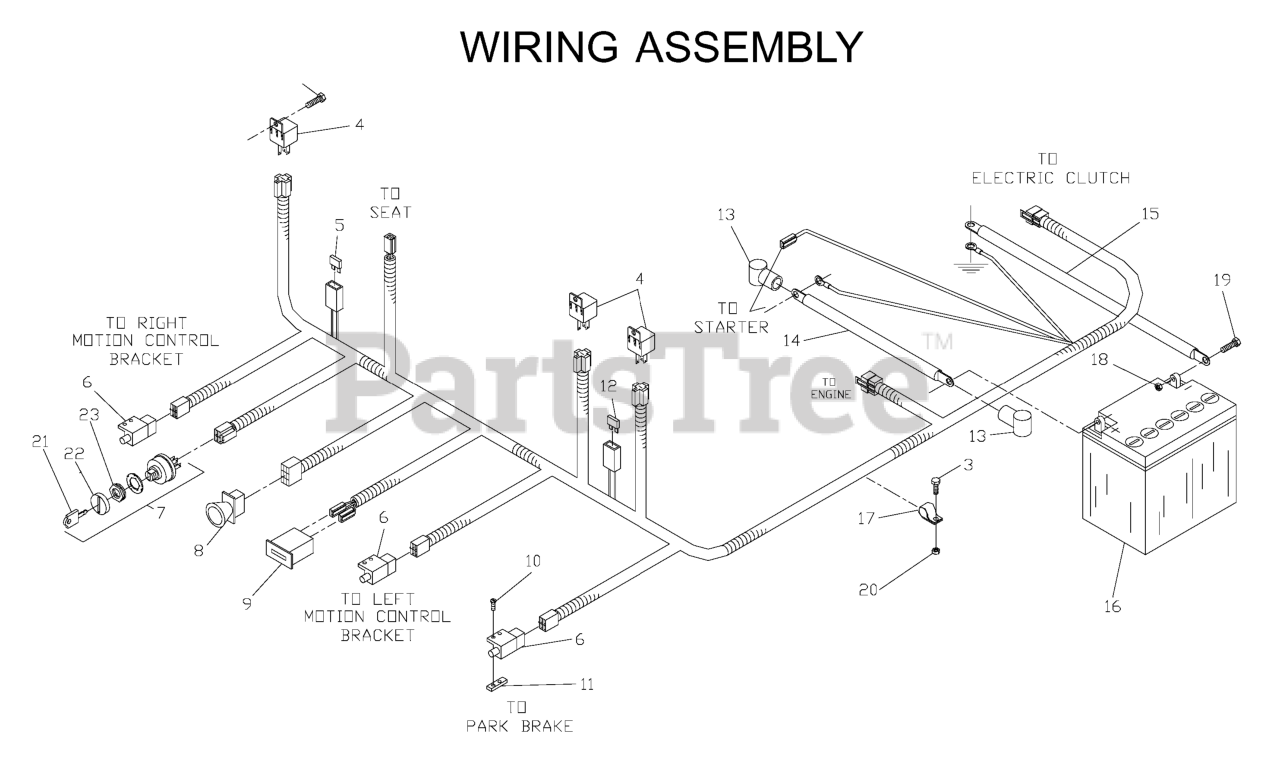

WIRING HARNESS-KOH GEN I

$

$

Not available

13

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

4

Husqvarna 539102914

RELAY

$26.99

$

In Stock, Qty 14

0

20

Husqvarna 539990372

NUT 1/4C CENTERLOCK
(Superseded to 539990761)

$4.99

$

In Stock, only 4 left!

0

2

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539102685

LOOM CLIP

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539102758

CABLE-NEGATIVE

$15.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, only 4 left!

0

8

Husqvarna 539101768

RP.SWITCH, BLADE
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

12

Husqvarna 539102086

FUSE, 20 AMP 32 VOLT ATO

$

$

Not available

19

Husqvarna 539990206

SCREW 5/16C X 1 HEX CAP
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539102757

CABLE POSITIVE

$15.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539104812

KEY-PADDED

$6.49

$

In Stock, only 2 left!

0

9

Husqvarna 539102540

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 7

0

3

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

In Stock, only 4 left!

0

23

Husqvarna 539103178

CAP IGNITION NUT

$4.99

$

In Stock, only 2 left!

0

6

Husqvarna 539101080

SWITCH, INTERLOCK

$7.49

$

In Stock, Qty 20+

0

7

Husqvarna 539101770

IGNITION SWITCH KIT

$

$

Not available

16

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

539911138

Husqvarna 539911138

KEYS

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539101771

FUSE, 7.5 AMP 32 VOLT ATO

$

$

Not available

22

Husqvarna 539103177

DNO IGNITION NUT

$3.99

$

In Stock, only 3 left!

0

10

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 20+

0
