ZTH 5223 KOLA (968999183) - Husqvarna 52" Zero-Turn Mower (2006-04) Liquid Cooled Kohler Engine Assembly Parts Diagram

52" Zero-Turn Mower

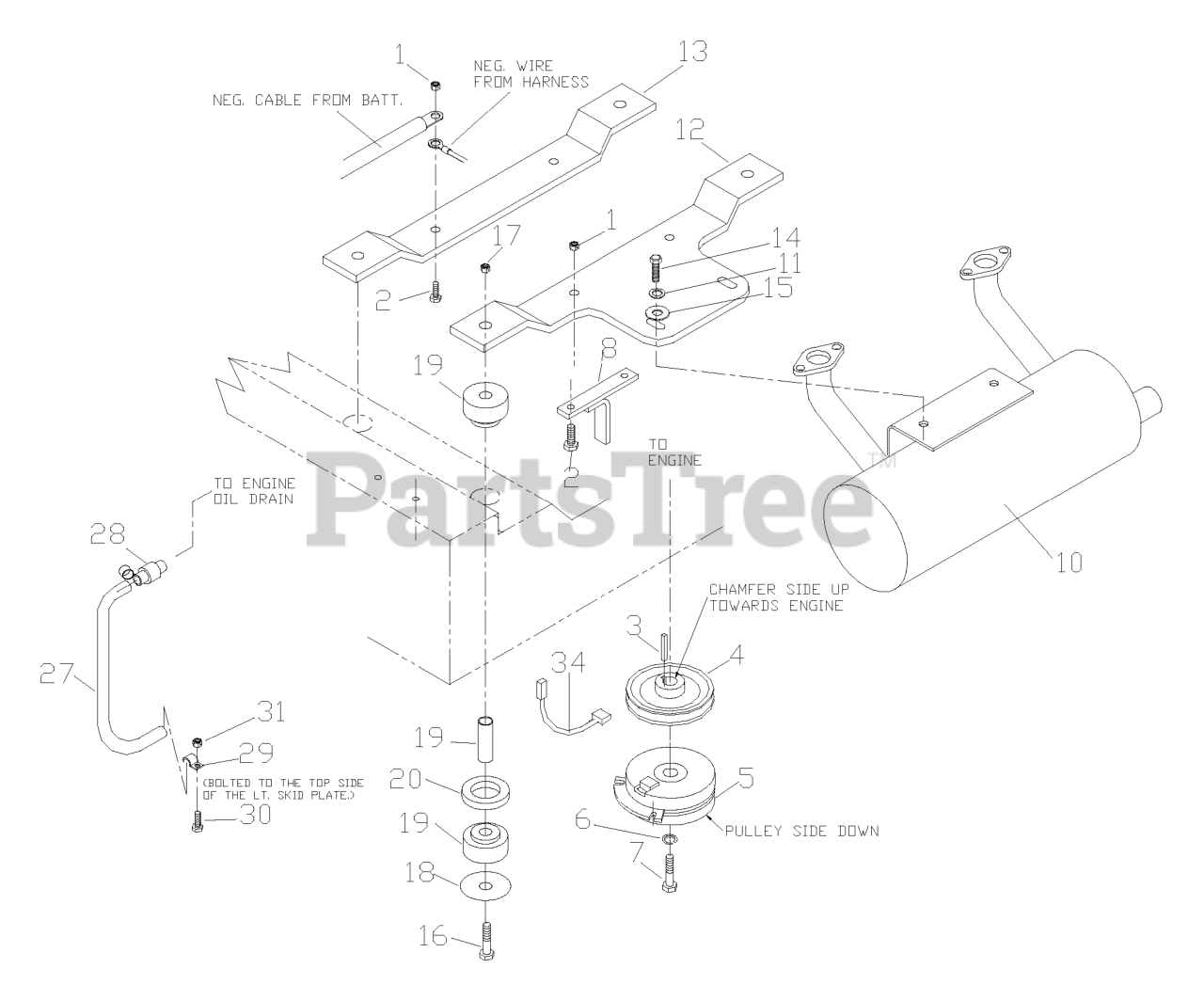

Liquid Cooled Kohler Engine Assembly Parts Diagram

  • Title

1

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0

3

Husqvarna 539100152

KEY 1/4" SQ X 1 7/8"

$3.99

$

In Stock, Qty 5

0

4

Husqvarna 539106057

PULLEY

$

$

Not available

5

Husqvarna 539105406

ELECTRIC CLUTCH W/CABLE

$

$

Not available

6

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

7

Husqvarna 539991120

BOLT 7/16F X 2 1/2

$6.49

$

In Stock, Qty 11

0

8

Husqvarna 5391068

CLUTCH TIE DOWN

$

$

Currently unavailable

9

Husqvarna 539105300

KOHLER PIGTAIL L/C

Note: (NOT SHOWN)

$18.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539105896

MUFFLER KOHLER GEN II

$364.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 539105410

REAR ENGINE MOUNT

$61.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539105025

ENGINE MOUNT

$18.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 539103433

HCS 1/2C X 3 1/4

$4.99

$

In Stock, Qty 11

0

17

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539104959

ISOLATOR WASHER

$15.99

$

In Stock, only 1 left!

0

19

Husqvarna 539104958

ISOLATORS

$

$

Not available

20

Husqvarna 539105034

ISOLATOR SPACER

$

$

Not available

23

Husqvarna 539105246

TEMP GAUGE DATCON #100182

Note: NOT SHOWN LOCATION OF THESE ITEMS ON THE UNIT ARE AT THE RIGHT SIDE OF THE OPERATORS SEAT MOUNTED TO THE FRAME

$80.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539105248

BRACKET-TEMP GAUGE

Note: NOT SHOWN LOCATION OF THESE ITEMS ON THE UNIT ARE AT THE RIGHT SIDE OF THE OPERATORS SEAT MOUNTED TO THE FRAME

$

$

Not available

25

Husqvarna 539105247

HARNESS-TEMP GAUGE

Note: NOT SHOWN LOCATION OF THESE ITEMS ON THE UNIT ARE AT THE RIGHT SIDE OF THE OPERATORS SEAT MOUNTED TO THE FRAME

$

$

Not available

26

Husqvarna 539976937

HCS 5/16-18X2

Note: NOT SHOWN LOCATION OF THESE ITEMS ON THE UNIT ARE AT THE RIGHT SIDE OF THE OPERATORS SEAT MOUNTED TO THE FRAME

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539107937

OIL DRAIN HOSE

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539110093

OIL DRAIN FITTING
(Superseded to 532428287)

$18.99

$

In Stock, Qty 13

0

29

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 2 left!

0

30

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

In Stock, only 4 left!

0

31

Husqvarna 539990761

NUT 1/4C CENTER LOCK

$4.99

$

In Stock, only 4 left!

0

32

Husqvarna 539102733

CHOKE CONTROL, COMPLETE

Note: (NOT SHOWN)

$47.99

$

In Stock, Qty 7

0

33

Husqvarna 539102685

LOOM CLIP

Note: NOT SHOWN LOCATION OF THESE ITEMS ON THE UNIT ARE AT THE RIGHT SIDE OF THE OPERATORS SEAT MOUNTED TO THE FRAME

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539105637

CLUTCH HARNESS

$24.99

$

In Stock, Qty 6

0
