ZTH 5225 A (968999154) - Husqvarna 52" Zero-Turn Mower (2000-06) Park Brake Assembly Parts Diagram

52" Zero-Turn Mower

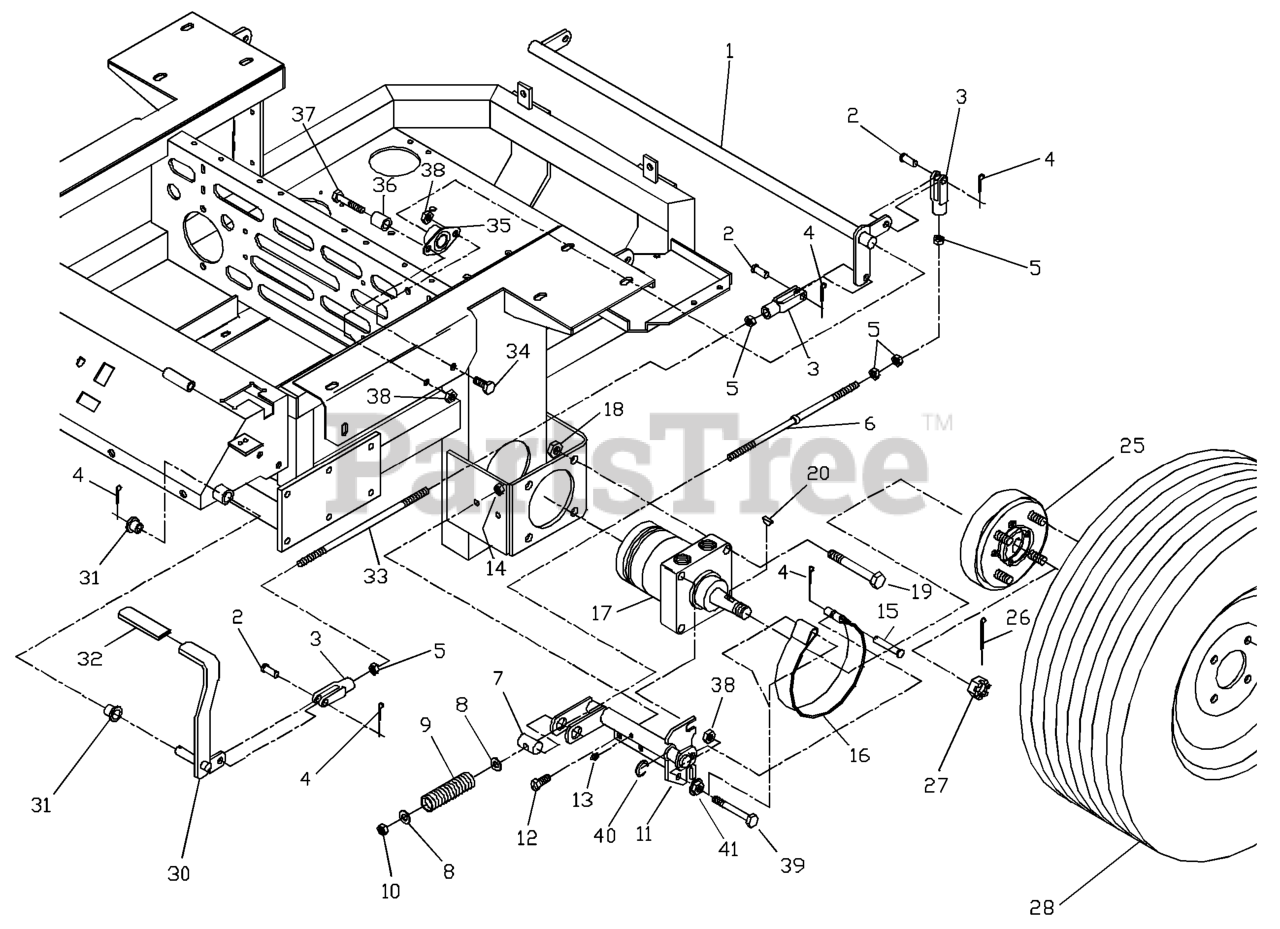

Park Brake Assembly Parts Diagram

  • Title

1

Husqvarna 539102799

BRAKE SHAFT

$

$

Not available

2

Husqvarna 539977703

CLEVIS PIN 3/8 X 1 1/8

$

$

Not available

3

Husqvarna 539977465

YOKE-3/8-24 PLTD
(Superseded to 596739901)

$34.99

$

In Stock, Qty 11

0

4

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 596029501)

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 539990155

NUT 3/8F

$3.49

$

In Stock, Qty 15

0

6

Husqvarna 539102818

BRAKE ROD

$

$

Not available

7

Husqvarna 539102821

TRUNION PIN

$

$

Not available

8

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

9

Husqvarna 539102817

COMPRESSION SPRING

$

$

Not available

10

Husqvarna 539990289

NUT 3/8F CENTERLOCK

$

$

Not available

11

Husqvarna 539103578

BRAKE BRACKET, LEFT

$

$

Not available

11

Husqvarna 539103579

BRAKE BRACKET, RIGHT

Note: (NOT SHOWN)

$

$

Not available

12

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.49

$

In Stock, Qty 19

0

13

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

14

Husqvarna 539990184

NUT 5/16C CENTERLOCK
(Superseded to 596580701)

$3.49

$

In Stock, Qty 14

0

15

Husqvarna 539102455

CLEVIS PIN, 3/8 X 1 1/2

$

$

Not available

16

Husqvarna 539102822

BRAKE BAND

$

$

Not available

17

Husqvarna 539103527

WHEEL MOTOR

$

$

Not available

18

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 2 left!

0

20

Husqvarna 539101465

KEY, #808 WOODRUFF

$

$

Not available

25

Husqvarna 539102456

HUB W/BRAKE DRUM

$

$

Not available

26

Husqvarna 539990297

COTTER PIN

$

$

Not available

27

Husqvarna 539101468

NUT 3/4-16 HEX SLTD GR5 ZD

$

$

Not available

28

Husqvarna 539104582

WHEEL ASSEMBLY

$

$

Not available

28

Husqvarna 539104583

RIM 8.5 X 12

$

$

Not available

28

Husqvarna 539912234

VALVE STEM TR-412

$4.99

$

In Stock, Qty 16

0

28

Husqvarna 539102736

TIRE
(Superseded to 539119519)

$

$

Not available

29

Husqvarna 539101173

LUG NUT 1/2F
(Superseded to 587653903)

$4.99

$

In Stock, Qty 14

0

30

Husqvarna 539102804

BRAKE LEVER

$

$

Not available

31

Husqvarna 539102519

BUSHING

$

$

Not available

32

Husqvarna 539976526

GRIP

$3.49

$

Usually ships in 3-10 days

0

33

Husqvarna 539102913

BRAKE ROD, LONG

$

$

Not available

34

Husqvarna 539990134

SCREW 3/8C X 3/4 HEX CAP

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539102797

FLANGE BEARING

$

$

Not available

36

Husqvarna 539101836

BUSHING, SLEEVE

$5.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 12

0

38

Husqvarna 539990546

NUT 3/8C CENTERBLOCK
(Superseded to 595305901)

$3.49

$

In Stock, Qty 20+

0

39

Husqvarna 539990637

HCS 3/8C X 2 1/2
(Superseded to 596434201)

$4.99

$

In Stock, Qty 18

0

40

Husqvarna 539102454

E RING 3/4

$

$

Not available

41

Husqvarna 539990613

NUT 3/8C WHIZ
(Superseded to 596583501)

$3.49

$

In Stock, Qty 11

0
