ZTH 5225 KAA (968999185) - Husqvarna 52" Zero-Turn Mower (2002-10) Suspension Seat Assembly Parts Diagram

52" Zero-Turn Mower

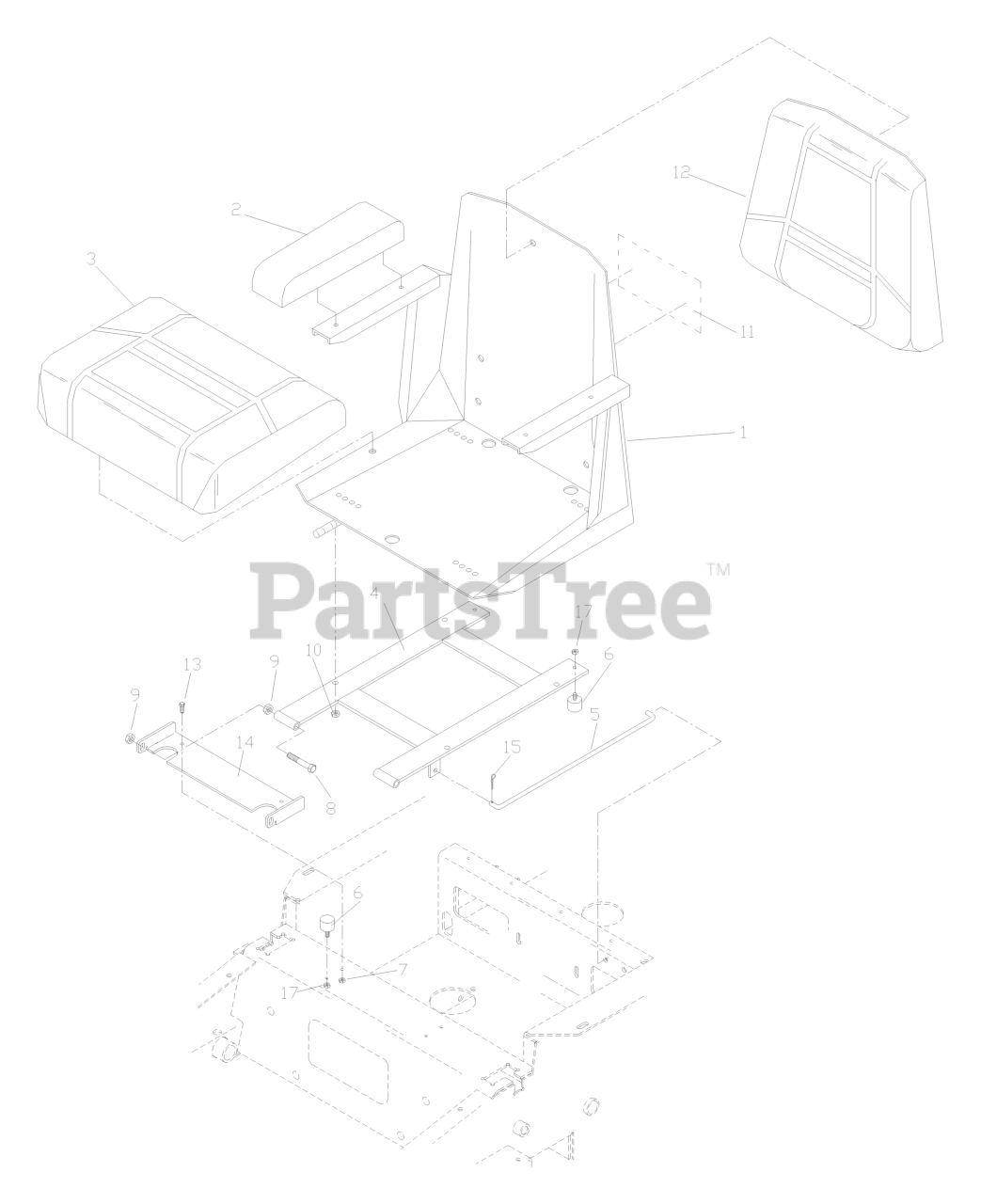

Suspension Seat Assembly Parts Diagram

  • Title

1

Husqvarna 539105211

SEAT COMPLETE
(Superseded to 539130874)

$512.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539105539

ARM REST CUSHION

$

$

Not available

3

Husqvarna 539105541

SEAT CUSHION

$

$

Not available

4

Husqvarna 539105283

SEAT MOUNT
(Superseded to 539105951)

$

$

Not available

5

Husqvarna 539104525

SEAT ROD

$12.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539105039

STUD/PLATE MOUNT

$

$

Not available

7

Husqvarna 539990372

NUT 1/4C CENTERLOCK
(Superseded to 539990761)

$4.99

$

In Stock, only 4 left!

0

8

Husqvarna 539101341

HCS 3/8C X 3

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

10

Husqvarna 539976975

NUT M8-1.25HX NYL RNGGR8.8

$0.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539104789

DECAL, CROWN H

$

$

Not available

12

Husqvarna 539105540

BACK CUSHION

$

$

Not available

13

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

In Stock, only 4 left!

0

14

Husqvarna 539105224

SEAT BRKT W/DECAL

$30.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

16

Husqvarna 539105544

SEAT RAILS

$

$

Not available

17

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539105545

SEAT HARNESS
(Superseded to 539104392)

$

$

Not available

19

Husqvarna 539105542

SEAT SWITCH

$

$

Not available

20

Husqvarna 539102685

LOOM CLIP

$4.99

$

Usually ships in 3-10 days

0
