ZTH 5225 KOA (968999184) - Husqvarna 52" Zero-Turn Mower (2006-04) Front Deck Assembly 52" Parts Diagram

52" Zero-Turn Mower

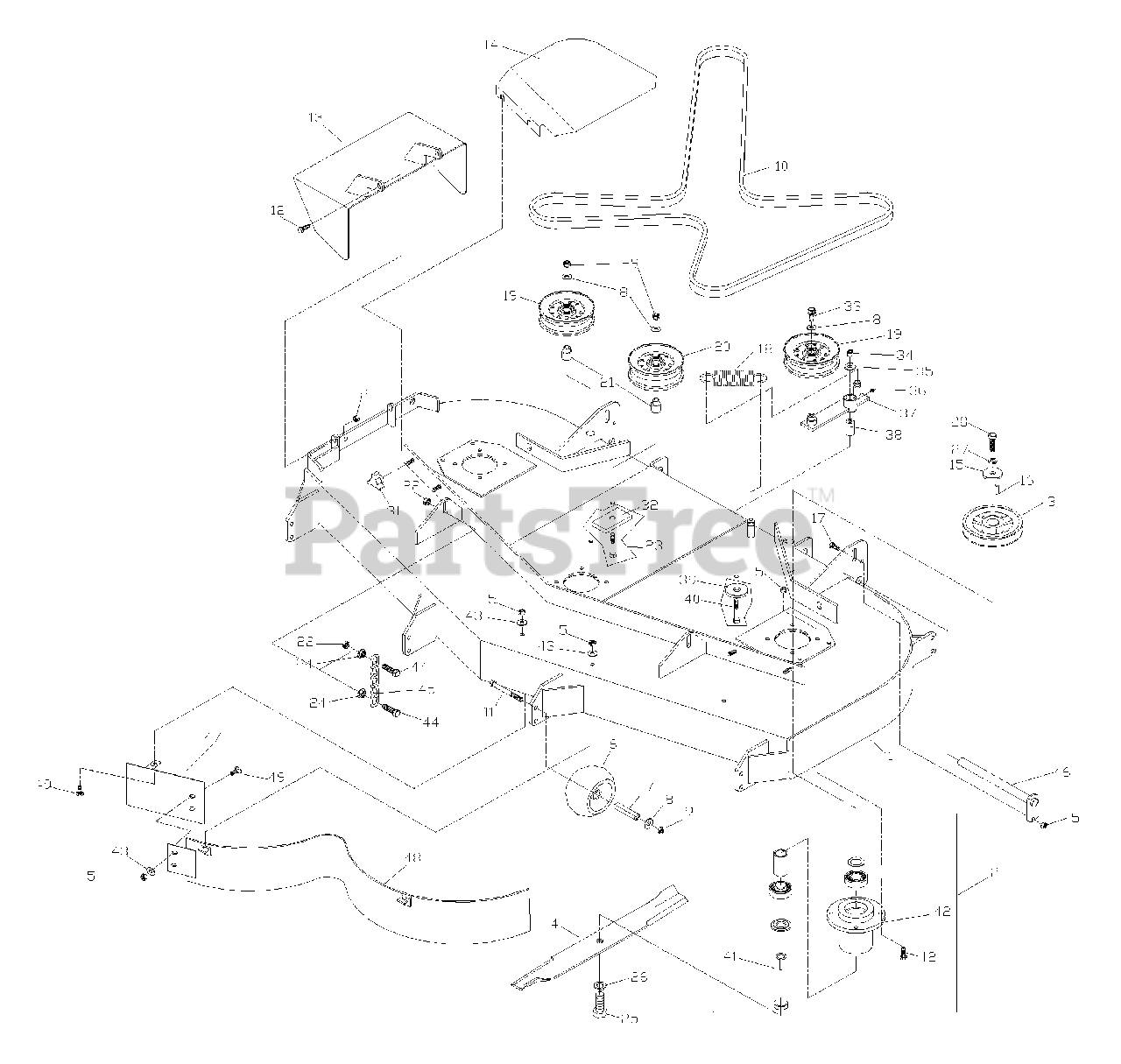

Front Deck Assembly 52" Parts Diagram

  • Title

1

Husqvarna 539105150

DECK W/DECALS

$

$

Not available

2

Husqvarna 539107408

CUTTER HOUSING ASM

$484.99

$

In Stock, only 3 left!

0

2

Husqvarna 539107406

BEARING KIT, CUTTER HOUSING

$122.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539104421

PULLEY

$74.99

$

In Stock, only 2 left!

0

4

Husqvarna 539100341

BLADE, 18"

$

$

Not available

5

Husqvarna 539990184

NUT 5/16 LOCK

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539102643

ROLLER

$

$

Not available

7

Husqvarna 539102698

BUSHING

$

$

Not available

8

Husqvarna 539990517

3/8 FLAT WASHER

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539990546

NUT 3/8 LOCK

$

$

Not available

10

Husqvarna 539104335

BELT
(Superseded to 522795901)

$109.99

$

In Stock, Qty 20+

0

11

Husqvarna 539102754

HCS 3/8 X 3.5

$4.99

$

In Stock, Qty 14

0

12

Husqvarna 539990209

HCS 5/16 X 1.00

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 539107312

DISCHARGE CHUTE

$399.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539105104

BELT SHIELD RT

$

$

Not available

14

Husqvarna 539105105

BELT SHIELD LT

$

$

Not available

15

Husqvarna 539106504

WASHER

$

$

Not available

16

Husqvarna 539101995

KEY 1/4 SQ

$3.99

$

In Stock, only 2 left!

0

17

Husqvarna 539976934

HCS 5/16 X 750
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539105192

SPRING

$

$

Not available

19

Husqvarna 539103257

PULLEY 1.31

$74.99

$

In Stock, Qty 11

0

20

Husqvarna 539103258

PULLEY 1.62

$53.99

$

In Stock, Qty 8

0

21

Husqvarna 539103295

IDLER BUSHING

$9.99

$

In Stock, Qty 18

0

22

Husqvarna 539990839

NUT 7/16 LOCK

$3.99

$

In Stock, only 3 left!

0

23

Husqvarna 539990637

HCS 3/8 X 2.5

$1.49

$

Usually ships in 3-10 days

0

24

Husqvarna 539102582

NUT 7/16 WHIZ

$

$

Not available

25

Husqvarna 539103299

HCS 5/8F X 1.25

$7.49

$

In Stock, only 2 left!

0

26

Husqvarna 539990333

WASHER 5/8 LOCK

$1.49

$

In Stock, Qty 6

0

27

Husqvarna 539990247

7/16 LOCK WASHER

$

$

Not available

28

Husqvarna 539100141

HCS 7/16F X 1.5

$

$

Not available

31

Husqvarna 539102070

KNOB

$7.49

$

In Stock, Qty 13

0

32

Husqvarna 539103303

PAD
(Superseded to 539106504)

$

$

Not available

33

Husqvarna 539990582

HCS 3/8 X 1.0 SERR

$

$

Not available

34

Husqvarna 539101331

NUT 1/2 NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

37

Husqvarna 539103230

IDLER ARM

$

$

Not available

38

Husqvarna 539103427

PIVOT BUSHING

$7.49

$

In Stock, Qty 6

0

39

Husqvarna 539102243

SUPPORT WASHER

$

$

Not available

40

Husqvarna 539103433

HCS 1/2 X 3.25

$4.99

$

In Stock, Qty 11

0

41

Husqvarna 539104402

SPINDLE

$

$

Not available

42

Husqvarna 539104852

HOUSING

$

$

Not available

43

Husqvarna 539990692

5/16 FLAT WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

44

Husqvarna 539101175

HCS 7/16 X 1.5

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539102619

PIVOT PIN

$40.99

$

In Stock, only 3 left!

0

47

Husqvarna 539105453

BAFFLE, CENTER

$

$

Not available

48

Husqvarna 539105457

BAFFLE, MAIN

$267.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539990799

RHSNB 5/16 X 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0
