ZTH 6125 A (968999155) - Husqvarna 61" Zero-Turn Mower (2000-06) Motion Control Assembly Parts Diagram

61" Zero-Turn Mower

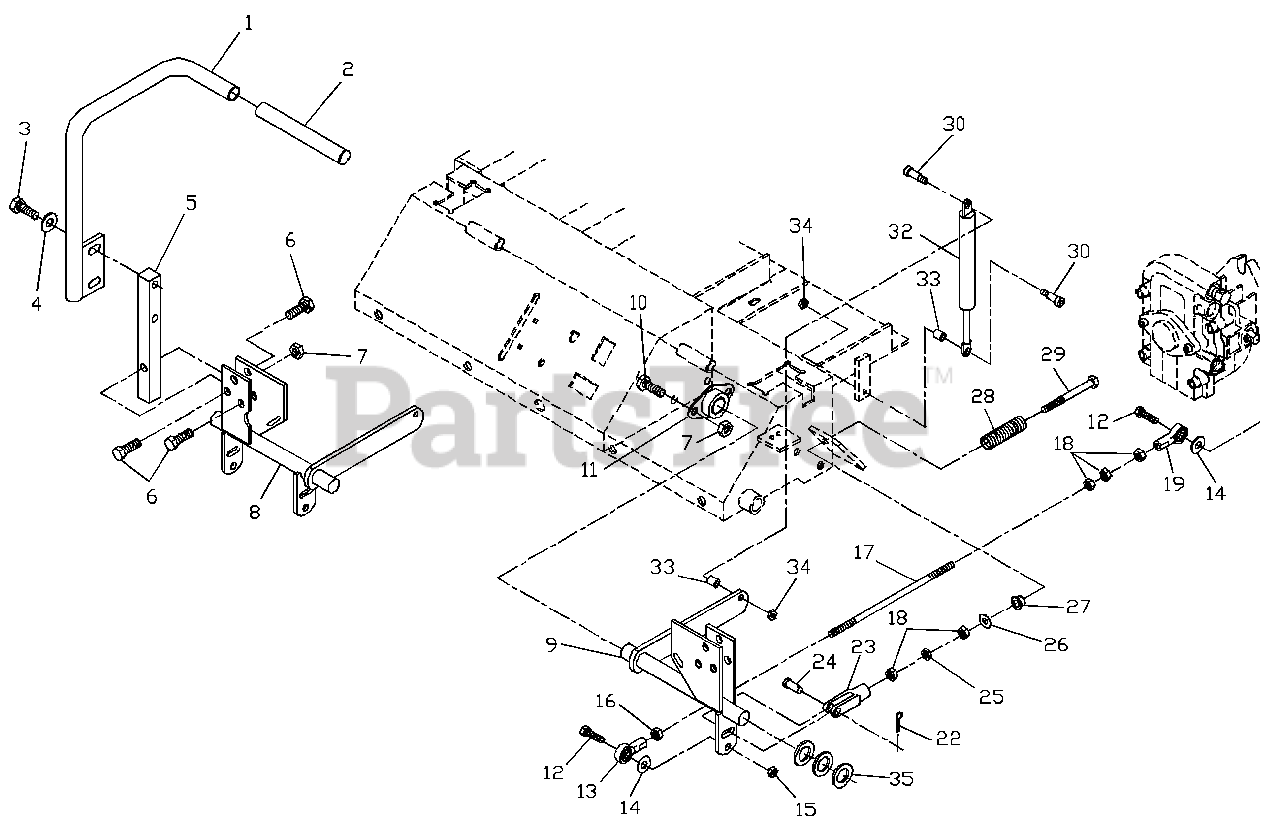

Motion Control Assembly Parts Diagram

  • Title

1

Husqvarna 539102586

MOTION CONTROL HANDLE, RIGHT

$

$

Not available

1

Husqvarna 539102585

MOTION CONTROL HANDLE, LEFT

Note: (NOT SHOWN)

$

$

Not available

2

Husqvarna 539102592

GRIP

$9.49

$

In Stock, only 1 left!

0

3

Husqvarna 539990563

3/8C X 1 HEX CAP SCREW
(Superseded to 596564401)

$4.99

$

In Stock, Qty 7

0

4

Husqvarna 539102593

3/8 DISC SPRING WASHER

$3.49

$

In Stock, only 4 left!

0

5

Husqvarna 539102809

CONTROL ARM

$

$

Not available

6

Husqvarna 539990730

3/8C X 1 3/4 HEX CAP SCREW
(Superseded to 596583901)

$3.49

$

In Stock, Qty 11

0

7

Husqvarna 539990546

3/8C CENTERLOCK NUT

$

$

Not available

8

Husqvarna 539102815

BRACKET, RIGHT

$

$

Not available

9

Husqvarna 539102816

BRACKET, LEFT

$

$

Not available

10

Husqvarna 539990134

3/8C X 3/4 HEX CAP SCREW

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539102797

FLANGE BEARING

$

$

Not available

12

Husqvarna 539990627

5/16C X 1 1/4 HEX CAP SCREW

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 539102591

BALL JOINT, LEFT HAND THREAD

$

$

Not available

14

Husqvarna 539990692

5/16 FLAT WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 539990184

5/16C CENTERLOCK NUT

$

$

Not available

16

Husqvarna 539991073

5/16F JAM NUT, LEFT HAND THREAD
(Superseded to 596584101)

$3.49

$

In Stock, only 2 left!

0

17

Husqvarna 539102589

PUMP CONTROL LINK

$

$

Not available

18

Husqvarna 539990223

5/16F HEX NUT

$

$

Not available

19

Husqvarna 539102590

BALL JOINT, RIGHT-HAND THREAD

$26.99

$

In Stock, only 2 left!

0

20

Husqvarna 539102825

PUMP CONTROL ARM

$

$

Not available

21

Husqvarna 539102717

5/16C X 5/8 SQ HEAD SET SCREW

$3.49

$

In Stock, only 2 left!

0

22

Husqvarna 539990555

3/32 X 1/2 COTTER PIN

$

$

Not available

23

Husqvarna 539976481

5/16F YOKE

$7.49

$

Usually ships in 3-10 days

0

24

Husqvarna 539977793

5/16 X 1 CLEVIS PIN

$

$

Not available

25

Husqvarna 539100561

5/16F HEX JAM NUT

$

$

Not available

26

Husqvarna 539990598

1/4 FLAT WASHER
(Superseded to 597338501)

$17.99

$

In Stock, Qty 20+

0

27

Husqvarna 539101535

NYLON BUSHING

$

$

Not available

28

Husqvarna 539102796

NEUTRAL DETENT SPRING

$

$

Not available

29

Husqvarna 539102795

SHOULDER SCREW, NEUTRAL RETURN

$

$

Not available

30

Husqvarna 539102828

5/16 X 5/8 SHOULDER SCREW

$

$

Not available

32

Husqvarna 539102720

DAMPENER

$79.99

$

In Stock, Qty 14

0

33

Husqvarna 539102827

SPACER

$5.99

$

In Stock, only 2 left!

0

34

Husqvarna 539990372

1/4C CENTERLOCK NUT
(Superseded to 539990761)

$3.49

$

In Stock, only 4 left!

0

35

Husqvarna 539100242

MACH BUSHING

$

$

Not available
