ZTH 7226 KOA (968999175) - Husqvarna 72" Zero-Turn Mower (2001-06) Main Frame Assembly Parts Diagram

72" Zero-Turn Mower

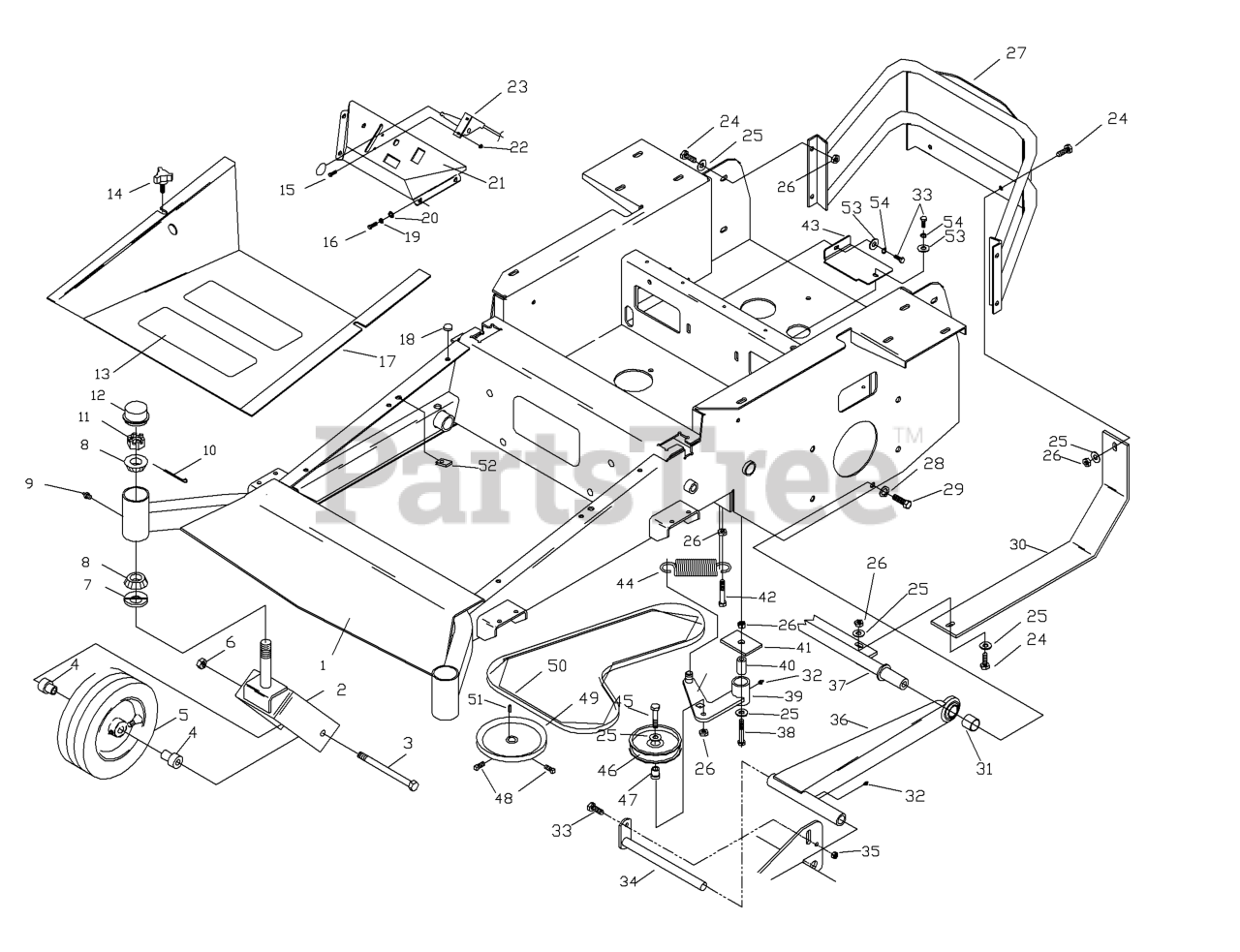

Main Frame Assembly Parts Diagram

  • Title

1

Husqvarna 539105491

MAIN FRAME
(Superseded to 539105492)

$

$

Not available

2

Husqvarna 539105982

CASTOR YOKE ORANGE

$

$

Not available

3

Husqvarna 539105517

HEX SCREW 1/2-13 X 9.5 GR5
(Superseded to 594946501)

$7.49

$

In Stock, only 2 left!

0

4

Husqvarna 539105518

AXLE SPACER

$10.99

$

In Stock, Qty 20+

0

5

Husqvarna 539105521

FRONT TIRE ASSY

$193.99

$

In Stock, Qty 15

0

5

Husqvarna 539105522

TIRE - SMOOTH 13X6.50-6

$119.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539103300

ZERK
(Superseded to 542164296)

$3.99

$

In Stock, only 1 left!

0

5

Husqvarna 539105523

RIM

$

$

Not available

5

Husqvarna 539105524

SEAL

$11.99

$

In Stock, Qty 7

0

5

Husqvarna 539912234

VALVE STEM TR-412

$4.99

$

In Stock, Qty 15

0

5

Husqvarna 539105525

TAPERED BEARING W/RACE

$17.99

$

In Stock, only 3 left!

0

6

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 539102851

SEAL

$8.49

$

In Stock, Qty 20+

0

8

Husqvarna 539102543

TAPERED ROLLER BRG

$23.99

$

In Stock, Qty 11

0

9

Husqvarna 539101474

ZERK
(Superseded to 596623501)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available

11

Husqvarna 539102852

NUT 1"C HEX SLOTTED
(Superseded to 596241501)

$14.99

$

In Stock, only 4 left!

0

12

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$7.49

$

In Stock, Qty 20+

0

13

Husqvarna 539977778

ANTI-SKID PAD

$4.99

$

In Stock, Qty 9

0

14

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 539990411

HCS #10-24 X 1/2
(Superseded to 596582801)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

17

Husqvarna 539104721

FOOT PLATE WIDMT

$

$

Not available

18

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 6

0

19

Husqvarna 539990052

LOCKWASHER 1/4"
(Superseded to 596564801)

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990598

WASHER 1/4 FLAT
(Superseded to 597338501)

$17.99

$

In Stock, Qty 20+

0

21

Husqvarna 539104996

CONSOLE WLD

$

$

Not available

22

Husqvarna 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 539102732

THROTTLE CONTROL W/BALL KNOB
(Superseded to 597524002)

$53.99

$

In Stock, only 2 left!

0

24

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

$4.99

$

In Stock, Qty 9

0

25

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 539990546

NUT 3/8C CENTERBLOCK
(Superseded to 595305901)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 539104329

REAR GUARD

$

$

Not available

28

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

29

Husqvarna 539105905

HEX SCREW 7/16-14 X 1 GR8

$

$

Not available

30

Husqvarna 539105022

SKID PLATE

$

$

Not available

31

Husqvarna 539104521

SPACER, STRUT

$

$

Not available

32

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

33

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 539102619

PIVOT PIN

$59.99

$

In Stock, only 1 left!

0

35

Husqvarna 539990184

NUT 5/16C CENTERLOCK
(Superseded to 596580701)

$3.99

$

In Stock, Qty 14

0

36

Husqvarna 539104390

STRUT

$335.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539105478

CROSS SHAFT WLD 72

$

$

Not available

38

Husqvarna 539103433

HCS 1/2C X 3 1/4

$7.49

$

In Stock, Qty 9

0

39

Husqvarna 539104388

IDLER ARM WLDT
(Superseded to 539130532)

$

$

Not available

40

Husqvarna 539103427

PIVOT BUSHING

$11.99

$

In Stock, Qty 20+

0

41

Husqvarna 539102236

PAD

$

$

Not available

42

Husqvarna 539990655

HCS 3/8C X 1 1/2

$

$

Not available

43

Husqvarna 539105716

IDLER COVER

$

$

Not available

44

Husqvarna 539103256

SPRING

$14.99

$

In Stock, Qty 20+

0

45

Husqvarna 539990730

HCS 3/8-16 X 1 3/4 GR5
(Superseded to 596583901)

$3.99

$

In Stock, Qty 7

0

46

Husqvarna 539976688

IDLER PULLEY
(Superseded to 596739801)

$41.99

$

In Stock, only 2 left!

0

47

Husqvarna 539976695

BUSHING, IDLER FLANGE

$

$

Not available

48

Husqvarna 539102717

SCREW 5/16C X 5/8 SQ HEAD

$

$

Not available

49

Husqvarna 539101176

PULLEY

$

$

Not available

50

Husqvarna 539104334

PUMP BELT
(Superseded to 510201501)

$45.99

$

In Stock, Qty 20+

0

51

Husqvarna 539101177

KEY 5 MM SQ X 25 MM

$5.99

$

In Stock, only 2 left!

0

52

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 20+

0

53

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.99

$

In Stock, Qty 20+

0

54

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

55

Husqvarna 539105577

STRUT WELDMENT

$

$

Not available

56

Husqvarna 539105481

STRUT PIN RH

$

$

Not available

57

Husqvarna 539105484

STRUT SPACER - 72"

$

$

Not available
