ZTH 7226 KOA (968999175) - Husqvarna 72" Zero-Turn Mower (2001-06) Main Frame Assembly Parts Diagram

72" Zero-Turn Mower

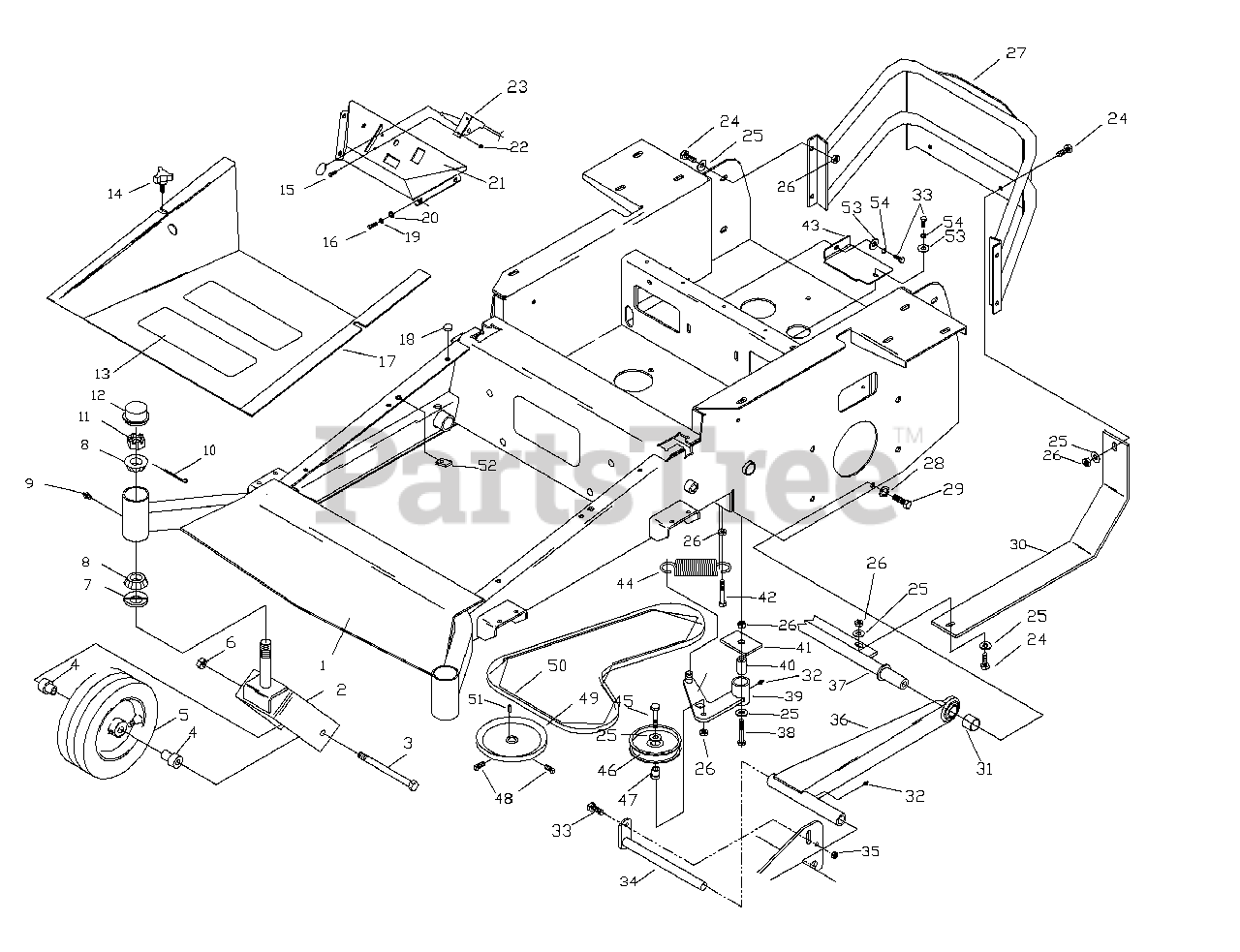

Main Frame Assembly Parts Diagram

  • Title

1

Husqvarna 539105491

FRAME
(Superseded to 539105492)

$

$

Not available

2

Husqvarna 539105982

CASTER YOKE

$

$

Not available

3

Husqvarna 539105517

HCS 1/2 X 9.5
(Superseded to 594946501)

$6.99

$

In Stock, Qty 5

0

4

Husqvarna 539105518

AXLE SPACER

$10.99

$

In Stock, Qty 20+

0

5

Husqvarna 539105521

WHEEL ASM.

$193.99

$

In Stock, Qty 15

0

5

Husqvarna 539105522

TIRE

$113.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539103300

ZERK
(Superseded to 542164296)

$3.49

$

In Stock, only 2 left!

0

5

Husqvarna 539105523

RIM

$

$

Not available

5

Husqvarna 539105524

SEAL

$10.99

$

In Stock, Qty 20+

0

5

Husqvarna 539912234

AIR VALVE

$4.99

$

In Stock, Qty 19

0

5

Husqvarna 539105525

BEARING, TAPERED

$17.99

$

In Stock, only 3 left!

0

6

Husqvarna 539101331

NUT 1/2 NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 539102851

SEAL

$7.99

$

In Stock, only 2 left!

0

8

Husqvarna 539102543

BEARING, TAPERED

$22.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539101474

ZERK
(Superseded to 596623501)

$3.49

$

In Stock, Qty 10

0

10

Husqvarna 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available

11

Husqvarna 539102852

NUT 1.0 CASTLE

$

$

Not available

12

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

In Stock, Qty 7

0

13

Husqvarna 539977778

ANTI SKID PAD

$4.99

$

In Stock, Qty 5

0

14

Husqvarna 539104411

KNOB
(Superseded to 597783101)

$4.99

$

In Stock, Qty 13

0

15

Husqvarna 539990411

HCS # 10 X 1/2

$

$

Not available

16

Husqvarna 539990362

1/4 x 5/8 SELF TAP

$4.99

$

In Stock, Qty 12

0

17

Husqvarna 539104721

FOOT PLATE

$

$

Not available

18

Husqvarna 539102587

BUMPER

$5.99

$

In Stock, Qty 9

0

19

Husqvarna 539990052

1/4 LOCK WASHER
(Superseded to 596564801)

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 539990598

1/4 FLAT WASHER
(Superseded to 597338501)

$17.99

$

In Stock, Qty 20+

0

21

Husqvarna 539104996

CONSOLE

$

$

Not available

22

Husqvarna 539976977

NUT #10 NYLOC
(Superseded to 596040801)

$3.49

$

In Stock, Qty 20+

0

23

Husqvarna 539102732

THROTTLE CABLE
(Superseded to 597524002)

$56.99

$

In Stock, only 3 left!

0

24

Husqvarna 539990563

HCS 3/8 X 1.0
(Superseded to 596564401)

$4.99

$

In Stock, Qty 7

0

25

Husqvarna 539990517

3/8 FLAT WASHER
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 539990517

3/8 FLAT WASHER
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 539990546

NUT 3/8 LOCK

$

$

Not available

27

Husqvarna 539104329

ENGINE GUARD

$

$

Not available

28

Husqvarna 539990247

7/16 LOCK WASHER
(Superseded to 596238901)

$3.49

$

In Stock, Qty 17

0

29

Husqvarna 539105905

HCS 7/16 X 1.0 GD 8

$

$

Not available

30

Husqvarna 539105022

SKID PLATE

$

$

Not available

31

Husqvarna 539104521

STRUT SPACER

$

$

Not available

32

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

33

Husqvarna 539976934

HCS 5/16 X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 539102619

STRUT PIN

$56.99

$

In Stock, only 1 left!

0

35

Husqvarna 539990184

NUT 5/16 LOCK

$

$

Not available

36

Husqvarna 539104390

STRUT

$319.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539105478

CROSS SHAFT

$

$

Not available

38

Husqvarna 539103433

HCS 1/2 X 3.25

$6.99

$

In Stock, Qty 6

0

39

Husqvarna 539104388

IDLER ARM
(Superseded to 539130532)

$

$

Not available

40

Husqvarna 539103427

PIVOT BUSHING

$11.99

$

In Stock, Qty 18

0

41

Husqvarna 539102236

SUPPORT PLATE

$

$

Not available

42

Husqvarna 539990655

HCS 3/8 X 1.5

$4.99

$

In Stock, only 1 left!

0

43

Husqvarna 539105716

IDLER COVER

$

$

Not available

44

Husqvarna 539103256

SPRING

$13.99

$

In Stock, only 1 left!

0

45

Husqvarna 539990730

HCS 3/8 X 1.75
(Superseded to 596583901)

$3.49

$

In Stock, Qty 11

0

46

Husqvarna 539976688

IDLER PULLEY
(Superseded to 596739801)

$37.99

$

In Stock, Qty 9

0

47

Husqvarna 539976695

IDLER BUSHING

$

$

Not available

48

Husqvarna 539102717

5/16 X 5/8 SETSCW.

$3.49

$

In Stock, only 2 left!

0

49

Husqvarna 539101176

PULLEY

$

$

Not available

50

Husqvarna 539104334

PUMP BELT
(Superseded to 510201501)

$45.99

$

In Stock, only 3 left!

0

51

Husqvarna 539101177

KEY 5mm SQ.

$5.99

$

In Stock, only 2 left!

0

52

Husqvarna 539104763

CLIP

$4.99

$

In Stock, Qty 7

0

53

Husqvarna 539990692

5/16 FLAT WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

54

Husqvarna 539990187

5/16 LOCK WASHER
(Superseded to 596238801)

$3.49

$

In Stock, only 3 left!

0

55

Husqvarna 539105577

STRUT RT. SIDE

$

$

Not available

56

Husqvarna 539105481

STRUT PIN RT. SIDE

$

$

Not available

57

Husqvarna 539105484

STRUT SPACER RT.SIDE

$

$

Not available
