ZTHKH 4818 A (968999157) - Husqvarna 48" Zero-Turn Mower, Kohler (2002-09) Main Frame Assembly Parts Diagram

48" Zero-Turn Mower, Kohler

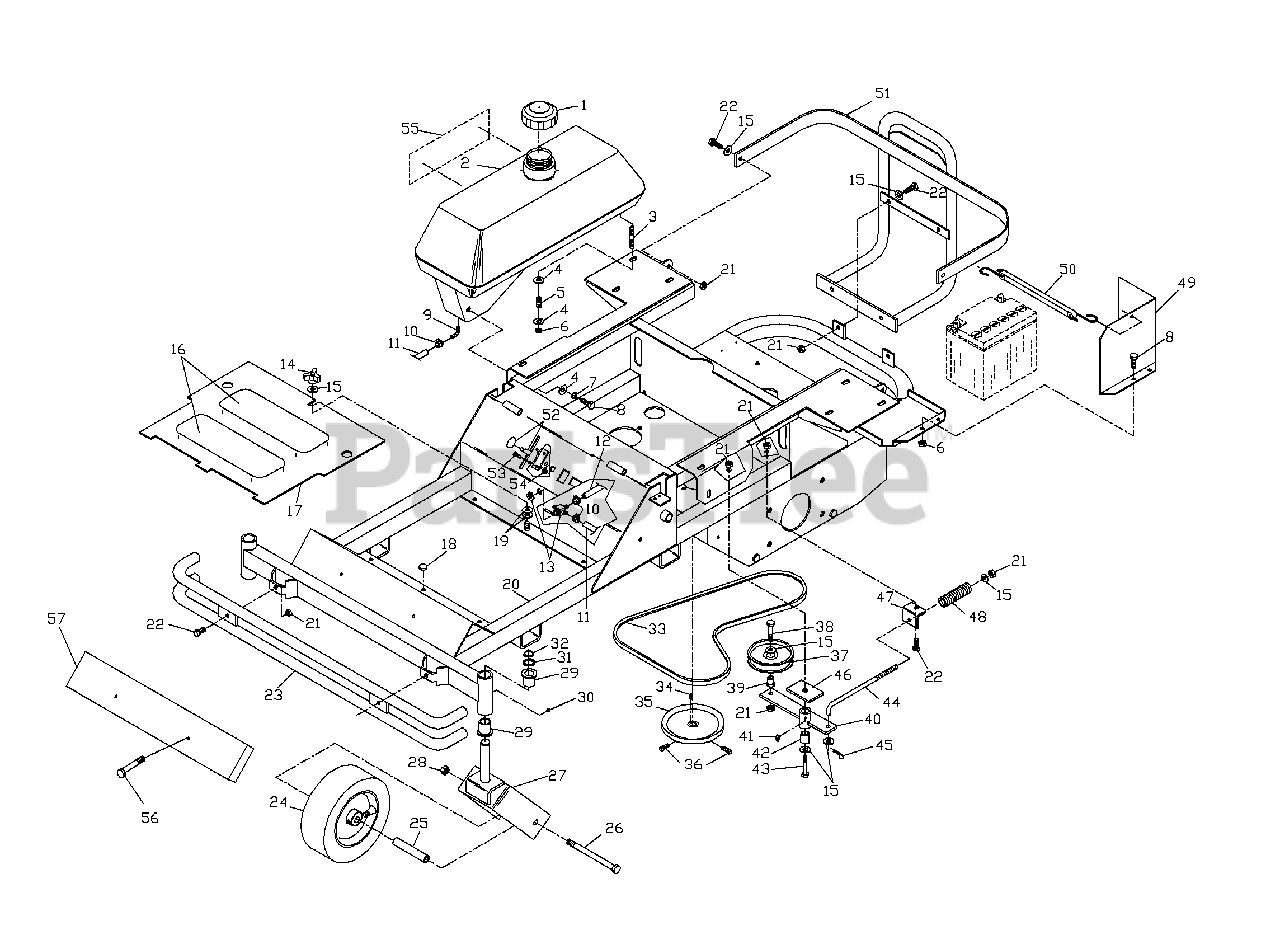

Main Frame Assembly Parts Diagram

  • Title

1

Husqvarna 539104962

FUEL CAP
(Superseded to 539106188)

$37.99

$

In Stock, only 2 left!

0

2

Husqvarna 539104410

FUEL TANK RT.

$

$

Not available

2

Husqvarna 539104409

FUEL TANK LT.

Note: (NOT SHOWN)

$

$

Not available

3

Husqvarna 539102502

5/16C STUD

$10.99

$

In Stock, only 2 left!

0

4

Husqvarna 539990692

5/16 FLAT WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

5

Husqvarna 539102845

SPRING

$3.49

$

In Stock, Qty 5

0

6

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$

$

Not available

7

Husqvarna 539990187

5/16 LOCKWASHER
(Superseded to 596238801)

$3.49

$

In Stock, only 3 left!

0

8

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 539102650

90 DEG. HOSE BARB

$

$

Not available

10

Husqvarna 539912222

HOSE CLAMP

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539102680

FUEL LINE, TANK
(Superseded to 539115707)

$7.99

$

In Stock, only 2 left!

0

12

Husqvarna 539102681

FUEL LINE, ENGINE

$

$

Not available

13

Husqvarna 539102679

FUEL VALVE
(Superseded to 598462501)

$51.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539102070

KNOB

$5.99

$

In Stock, only 2 left!

0

15

Husqvarna 539990517

3/8 FLAT WASHER
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 539977778

ANTI-SKID PAD

$4.99

$

In Stock, only 2 left!

0

17

Husqvarna 539104590

FOOTPLATE
(Superseded to 539103242)

$

$

Not available

18

Husqvarna 539102587

BUMPER, RUBBER

$5.99

$

In Stock, Qty 9

0

19

Husqvarna 539102593

3/8 DISC WASHER

$3.49

$

In Stock, only 4 left!

0

20

Husqvarna 539105121

FRAME W/DECALS (KAW)

$

$

Not available

20

Husqvarna 539105120

FRAME W/DECALS (KOHLER)

$

$

Not available

21

Husqvarna 539990546

NUT 3/8C CENTERLOCK

$

$

Not available

22

Husqvarna 539990563

HCS 3/8C X 1
(Superseded to 596564401)

$4.99

$

In Stock, Qty 7

0

23

Husqvarna 539104595

BUMPER, FRONT

$

$

Not available

24

Husqvarna 539104594

CASTER TIRE(COMPLETE)
(Superseded to 539106993)

$113.99

$

In Stock, only 2 left!

0

24

Husqvarna 539106993

CASTER TIRE(COMPLETE) AFTER 04/2002

$113.99

$

In Stock, only 2 left!

0

24

Husqvarna 539103495

TIRE

$85.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539106995

TIRE - AFTER 04/2002
(Superseded to 539114697)

$

$

Not available

24

Husqvarna 539104600

RIM

$

$

Not available

24

Husqvarna 539106994

RIM - AFTER 04/2002

$

$

Not available

24

Husqvarna 539105307

ROLLER BEARING

$13.99

$

In Stock, Qty 7

0

24

Husqvarna 539103300

ZERK
(Superseded to 542164296)

$3.49

$

In Stock, only 2 left!

0

24

Husqvarna 539102484

FLANGED BEARING

$5.99

$

In Stock, Qty 9

0

25

Husqvarna 539105543

SPACER

$11.99

$

In Stock, Qty 9

0

26

Husqvarna 539101907

HCS 1/2C X 5 1/2

$13.99

$

In Stock, Qty 8

0

27

Husqvarna 539104589

YOKE WELDMENT

$398.99

$

In Stock, Qty 5

0

28

Husqvarna 539101331

NUT 1/2C NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 539101232

FLANGE BUSHING

$13.99

$

In Stock, Qty 16

0

30

Husqvarna 539101474

ZERK
(Superseded to 596623501)

$3.49

$

In Stock, Qty 10

0

31

Husqvarna 539923787

MACHINERY BUSHING

$3.49

$

In Stock, only 1 left!

0

32

Husqvarna 539101151

7/8" RETAINING RING

$

$

Not available

33

Husqvarna 539103241

PUMP BELT

$39.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539101177

KEY 5 MM SQ. X 25 MM

$5.99

$

In Stock, only 2 left!

0

35

Husqvarna 539101176

PULLEY

$

$

Not available

36

Husqvarna 539102717

5/16C X 5/8 SQ. HEAD

$3.49

$

In Stock, only 2 left!

0

37

Husqvarna 539976688

IDLER PULLEY
(Superseded to 596739801)

$37.99

$

In Stock, Qty 8

0

38

Husqvarna 539990730

HCS 3/8C X 1 3/4
(Superseded to 596583901)

$3.49

$

In Stock, Qty 11

0

39

Husqvarna 539976695

IDLER FLANGE BUSHING

$

$

Not available

40

Husqvarna 539103252

IDLER ARM WELDMENT

$

$

Not available

41

Husqvarna 539103300

45 DEG. ZERK
(Superseded to 542164296)

$3.49

$

In Stock, only 2 left!

0

42

Husqvarna 539103429

PIVOT BUSHING

$

$

Not available

43

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, only 1 left!

0

44

Husqvarna 539102337

TENSION ROD

$20.99

$

In Stock, Qty 6

0

45

Husqvarna 539990365

COTTER PIN
(Superseded to 596029501)

$3.49

$

In Stock, Qty 5

0

46

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

47

Husqvarna 539104533

TENSION BRACKET

$

$

Not available

48

Husqvarna 539102817

COMPRESSION SPRING

$

$

Not available

49

Husqvarna 539105162

BATTERY GUARD W/DECALS

$

$

Not available

50

Husqvarna 539102501

BATTERY STRAP

$

$

Not available

51

Husqvarna 539105119

ENGINE GUARD W/DECALS

$

$

Not available

52

Husqvarna 539103275

THROTTLE CABLE

$31.99

$

In Stock, only 2 left!

0

53

Husqvarna 539990411

#10-24 X 1/2 HCS

$

$

Not available

54

Husqvarna 539976977

#10-24 NYLOC NUT
(Superseded to 596040801)

$3.49

$

In Stock, Qty 20+

0

55

Husqvarna 539104833

DECAL, ZTH4218

$

$

Not available

55

Husqvarna 539105602

DECAL, ZTH4221

$

$

Not available

55

Husqvarna 539104835

DECAL, ZTH4818

$

$

Not available

55

Husqvarna 539104836

DECAL, ZTH4820

$

$

Not available

55

Husqvarna 539105077

DECAL, ZTH4821

$

$

Not available

56

Husqvarna 539990629

HCS 3/8C X 2 1/4 GD5
(Superseded to 874520636)

$

$

Not available

57

Husqvarna 539104614

WEIGHT BLOCK

$

$

Not available

58

Husqvarna 539102733

CHOKE CONTROL (KOHLER)

$62.99

$

In Stock, only 3 left!

0
