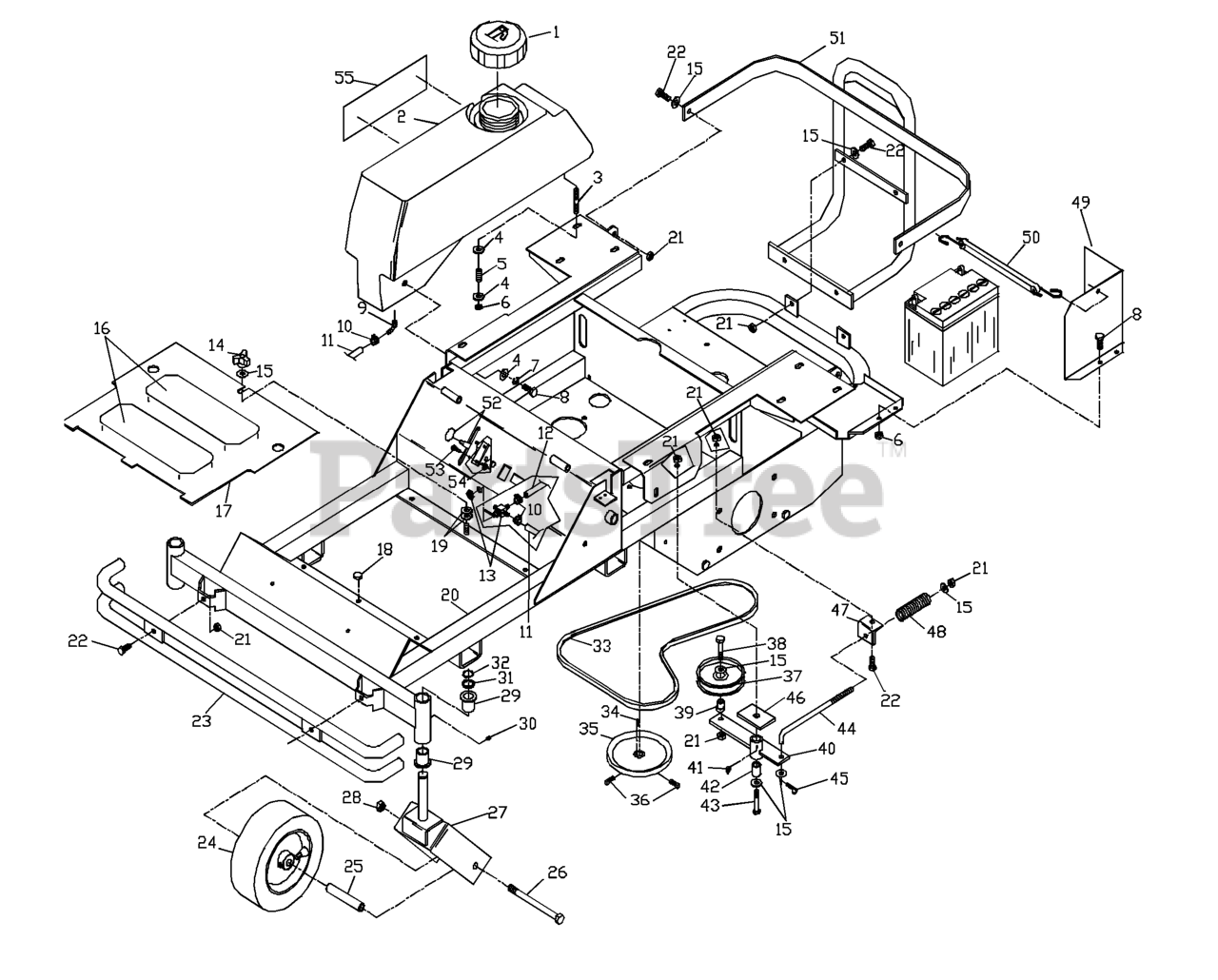

ZTHKW 4218 (968999167) - Husqvarna 42" Zero-Turn Mower, Kawasaki (2000-05) Main Frame Assembly Parts Diagram

42" Zero-Turn Mower, Kawasaki

Main Frame Assembly Parts Diagram

  • Title

1

Husqvarna 539104962

FUEL CAP
(Superseded to 539106188)

$37.99

$

In Stock, Qty 8

0

2

Husqvarna 539104410

FUEL TANK RT

$

$

Not available

2

Husqvarna 539104409

LEFT TANK W/CUP HOLDER

Note: (NOT SHOWN)

$

$

Not available

3

Husqvarna 539102502

STUD, 5/16C

$

$

Not available

4

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 539102845

SPRING

$3.99

$

In Stock, only 1 left!

0

6

Husqvarna 539990184

NUT 5/16C CENTERLOCK
(Superseded to 596580701)

$3.99

$

In Stock, Qty 14

0

7

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 539102650

HOSE BARB 90 DEGREE

$

$

Not available

10

Husqvarna 539912222

HOSE CLAMP

$3.99

$

In Stock, only 1 left!

0

11

Husqvarna 539102680

FUEL LINE 21.5" TANK
(Superseded to 539115707)

$8.49

$

Usually ships in 3-10 days

0

12

Husqvarna 539102681

FUEL LINE, ENGINE

$

$

Not available

13

Husqvarna 539102679

FUEL VALVE
(Superseded to 598462501)

$53.99

$

In Stock, only 2 left!

0

14

Husqvarna 539102070

KNOB, THREE PRONG

$5.99

$

In Stock, only 2 left!

0

15

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539977778

ANTI-SKID PAD

$4.99

$

In Stock, Qty 9

0

17

Husqvarna 539104590

FOOTPLATE
(Superseded to 539103242)

$

$

Not available

18

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 6

0

19

Husqvarna 539102593

WASHER, 3/8 DISC SPRING SPEC

$3.99

$

In Stock, only 4 left!

0

20

Husqvarna 539105134

FRAME W/DECALS

$

$

Not available

20

Husqvarna 539105133

FRAME W/DECALS (KOHLER)

$

$

Currently unavailable

21

Husqvarna 539990546

NUT 3/8C CENTERBLOCK
(Superseded to 595305901)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

$4.99

$

In Stock, Qty 9

0

23

Husqvarna 539104595

BUMPER, FRONT

$

$

Not available

24

Husqvarna 539104594

TIRE, CASTER (COMPLETE)
(Superseded to 539106993)

$113.99

$

In Stock, Qty 7

0

24

Husqvarna 539103495

TIRE.11X4.00-5NHS.4PR.SMOOTH

$85.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539104600

RIM

$

$

Not available

24

Husqvarna 539917785

ROLLER BEARING 1"

$

$

Not available

24

Husqvarna 539103300

ZERK
(Superseded to 542164296)

$3.99

$

In Stock, only 1 left!

0

24

Husqvarna 539102484

BEARING RETAINER

$5.99

$

In Stock, Qty 20+

0

24

Husqvarna 539103496

ROLLER BEARING 2 1/4"

$

$

Not available

25

Husqvarna 539101872

SPACER

$29.99

$

In Stock, only 2 left!

0

26

Husqvarna 539101907

HCS 1/2C X 5 1/2

$13.99

$

In Stock, Qty 6

0

27

Husqvarna 539104589

YOKE WELDMENT ORANGE

$418.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 539101232

BUSHING, FLANGED

$13.99

$

In Stock, Qty 14

0

30

Husqvarna 539101474

ZERK
(Superseded to 596623501)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539923787

BSHG .875 X 1.375 X .074 ZD

$3.99

$

In Stock, only 1 left!

0

32

Husqvarna 539101151

RETAINING RING, 7/8"

$

$

Not available

33

Husqvarna 539103241

PUMP BELT

$39.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539101177

KEY 5 MM SQ X 25 MM

$5.99

$

In Stock, only 2 left!

0

35

Husqvarna 539101176

PULLEY

$

$

Not available

36

Husqvarna 539102717

SCREW 5/16C X 5/8 SQ HEAD

$

$

Not available

37

Husqvarna 539976688

IDLER PULLEY
(Superseded to 596739801)

$41.99

$

In Stock, only 2 left!

0

38

Husqvarna 539990730

HCS 3/8-16 X 1 3/4 GR5
(Superseded to 596583901)

$3.99

$

In Stock, Qty 8

0

39

Husqvarna 539976695

BUSHING, IDLER FLANGE

$

$

Not available

40

Husqvarna 539103252

IDLER ARM WELDMENT

$

$

Not available

41

Husqvarna 539103300

ZERK
(Superseded to 542164296)

$3.99

$

In Stock, only 1 left!

0

42

Husqvarna 539103429

PIVOT BUSHING

$

$

Not available

43

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 15

0

44

Husqvarna 539102337

TENSION ROD

$20.99

$

In Stock, Qty 6

0

45

Husqvarna 539990037

COTTER PIN 3/32 X 3/4

$7.49

$

Usually ships in 3-10 days

0

46

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

47

Husqvarna 539104533

TENSION BRACKET

$

$

Not available

48

Husqvarna 539102817

COMPRESSION SPRING

$

$

Not available

49

Husqvarna 539105162

BATTERY GUARD W/DECA

$

$

Not available

50

Husqvarna 539102501

BATTERY STRAP

$

$

Not available

51

Husqvarna 539105119

ENGINE GUARD W/DECAL

$

$

Not available

52

Husqvarna 539103275

THROTTLE CABLE

$31.99

$

In Stock, Qty 5

0

53

Husqvarna 539990411

HCS #10-24 X 1/2
(Superseded to 596582801)

$3.99

$

In Stock, Qty 20+

0

54

Husqvarna 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.99

$

In Stock, Qty 20+

0

55

Husqvarna 539104835

DECAL, ZTH4818

$

$

Not available
