ZTHKW 4818 A (968999168) - Husqvarna 48" Zero-Turn Mower, Kawasaki (2002-09) Park Brake Assembly Parts Diagram

48" Zero-Turn Mower, Kawasaki

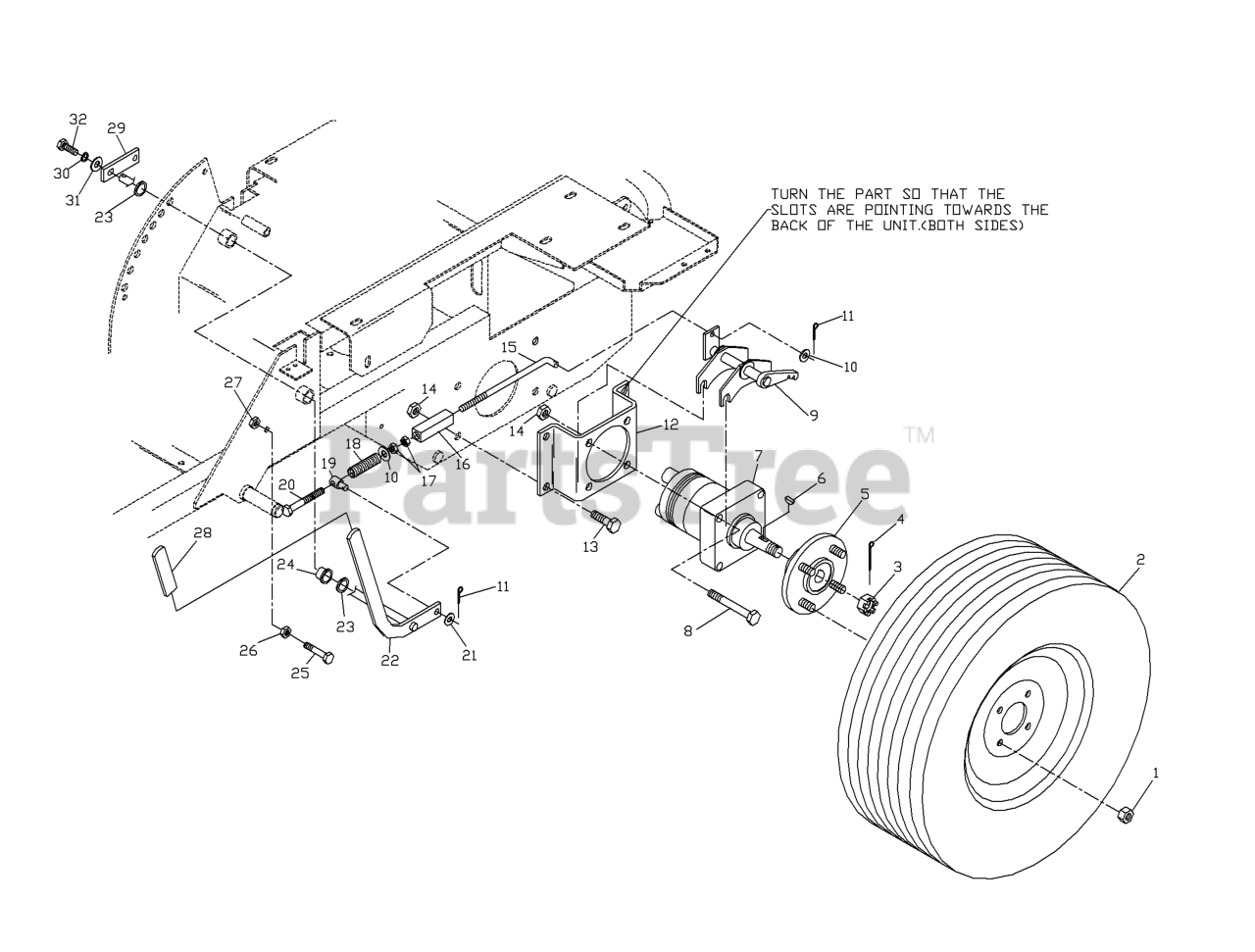

Park Brake Assembly Parts Diagram

  • Title

1

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

2

Husqvarna 539105164

TIRE & WHEEL ASM GRAY

Note: (COMPLETE)

$

$

Not available

2

Husqvarna 539105165

TIRE 20X10-10

$

$

Not available

2

Husqvarna 539105166

MODULAR RIM OFFSET

$

$

Not available

2

Husqvarna 539912234

VALVE STEM TR-412

$4.99

$

In Stock, Qty 16

0

3

Husqvarna 539101468

NUT 3/4-16 HEX SLTD GR5 ZD

$

$

Not available

4

Husqvarna 539990297

COTTER PIN

$

$

Not available

5

Husqvarna 539103244

HUB W/SPROCKET

$

$

Not available

6

Husqvarna 539101465

KEY, #808 WOODRUFF

$

$

Not available

7

Husqvarna 539102705

WHEEL MOTOR

$

$

Not available

8

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 2 left!

0

9

Husqvarna 539103266

BRAKE WELDMENT, LEFT

$

$

Not available

9

Husqvarna 539103265

BRAKE WELDMENT, RIGHT

Note: (NOT SHOWN)

$

$

Not available

10

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 596029501)

$3.49

$

In Stock, only 2 left!

0

12

Husqvarna 539103255

MOTOR STANDOFF

$

$

Not available

13

Husqvarna 539990622

HCS 1/2C X 1 1/4 SERRATED HEAD

$

$

Not available

14

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 539103273

BRAKE LINKAGE

$

$

Not available

16

Husqvarna 539101983

TURNBUCKLE

$

$

Not available

17

Husqvarna 539990196

NUT 5/16C HEX

$1.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539102796

SPRING

$

$

Not available

19

Husqvarna 539103272

BRAKE SWIVEL

$

$

Not available

20

Husqvarna 539103304

HCS 5/16C, SPECIAL

$

$

Not available

21

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

22

Husqvarna 539103574

PIVOT SHAFT WELDMENT

$

$

Not available

23

Husqvarna 539102843

WASHER, 7/16 DISC SPRING
(Superseded to 539115528)

$

$

Not available

24

Husqvarna 539102519

BUSHING

$

$

Not available

25

Husqvarna 539990730

HCS 3/8-16 X 1 3/4 GR5
(Superseded to 596583901)

$3.49

$

In Stock, Qty 9

0

26

Husqvarna 539990613

NUT 3/8C WHIZ

$

$

Not available

27

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

28

Husqvarna 539976526

GRIP

$3.49

$

In Stock, only 1 left!

0

29

Husqvarna 539103576

ARM, PARK BRAKE

$

$

Not available

30

Husqvarna 539990052

LOCKWASHER 1/4"
(Superseded to 596564801)

$3.49

$

Usually ships in 3-10 days

0

31

Husqvarna 539990598

WASHER 1/4 FLAT
(Superseded to 597338501)

$17.99

$

In Stock, Qty 20+

0

32

Husqvarna 539990072

HCS 1/4C X 5/8
(Superseded to 596582501)

$3.49

$

Usually ships in 3-10 days

0
