ZTR 3014 - Dixon Zero-Turn Mower (1999)

Zero-Turn Mower

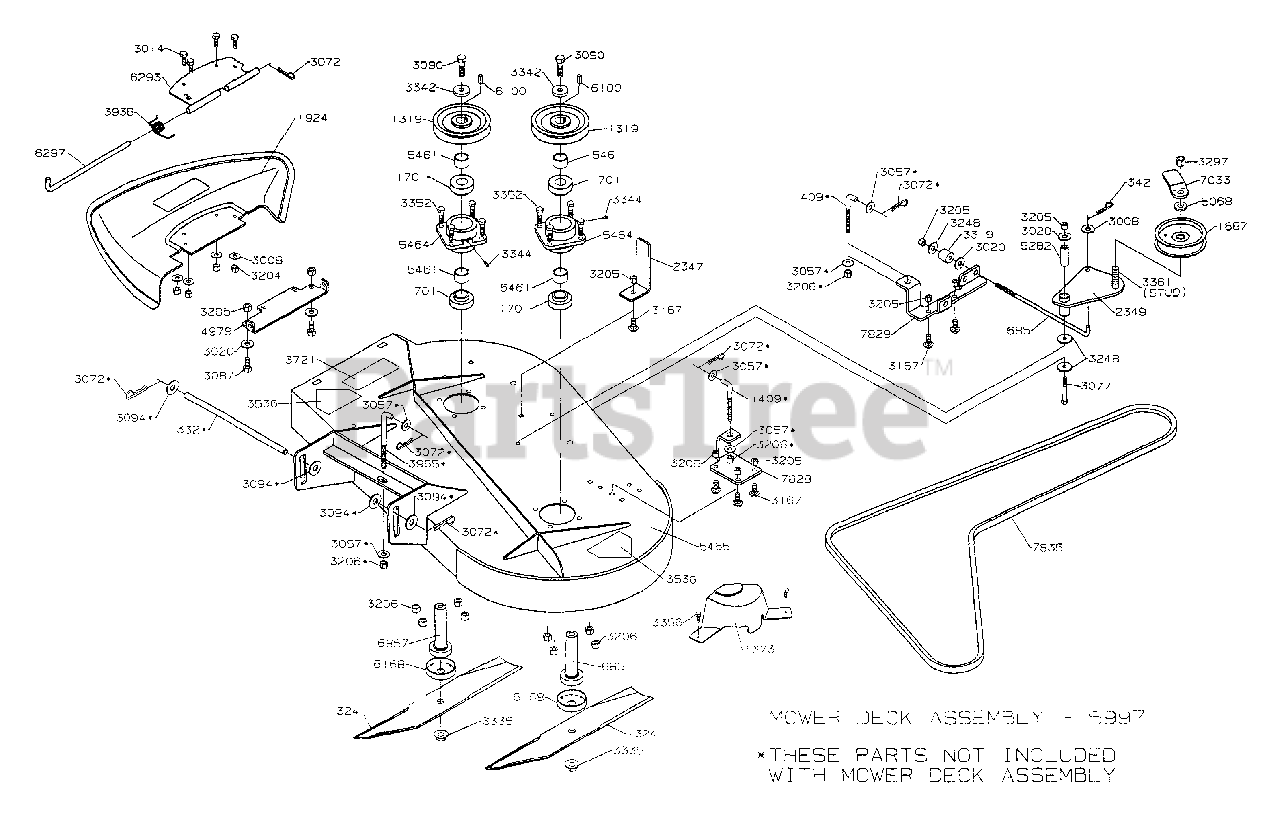

ZTR 3014 - Dixon Zero-Turn Mower (1999) > Parts Diagrams (6) > MOWER DECK 36"

  • Title
1319

1319

PULLEY 5` B-PULLEY

Part# 1319

OEM Warranty Repair Part for Dixon

Not available

1324

1324

BLD 36` LO LIFT(REF124121)

Part# 1324

Not available

1332

1332

PLATED SHAFT - 12.50

Part# 1332

Not available

1373

1373

PULLEY GUARD

Part# 1373

Not available

1409

1409

L ROD 3-7/8

Part# 1409

Not available

1685

1685

L-ROD

Part# 1685

Not available

1687

1687

PULLEY IDLER

Part# 1687

Not available

1701

1701

BEARING-ECC LOCK

Part# 1701

Not available

1924

1924

PLASTIC DEFLECTOR 36

Part# 1924

Not available

2347

2347

DECK STOP

Part# 2347

Not available

2349

2349

R/B 2349 PLATE - TENSIONER

Part# 2349

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

Part# 3008

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

Part# 3014

Not available

3020

3020

5/16STD FLAT WASHER.

Part# 3020

Not available

3057

3057

WASHER, 3/8 STD FLAT

Part# 3057

Not available

3072

3072

Part# 3072

Not available

3077

3077

5/16-18X2-3/4HHB GR5

Part# 3077

OEM Warranty Repair Part for Dixon

Not available

3087

3087

5/16-18X3/4 HHB GR5

Part# 3087

Not available

3090

3090

1/2-20UNFX1 1/4HHBLT

Part# 3090

Not available

3094

3094

1/2 STD FLAT WASHER

Part# 3094

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

Part# 3167

Not available

3204

3204

1/4-20 HEX NUT W/NY

Part# 3204

Not available

3205

3205

5/16-18 HX NUT W/NY.

Part# 3205

Not available

3206

3206

3/8-16UNC HEX L-NUT

Part# 3206

Not available

3248

3248

5/16IDX1/8THK WASHER

Part# 3248

Not available

3297

3297

R/B 3297 1/2-13UNC H JAML-NUT

Part# 3297

OEM Warranty Repair Part for Dixon

Not available

3319

3319

IDLER SHOCK MOUNT

Part# 3319

Not available

3335

3335

R/B 6671 5/8-18 HEX FLANGE NU

Part# 3335

Not available

3342

3342

WASHER.525X1.375X.25

Part# 3342

Not available

3344

3344

ZERK, 3/16, DRIVE IN

Part# 3344

Not available

3352

3352

HCS 3/8C X 1 1/4

Part# 3352

Not available

3356

3356

SCREW, TAP & DR #12-14 X 3/4

Part# 3356

Not available

3361

3361

STUD 1/2-13 X 2

Part# 3361

Not available

3421

3421

COTTER HP .08DIAX1.19

Part# 3421

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

Part# 3536

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

Part# 3721

Not available

3938

3938

DEFLECTOR SPRING

Part# 3938

Not available

3965

3965

L-ROD 6.0

Part# 3965

Not available

4979

4979

HINGE

Part# 4979

Not available

5068

5068

HD PULLEY SPACER

Part# 5068

Not available

5282

5282

BUSHING 1.90

Part# 5282

Not available

5461

5461

SPACER HUB

Part# 5461

Not available

5464

5464

HUB DECK MACHINED

Part# 5464

Not available

5465

5465

DECK WLDT 36

Part# 5465

Not available

5997

5997

R/B 2806 DECK ASM 36 Z

Part# 5997

Not available

6100

6100

OUTER SHAFT KEY

Part# 6100

Not available

6168

6168

TRASH GUARD

Part# 6168

Not available

6293

6293

DEFLECTOR MT BRKT

Part# 6293

Not available

6297

6297

DEFLECTOR PIN

Part# 6297

Not available

6857

6857

R/B 6857 SHAFT ASM WLDT

Part# 6857

Not available

7033

7033

BELT GUARD BLK

Part# 7033

Not available

7828

7828

DECK HANGER LH

Part# 7828

Not available

7829

7829

DECK HANGER RH

Part# 7829

Not available

7835

7835

V-BELT DECK DRIVE

Part# 7835

Not available
