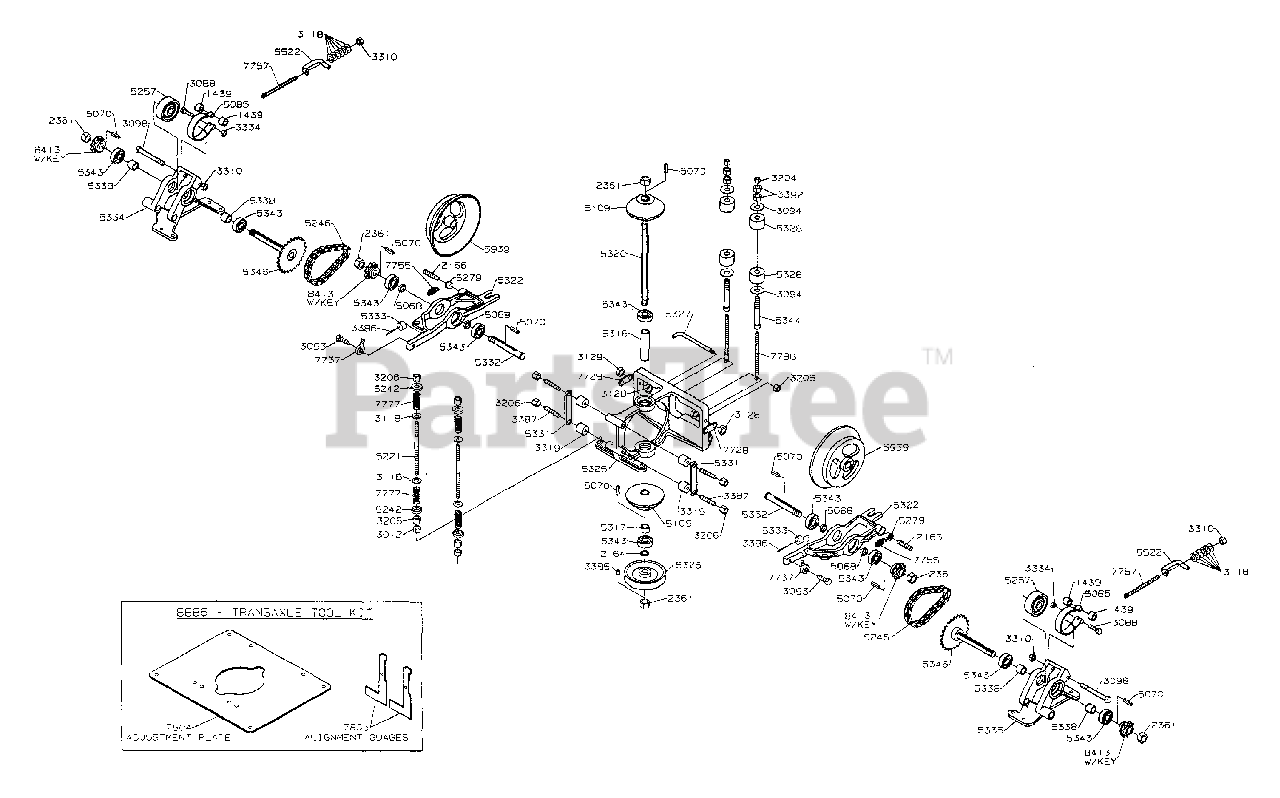

ZTR 3014 - Dixon Zero-Turn Mower (1999) > Parts Diagrams (6) > TRANSAXLE

  • Title
1439

1439

SPACER

Part# 1439

Not available

2164

2164

SUPPORT SPRKT SPACER

Part# 2164

Not available

2166

2166

PIVOT BOLT

Part# 2166

Not available

2361

2361

5/8-11 HEX NUT W/NYLOCK

Part# 2361

Not available

3012

3012

3/8-16 UNC HEX NUT

Part# 3012

Not available

3088

3088

1/4-20X1 HHB GR5

Part# 3088

Not available

3093

3093

5/16-18X1 HHB GR5

Part# 3093

Not available

3094

3094

1/2 STD FLAT WASHER

Part# 3094

Not available

3098

3098

5/16-18X3 HHB GR5

Part# 3098

Not available

3118

3118

DISCSPRING .75ODX.38

Part# 3118

Not available

3128

3128

CHAIN

Part# 3128

Not available

3204

3204

1/4-20 HEX NUT W/NY

Part# 3204

Not available

3205

3205

5/16-18 HX NUT W/NY.

Part# 3205

Not available

3206

3206

3/8-16UNC HEX L-NUT

Part# 3206

Not available

3310

3310

5/16-18 THIN PROF NY

Part# 3310

Not available

3319

3319

IDLER SHOCK MOUNT

Part# 3319

Not available

3334

3334

1/4-20 THIN PROF NY

Part# 3334

Not available

3385

3385

Part# 3385

Not available

3386

3386

ROLL PIN 3/16 X1-1/4

Part# 3386

Not available

3387

3387

3/8-16X2.25SOC HD SS

Part# 3387

Not available

3392

3392

NUT, HEX JAM 1/2-13

Part# 3392

Not available

3586

3586

DECAL, MODEL 311

Part# 3586

Not available

5068

5068

HD PULLEY SPACER

Part# 5068

Not available

5070

5070

KEY, 3/16 SQ X .88

Part# 5070

Not available

5085

5085

BRAKE BAND

Part# 5085

Not available

5109

5109

CONE (1)

Part# 5109

Not available

5221

5221

POS. NEUTRAL ROD

Part# 5221

OEM Warranty Repair Part for Dixon

Not available

5242

5242

PLUG W/HOLE - FLAT

Part# 5242

Not available

5246

5246

R/B 5246 CHAIN RS40 30P

Part# 5246

Not available

5257

5257

BRAKE DRUM

Part# 5257

Not available

5279

5279

BUSHING, PIVOT

Part# 5279

OEM Warranty Repair Part for Dixon

Not available

5316

5316

SPACER - 3.467

Part# 5316

Not available

5317

5317

SPACER - .545

Part# 5317

Not available

5320

5320

CENTER SHAFT

Part# 5320

Not available

5322

5322

CRADLE MACHINED

Part# 5322

Not available

5325

5325

CNTR SECTION MACH

Part# 5325

Not available

5326

5326

TRANSAXLE PULLEY

Part# 5326

Not available

5327

5327

L-ROD REAR SPG MT

Part# 5327

Not available

5328

5328

RUBBER SPRING-CRADLE

Part# 5328

OEM Warranty Repair Part for Dixon

Not available

5331

5331

ROLLER PLATE

Part# 5331

Not available

5332

5332

CRADLE SHAFT

Part# 5332

Not available

5333

5333

CRADLE ROLLER

Part# 5333

Not available

5334

5334

SUPPORT MACHINED RH

Part# 5334

Not available

5335

5335

SUPPORT MACHINED LH

Part# 5335

Not available

5338

5338

SPACER - .721

Part# 5338

Not available

5343

5343

TRANSAXLE BRG .625" BORE

Part# 5343

Not available

5344

5344

REAR SPG MOUNT TUBE

Part# 5344

Not available

5346

5346

24T SPROCKET WLDT

Part# 5346

Not available

5522

5522

RH BRAKE LINK

Part# 5522

Not available

5939

5939

DISCUP MACHINED (Z)

Part# 5939

Not available

7728

7728

SPRING ANCHOR

Part# 7728

Not available

7737

7737

ROD END LH

Part# 7737

Not available

7755

7755

CRADLE SPRING

Part# 7755

Not available

7757

7757

BRAKE ROD

Part# 7757

Not available

7777

7777

SPRING

Part# 7777

Not available

7786

7786

EYE ROD END

Part# 7786

Not available

7803

7803

ALIGNMENT GAGE

Part# 7803

Not available

7804

7804

TRANS ADJUSTMENT PLATE

Part# 7804

Not available

8413

8413

R/B 8413 SPROCKET - 9T

Part# 8413

Not available

8886

8886

KIT 2301 TRANS TOOL

Part# 8886

Not available
