ZTR 3014 - Dixon Zero-Turn Mower (2000) MOWER DECK 36" Parts Diagram

Zero-Turn Mower

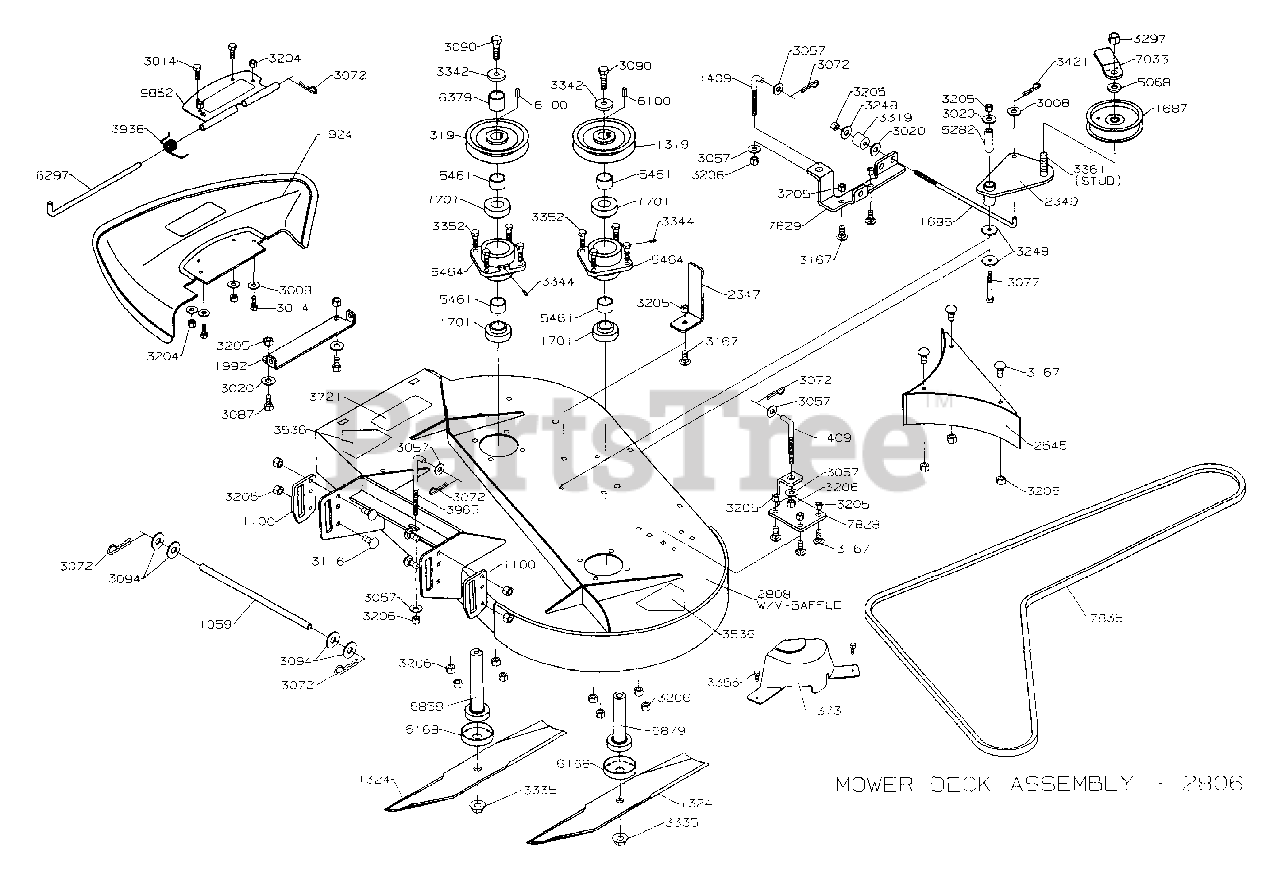

MOWER DECK 36" Parts Diagram

  • Title

1059

1059

PLATED SHAFT - 13.0

$

$

Not available

1100

Dixon 1100

PLATE SLOT

$

$

Not available

1319

Dixon 1319

PULLEY 5` B-PULLEY

$

$

Not available

1324

1324

BLD 36` LO LIFT(REF124121)

$

$

Not available

1373

1373

PULLEY GUARD

$

$

Not available

1409

1409

L ROD 3-7/8

$

$

Not available

1685

1685

L-ROD

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1924

1924

PLASTIC DEFLECTOR 36

$

$

Not available

1992

1992

HINGE

$

$

Not available

2347

2347

DECK STOP

$

$

Not available

2349

2349

R/B 2349 PLATE - TENSIONER

$

$

Not available

2545

2545

BAFFLE WLDT

$

$

Not available

2806

2806

DECK ASM 36`

$

$

Not available

2808

2808

DECK ASM 36 R/B 539115417

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3077

Dixon 3077

5/16-18X2-3/4HHB GR5

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3090

3090

1/2-20UNFX1 1/4HHBLT

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3319

3319

IDLER SHOCK MOUNT

$

$

Not available

3335

3335

R/B 6671 5/8-18 HEX FLANGE NU

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3352

3352

HCS 3/8C X 1 1/4

$

$

Not available

3356

3356

SCREW, TAP & DR #12-14 X 3/4

$

$

Not available

3361

3361

STUD 1/2-13 X 2

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

3938

3938

DEFLECTOR SPRING

$

$

Not available

3965

3965

L-ROD 6.0

$

$

Not available

5068

5068

HD PULLEY SPACER

$

$

Not available

5282

5282

BUSHING 1.90

$

$

Not available

5461

5461

SPACER HUB

$

$

Not available

5464

5464

HUB DECK MACHINED

$

$

Not available

5879

5879

R/B 13704 SHAFT ASM 42L

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6168

6168

TRASH GUARD

$

$

Not available

6297

6297

DEFLECTOR PIN

$

$

Not available

6379

6379

SPACER 1.25 X 1.39

$

$

Not available

6858

6858

SHAFT ASM 36L

$

$

Not available

7033

7033

BELT GUARD BLK

$

$

Not available

7828

7828

DECK HANGER LH

$

$

Not available

7829

7829

DECK HANGER RH

$

$

Not available

7835

7835

V-BELT DECK DRIVE

$

$

Not available

9852

9852

DEFLECTOR MT BRKT

$

$

Not available
