ZTR 3014 - Dixon Zero-Turn Mower (2001)

Zero-Turn Mower

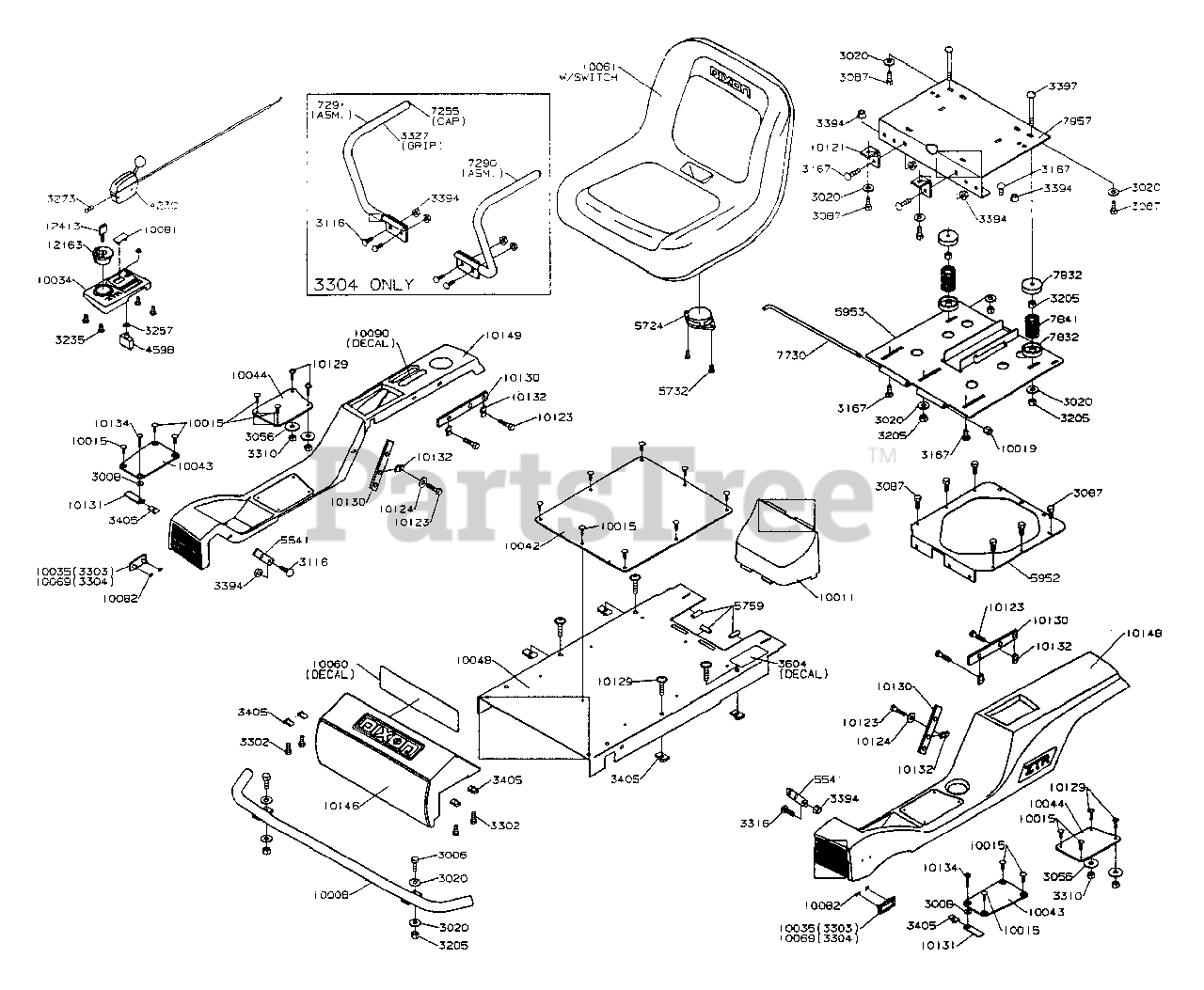

ZTR 3014 - Dixon Zero-Turn Mower (2001) > Parts Diagrams (6) > BODY

  • Title
0008

0008

Part# 0008

Not available

0082

0082

Part# 0082

Not available

1001

1001

Part# 1001

Not available

2020

2020

Part# 2020

Not available

3006

3006

5/16-18X1-1/4HHB GR5

Part# 3006

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

Part# 3008

Not available

3020

3020

5/16STD FLAT WASHER.

Part# 3020

Not available

3056

3056

WASHER, FENDER 5/16

Part# 3056

Not available

3087

3087

5/16-18X3/4 HHB GR5

Part# 3087

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

Part# 3116

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

Part# 3167

Not available

3205

3205

5/16-18 HX NUT W/NY.

Part# 3205

Not available

3235

3235

#10-24X5/8PHIL PANHD

Part# 3235

Not available

3257

3257

7/16 INT TOOTH LWASH

Part# 3257

Not available

3273

3273

PAN HD 8-18 X 3/8 PHIL

Part# 3273

Not available

3302

3302

5/16-18X1/2 WHTF SCR

Part# 3302

Not available

3303

3303

POP RIVET 5/32(LONG)

Part# 3303

Not available

3304

3304

Part# 3304

Not available

3310

3310

5/16-18 THIN PROF NY

Part# 3310

Not available

3316

3316

1/4-20X3/4 CARR BLT

Part# 3316

Not available

3327

3327

SLEEVE 22.5

Part# 3327

Not available

3394

3394

5/16-18 FLANGED L-NUT

Part# 3394

Not available

3397

3397

5/16-18X3 CAR BOLT

Part# 3397

Not available

3405

3405

CLIP NUT 5/16-18

Part# 3405

OEM Warranty Repair Part for Dixon

Not available

3604

3604

DECAL, BLADE DRIVE (3604)

Part# 3604

Not available

4230

4230

THROTTLE CABLE

Part# 4230

Not available

4598

4598

CIRCUIT BREAKER W58XB1A4A15

Part# 4598

Not available

5541

5541

SWIVEL PLATE

Part# 5541

Not available

5724

5724

R/B 10126 SEAT SWITCH

Part# 5724

Not available

5732

5732

Part# 5732

Not available

5759

5759

CLIP - 1-3/16`

Part# 5759

Not available

5952

5952

FRAME STIFFENER

Part# 5952

Not available

5953

5953

SEAT PLATE

Part# 5953

Not available

7255

7255

CAP

Part# 7255

Not available

7290

7290

LH ARM REST WLDT

Part# 7290

Not available

7291

7291

RH ARM REST WLDT

Part# 7291

Not available

7730

7730

SEAT HINGE PIN

Part# 7730

Not available

7832

7832

SPRING CUP

Part# 7832

Not available

7841

7841

SEAT SPRING

Part# 7841

Not available

7957

7957

SPRING SEAT PLATE

Part# 7957

Not available

10015

10015

1/4`NYLON TREE RIVET

Part# 10015

Not available

10019

10019

3/8-16 HEX NUT W/NYL-BLK

Part# 10019

Not available

10034

10034

CONTROL PANEL

Part# 10034

Not available

10035

10035

NAME PLATE 3303

Part# 10035

Not available

10042

10042

CENTER FLOOR PAD

Part# 10042

Not available

10043

10043

FRONT FOOT PAD 3000

Part# 10043

Not available

10044

10044

REAR FLOOR PAD 3000

Part# 10044

Not available

10048

10048

R/B 10020 DECK PAN

Part# 10048

Not available

10060

10060

DECAL, OPERATING INST.

Part# 10060

Not available

10061

10061

SEAT 30`

Part# 10061

Not available

10069

10069

NAME PLATE 3304

Part# 10069

Not available

10081

10081

INSERT(CONTROL PANEL)

Part# 10081

Not available

10082

10082

NUT, 3/16 PUSH

Part# 10082

Not available

10090

10090

DECAL, PARKING BRAKE

Part# 10090

Not available

10121

10121

ANGLE BRACKET

Part# 10121

Not available

10123

10123

R/B 3006 5/16-18 X 1-1/4GR5-B

Part# 10123

Not available

10124

10124

5/16 STD FLAT WASHER-BLK

Part# 10124

Not available

10129

10129

5/16-18X1 FLANGED SCREW

Part# 10129

Not available

10130

10130

STRAP

Part# 10130

Not available

10131

10131

FRONT BODY CLIP

Part# 10131

Not available

10132

10132

CLIP NUT 5/16-18

Part# 10132

Not available

10134

10134

5/16-18X1.5 FLANGED SCRE

Part# 10134

Not available

10146

10146

GRILL ASM 3000

Part# 10146

Not available

10148

10148

LH FENDER ASM 30(LT)

Part# 10148

Not available

10149

10149

Part# 10149

Not available

12163

12163

IGNITION SWITCH

Part# 12163

Not available

12413

12413

KEY MOLDED

Part# 12413

Not available
