ZTR 308 - Dixon Zero-Turn Mower (1982) BODY ASSEMBLY 30" Parts Diagram

Zero-Turn Mower

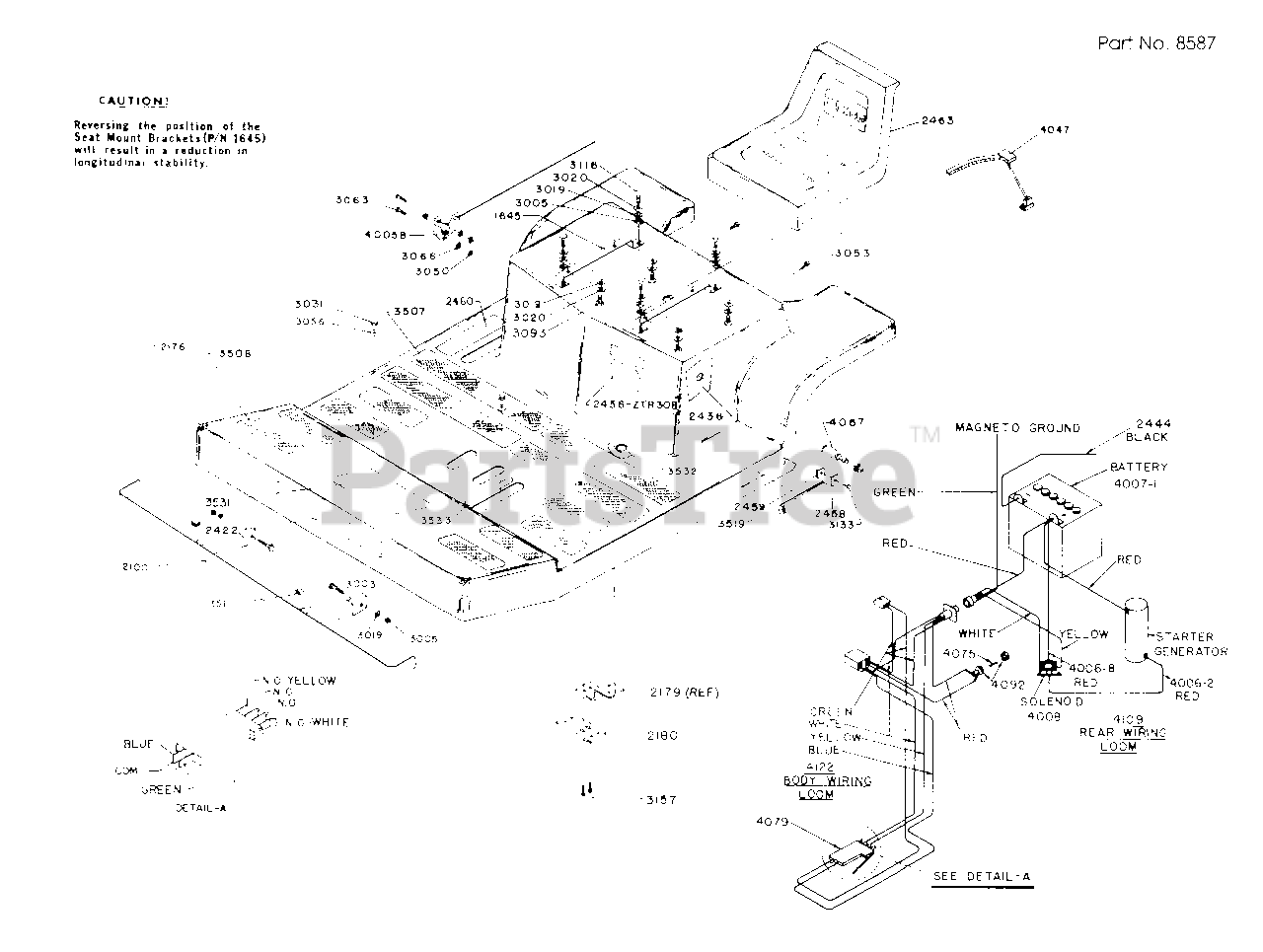

BODY ASSEMBLY 30" Parts Diagram

  • Title

1645

1645

R/B 4148 SEAT BRACKET

$

$

Not available

2100

2100

BUMPER WELDMENT

$

$

Not available

2176

2176

308 BODY ASSY (2176)

$

$

Not available

2179

2179

SWITCH BRACKET BODY

$

$

Not available

2180

2180

SWITCH BRACKET-SWTCH

$

$

Not available

2422

2422

R/B 4219 NAME DECAL

$

$

Not available

2436

2436

SWITCH DECAL

$

$

Not available

2444

2444

R/B 4216 BATT TO GROUND CABLE

$

$

Not available

2456

2456

308 MODEL DECAL

$

$

Not available

2458

2458

PAD RETAINER-OUTER

$

$

Not available

2459

2459

PAD RETAINER-INNER

$

$

Not available

2460

2460

R/B 3746 PARKING BRAKE DECAL

$

$

Not available

2463

2463

R/B 13845 308 SEAT

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3031

3031

5/16 ACORN NUT H-CRN

$

$

Not available

3050

3050

R/B 3208 10-24UNC HEX L-NUT

$

$

Not available

3053

3053

10 X 1 SM SCR SLT HD

$

$

Not available

3056

3056

WASHER, FENDER 5/16

$

$

Not available

3063

3063

10-24UNC X 1-1/4 RHS

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3133

3133

R/B 3133 8 X 1/2 SM SCREW

$

$

Not available

3157

Dixon 3157

R/B 3133 8-32X1/2TR3 WHIZ LOK

$

$

Not available

3507

3507

$

$

Not available

3508

3508

R/B 3508 FRONT FLOOR PAD

$

$

Not available

3511

3511

ADHESIVE BUMPER

$

$

Not available

3519

3519

SCUFF PAD

$

$

Not available

3531

3531

DECAL, OPERATING INST

$

$

Not available

3532

3532

DECAL-BLADE DRIVE

$

$

Not available

3533

3533

DECAL, CUTTING HEIGHT

$

$

Not available

4005B

4005B

$

$

Not available

4006-8

4006-8

$

$

Not available

4006-2

4006-2

$

$

Not available

4007-I

4007-I

$

$

Not available

4008

4008

SOLENOID

$

$

Not available

4047

4047

DNB SPRINGLEAF SWITCH

$

$

Not available

4067

4067

R/B 4067 MAG IGNITION SWITCH

$

$

Not available

4075

4075

15 AMP FUSE

$

$

Not available

4079

4079

BODY SWITCH

$

$

Not available

4092

4092

FUSE HOLDER

$

$

Not available

4109

4109

R/B 8889 REAR WIRING LOOM ASY

$

$

Not available

4122

Dixon 4122

R/B 4115 308-BODY WIRING LOOM

$

$

Not available

8587

8587

308 BODY ASSY (2176)

$

$

Not available
