ZTR 308 - Dixon Zero-Turn Mower (1982) CHASSIS ASSEMBLY 30" Parts Diagram

Zero-Turn Mower

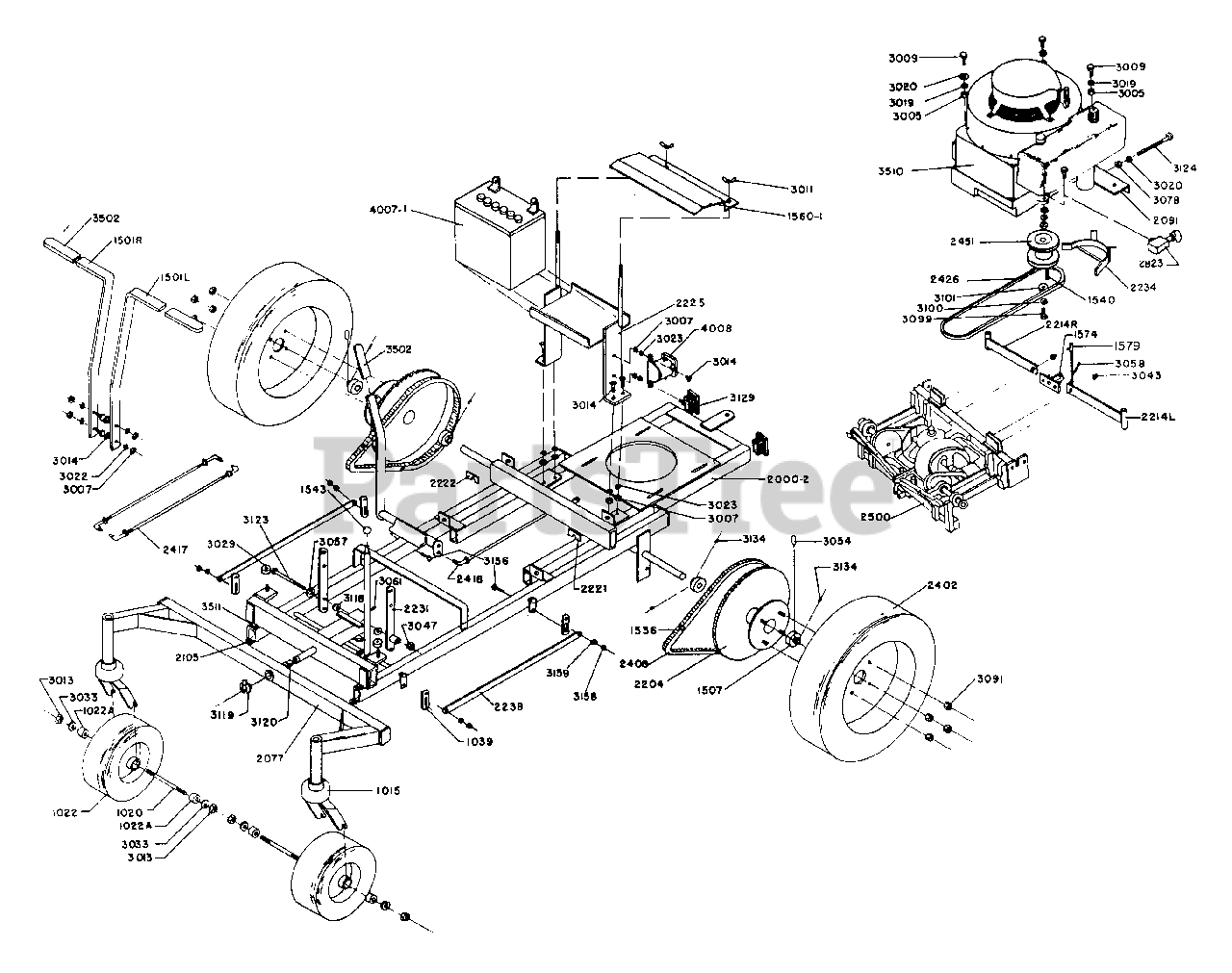

CHASSIS ASSEMBLY 30" Parts Diagram

  • Title

1015

1015

CASTER WLDT

$

$

Not available

1020

1020

R/B 8502 CASTER AXLE

$

$

Not available

1022A

1022A

$

$

Not available

1022

1022

CASTER WHEEL & TIRE

$

$

Not available

1039

1039

LWR LIFT LINK

$

$

Not available

1501L

1501L

$

$

Not available

1501R

1501R

$

$

Not available

1507

1507

WHEEL/DECKHUB BEAR`G

$

$

Not available

1536

1536

#40 RC CONN LINK

$

$

Not available

1540

1540

ENGINE SHAFT KEY

$

$

Not available

1543

Dixon 1543

LIFT KNOB

$

$

Not available

1560-I

1560-I

$

$

Not available

1574

Dixon 1574

COLLAR

$

$

Not available

1579

1579

SHORT BRAKE ROD ASSY

$

$

Not available

2000-2

2000-2

$

$

Not available

2077

2077

$

$

Not available

2091

2091

TENSION BRACKET

$

$

Not available

2105

2105

$

$

Not available

2204

2204

WHEEL HUB MACH

$

$

Not available

2214R

2214R

$

$

Not available

2214L

2214L

$

$

Not available

2221

2221

TRANSAXLE SHIM 16GA

$

$

Not available

2222

2222

R/B 2222 TRANSAXLE SHIM

$

$

Not available

2225

2225

BATTERY BOX WLDT

$

$

Not available

2231

2231

$

$

Not available

2234

2234

R/B 8160 BELT KEEPER WLDT

$

$

Not available

2238

2238

TIE BAR

$

$

Not available

2402

2402

$

$

Not available

2408

2408

DR. CHAIN ASSY#40-92

$

$

Not available

2417

2417

CONTROL ROD ASSY

$

$

Not available

2418

2418

LONG BRAKE ROD ASM

$

$

Not available

2426

2426

TRANSAXLE DRIVE BELT

$

$

Not available

2451

2451

DOUBLE ENGINE PULLEY

$

$

Not available

2500

2500

TRANSAXLE ASM.

$

$

Not available

2823

2823

R/B 12237 OIL DRAIN ASSY

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3011

3011

1/4-20 WING NUT

$

$

Not available

3013

3013

NUT 1/2-13 UNC HEX L

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3022

3022

WASHER 1/4 EXTLW STAR ZD

$

$

Not available

3023

3023

1/4HELICAL L-WASHER

$

$

Not available

3029

3029

FRONT GROMMET

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3043

3043

RETAINER RING

$

$

Not available

3047

3047

NUT, L 3/8-24 UNF HEX

$

$

Not available

3054

3054

PIN, ROLL 3/16 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3058

Dixon 3058

COTTER PIN 1/8 X 2

$

$

Not available

3061

3061

5/16-18X3/8SSS-NY

$

$

Not available

3078

3078

5/16-18UNC HEX L-NUT

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3099

3099

7/16 20UNFX3/4HHB C5

$

$

Not available

3100

3100

7/16 HD FLAT WASHER

$

$

Not available

3101

3101

7/16 HELICAL L-WASH

$

$

Not available

3118

3118

DISCSPRING .75ODX.38

$

$

Not available

3119

3119

RET.RING TRU ARC W75

$

$

Not available

3120

3120

NYLON SHLDR BUSHING

$

$

Not available

3123

3123

3/8-24UNFX4-1/2HHBLT

$

$

Not available

3124

3124

5/16-18 X 6 HHB GR5

$

$

Not available

3129

3129

$

$

Not available

3134

3134

1/4-28X1/4SOC.S.S.

$

$

Not available

3156

Dixon 3156

LIFT LINK PIVOT

$

$

Not available

3158

Dixon 3158

R/B 3205 5/16-18UNC HXLOCKNUT

$

$

Not available

3159

Dixon 3159

DISC SPRING .317 ID

$

$

Not available

3502

3502

HAND GRIP

$

$

Not available

3510

3510

$

$

Not available

3511

3511

ADHESIVE BUMPER

$

$

Not available

4007-I

4007-I

$

$

Not available

4008

4008

SOLENOID

$

$

Not available
