ZTR 311 - Dixon Zero-Turn Mower (1987) BODY ASSEMBLY Parts Diagram

Zero-Turn Mower

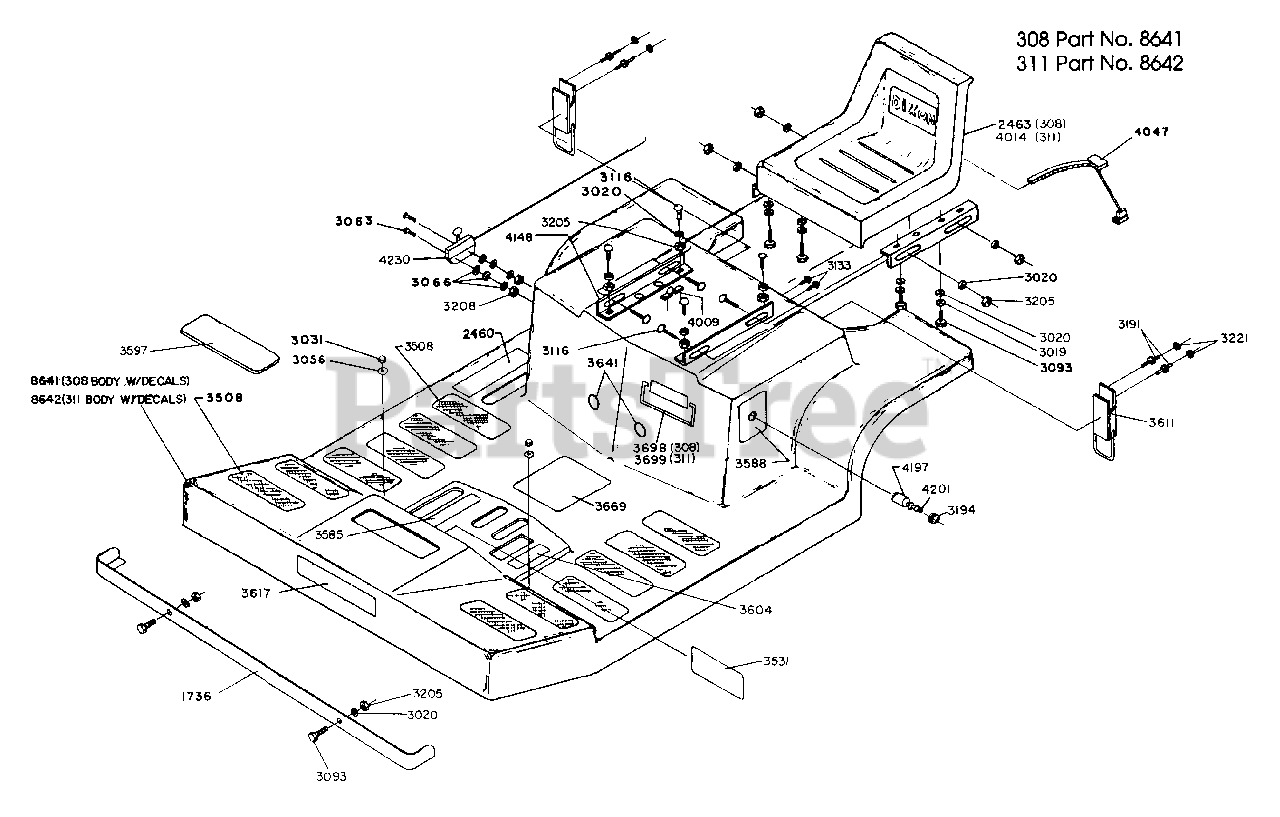

BODY ASSEMBLY Parts Diagram

  • Title
1736

1736

R/B 1241 BUMPER WELDMENT

$

$

Not available

2460

2460

R/B 3746 PARKING BRAKE DECAL

$

$

Not available

2463

2463

R/B 13845 308 SEAT

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3031

3031

5/16 ACORN NUT H-CRN

$

$

Not available

3056

3056

WASHER, FENDER 5/16

$

$

Not available

3063

3063

10-24UNC X 1-1/4 RHS

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3133

3133

R/B 3133 8 X 1/2 SM SCREW

$

$

Not available

3191

Dixon 3191

POP RIVET 5/32 DIA

$

$

Not available

3194

Dixon 3194

R/B 8889 FACE NUT 5/8-32

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3221

3221

R/B 3145 #8 SAE FLAT WASHER

$

$

Not available

3508

3508

R/B 3508 FRONT FLOOR PAD

$

$

Not available

3531

3531

DECAL, OPERATING INST

$

$

Not available

3585

3585

DECAL, CUTTING HEIGHT

$

$

Not available

3588

3588

DECAL - SWITCH

$

$

Not available

3597

3597

$

$

Not available

3604

3604

DECAL, BLADE DRIVE (3604)

$

$

Not available

3611

3611

LATCH

$

$

Not available

3617

3617

R/B 3916 DECAL - DIXON

$

$

Not available

3641

3641

BODY PLUG

$

$

Not available

3669

3669

DECAL, WARNING

$

$

Not available

3698

3698

MODEL DECAL - 308

$

$

Not available

3699

3699

MODEL DECAL - 311

$

$

Not available

4009

4009

WIRE CLIP

$

$

Not available

4014

4014

R/B 13845 SUBURBAN SEAT

$

$

Not available

4047

4047

DNB SPRINGLEAF SWITCH

$

$

Not available

4148

Dixon 4148

R/B 4148 SEAT BRACKET

$

$

Not available

4197

4197

KEY SWITCH

$

$

Not available

4201

4201

KEY (PLAIN)

$

$

Not available

4230

4230

THROTTLE CABLE

$

$

Not available

8641

8641

308 BODY ASSY (2270)

$

$

Not available

8642

8642

311 BODY ASSY (2270)

$

$

Not available
