ZTR 3303 - Dixon Zero-Turn Mower (1997) BODY ASSEMBLY Parts Diagram

Zero-Turn Mower

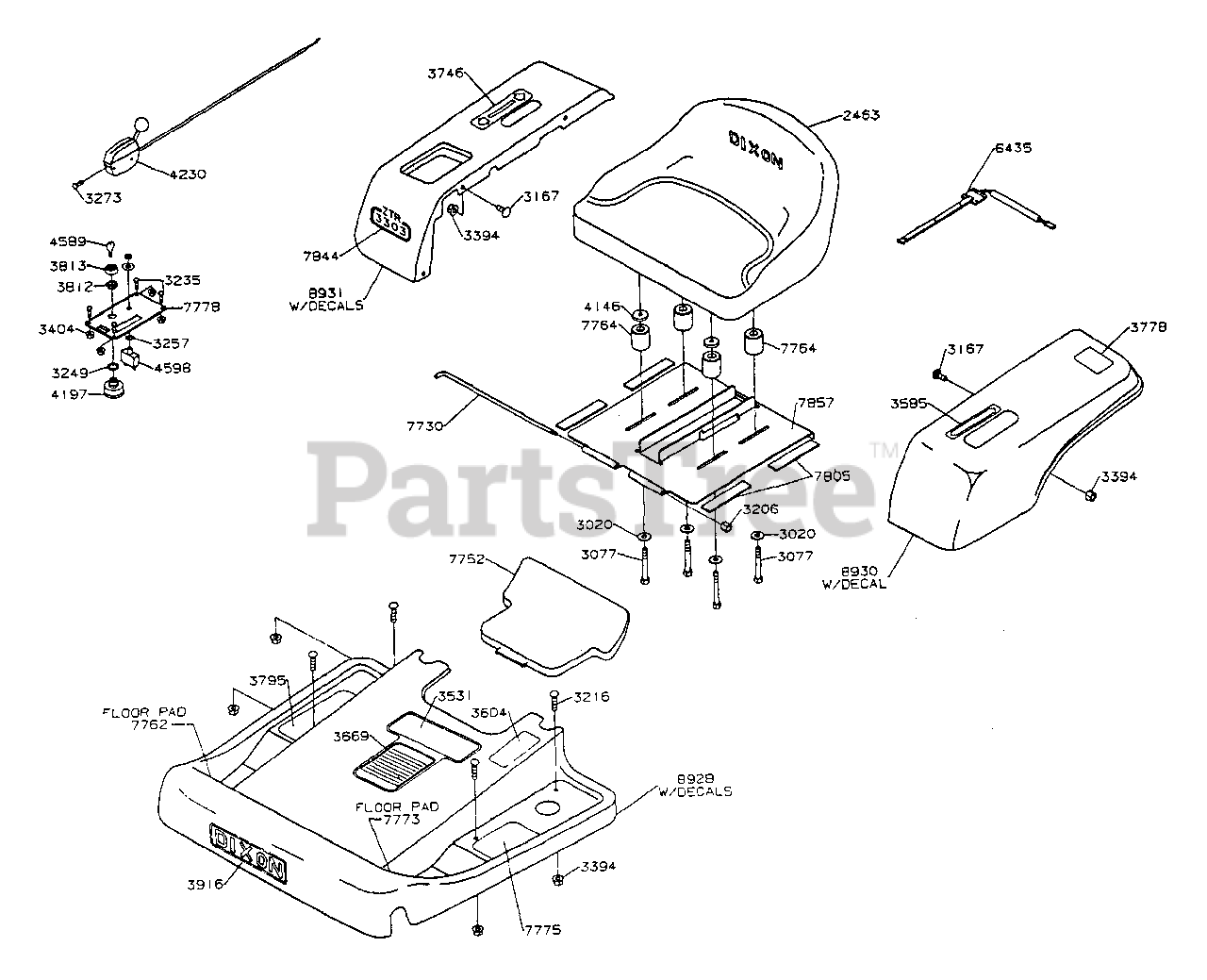

BODY ASSEMBLY Parts Diagram

  • Title

2463

2463

R/B 13845 308 SEAT

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3077

Dixon 3077

5/16-18X2-3/4HHB GR5

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3216

3216

5/16-18X3/4PH PAN HD

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3249

3249

5/8 INT.TOOTH L.W.

$

$

Not available

3257

3257

7/16 INT TOOTH LWASH

$

$

Not available

3273

3273

PAN HD 8-18 X 3/8 PHIL

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3404

Dixon 3404

10-24 HEX FLANGE NUT

$

$

Not available

3531

3531

DECAL, OPERATING INST

$

$

Not available

3585

3585

DECAL, CUTTING HEIGHT

$

$

Not available

3604

3604

DECAL, BLADE DRIVE (3604)

$

$

Not available

3669

3669

DECAL, WARNING

$

$

Not available

3746

3746

TIE BAR

$

$

Not available

3778

Dixon 3778

DECAL, FUEL VALVE

$

$

Not available

3795

3795

FLOOR PAD 4 X 8.00

$

$

Not available

3812

3812

IGNITION NUT

$

$

Not available

3813

3813

PROTECTIVE CAP

$

$

Not available

3916

Dixon 3916

R/B 3916 DECAL - DIXON

$

$

Not available

4146

4146

WASHER NYLON

$

$

Not available

4197

4197

KEY SWITCH

$

$

Not available

4230

4230

THROTTLE CABLE

$

$

Not available

4589

4589

KEY (PLAIN)

$

$

Not available

4598

4598

CIRCUIT BREAKER W58XB1A4A15

$

$

Not available

6435

6435

SEAT SWITCH ASSEMBLY

$

$

Not available

7730

7730

SEAT HINGE PIN

$

$

Not available

7752

7752

BATTERY COVER

$

$

Not available

7762

7762

FRONT FLOOR PAD-RH

$

$

Not available

7764

7764

SEAT SPACER

$

$

Not available

7773

7773

FRONT FLOOR PAD-LH

$

$

Not available

7775

7775

REAR FLOOR PAD-LH

$

$

Not available

7778

7778

CONTROL PANEL

$

$

Not available

7805

7805

FOAM PAD

$

$

Not available

7844

7844

MODEL DECAL - 3303

$

$

Not available

7857

7857

R/B 7857 SEAT PLATE

$

$

Not available

8928

8928

LO BODY ASM 30`

$

$

Not available

8930

8930

LH FENDER W/DECALS

$

$

Not available

8931

8931

RH FENDER W/DECALS

$

$

Not available
