ZTR 422 - Dixon Zero-Turn Mower (1976) SNOW BLADE FOR KODIAK/GRIZZLY Parts Diagram

Zero-Turn Mower

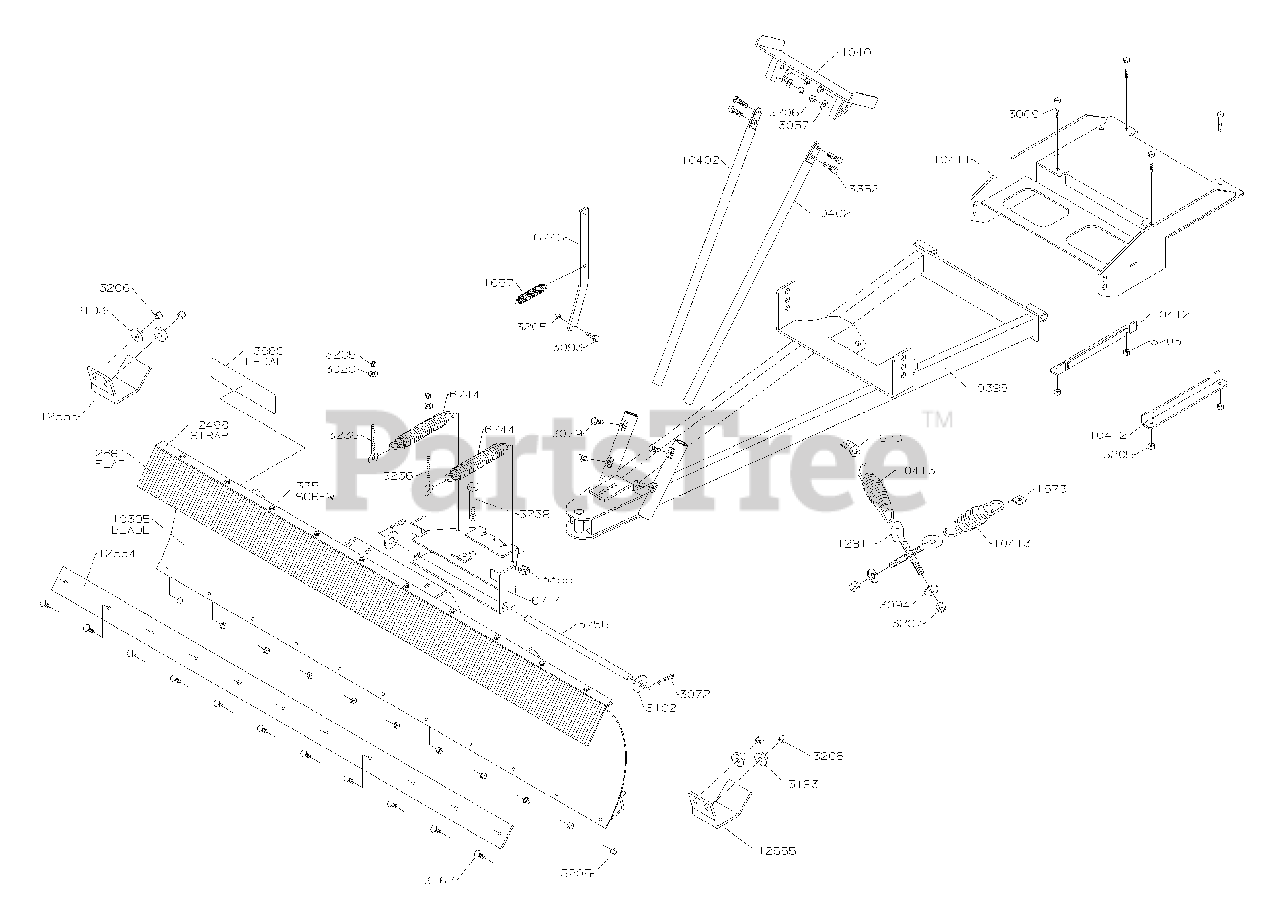

SNOW BLADE FOR KODIAK/GRIZZLY Parts Diagram

  • Title
1657

1657

SPRING

$

$

Not available

1673

1673

SPRING MOUNT

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3079

3079

3/8-16UNC X3/4HH BLT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3102

3102

5/8 STD FLATWASHER

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3236

3236

EYE BOLT 5/16 X 3.50

$

$

Not available

3238

3238

5/8-11 X 3-1/2 HHB

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3352

3352

HCS 3/8C X 1 1/4

$

$

Not available

3388

3388

R/B 3388 5/8 X 11UNC HEX NUT

$

$

Not available

6714

6714

QUADRANT WLDT

$

$

Not available

6744

6744

SPRING

$

$

Not available

6746

6746

TRIP ARM

$

$

Not available

6758

6758

SHAFT 5/8 X 13.75

$

$

Not available

10395

10395

60 SNOW BLADE WLDT.

$

$

Not available

10398

10398

BLADE FRAME WLDT.

$

$

Not available

10401

10401

FOOT PLATE WLDT.

$

$

Not available

10402

10402

TUBE WLDT.

$

$

Not available

10411

10411

FRAME MT. WLDT.

$

$

Not available

10412

10412

CLAMP

$

$

Not available

10413

10413

SPRING

$

$

Not available

12498

12498

60 S/B FLAP STRAP

$

$

Not available

12554

12554

BLADE EDGE

$

$

Not available

12555

12555

BLADE SHOE

$

$

Not available

12684

12684

60 SNOW BLADE FLAP

$

$

Not available

12811

12811

$

$

Not available

13989

13989

DECAL, DIXON

$

$

Not available

951

951

$

$

Not available
