ZTR 424 - Dixon Zero-Turn Mower (1983) MOWER DECK ASSEMBLY Parts Diagram

Zero-Turn Mower

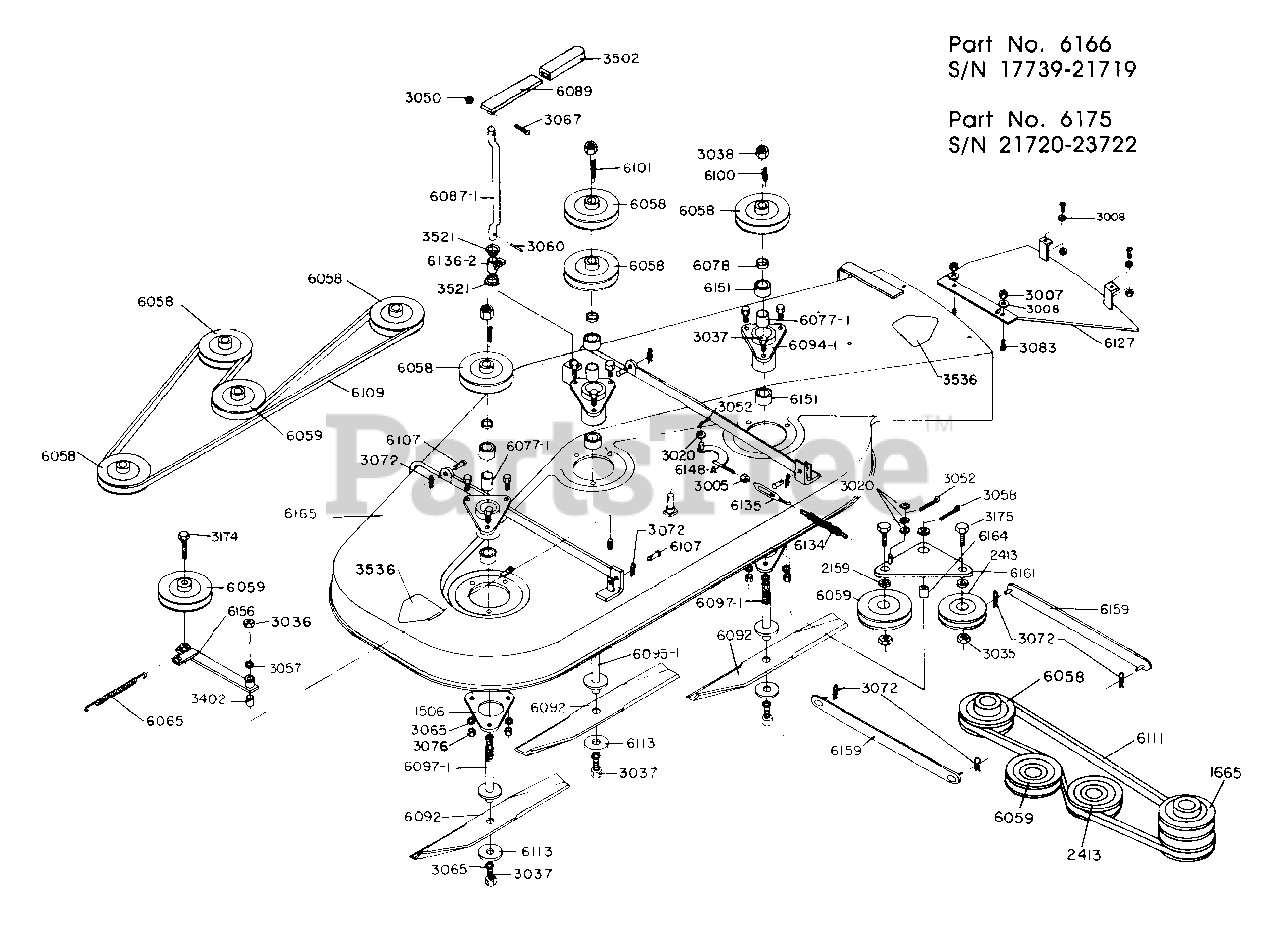

MOWER DECK ASSEMBLY Parts Diagram

  • Title

1506

1506

HUB FLANGE

$

$

Not available

1665

1665

PULLEY DOUBLE

$

$

Not available

2159

2159

TUBE .51 I.D. X .75 O.D.

$

$

Not available

2413

2413

V-IDLER PULLEY

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3035

Dixon 3035

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3036

Dixon 3036

3/8-16UNC HEX L-NUT

$

$

Not available

3037

3037

3/8 24UNFX1 1/4HHBC5

$

$

Not available

3038

3038

R/B 3262 3/4-16UNF H JAML-NUT

$

$

Not available

3050

3050

R/B 3208 10-24UNC HEX L-NUT

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3058

Dixon 3058

COTTER PIN 1/8 X 2

$

$

Not available

3060

3060

ROLLPIN 3/16 DIA X 3/4

$

$

Not available

3065

3065

3/8HELICAL L-WASHER

$

$

Not available

3067

3067

R/B 3381 10-24UNC X1RDHDSCREW

$

$

Not available

3072

3072

$

$

Not available

3076

Dixon 3076

3/8-24 UNF HEX NUT

$

$

Not available

3083

3083

1/4-20UNCX1/2RDHDSCR

$

$

Not available

3174

3174

1/2-13 X 1` HHB

$

$

Not available

3175

3175

$

$

Not available

3402

3402

BRZ BUSH 5/8X3/8X3/4

$

$

Not available

3502

3502

HAND GRIP

$

$

Not available

3521

3521

ENG CAM MT BUSHING

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

6058

6058

V PULLEY

$

$

Not available

6059

6059

FLAT IDLER PULLEY

$

$

Not available

6065

6065

SERPENTINE IDLER SPR

$

$

Not available

6077-1

6077-1

$

$

Not available

6078

6078

PULLEY SPACER

$

$

Not available

6087-1

6087-1

$

$

Not available

6089

6089

ENG HANDLE WLDT

$

$

Not available

6092

6092

$

$

Not available

6094-1

6094-1

$

$

Not available

6095-1

6095-1

$

$

Not available

6097-1

6097-1

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6101

6101

CENTER SHAFT KEY

$

$

Not available

6107

6107

CLEVIS PIN 5/16

$

$

Not available

6109

6109

V-BELT SERPENTINE

$

$

Not available

6111

6111

V-BELT DECK DRIVE

$

$

Not available

6113

6113

BLADE WASHER

$

$

Not available

6127

6127

R/B 6181 DEFLECTOR WLDT

$

$

Not available

6134

6134

ENG SPRING

$

$

Not available

6135

6135

5/16 TURNBUCKLE

$

$

Not available

6136-2

6136-2

$

$

Not available

6148-A

6148-A

$

$

Not available

6151

6151

BRG DIXON #6151 -------

$

$

Not available

6156

6156

SERP. IDLER WLDT.

$

$

Not available

6159

6159

STABILIZER ARM

$

$

Not available

6161

6161

IDLER ARM WLDT 42

$

$

Not available

6164

6164

BUSH BRZ 5/8X3/4X1.6

$

$

Not available

6165

6165

MWR DK WLDT 42 SLR

$

$

Not available

6166

6166

$

$

Not available

6175

6175

$

$

Not available
