ZTR 425 - Dixon Zero-Turn Mower (1984) CHASSIS ASSEMBLY Parts Diagram

Zero-Turn Mower

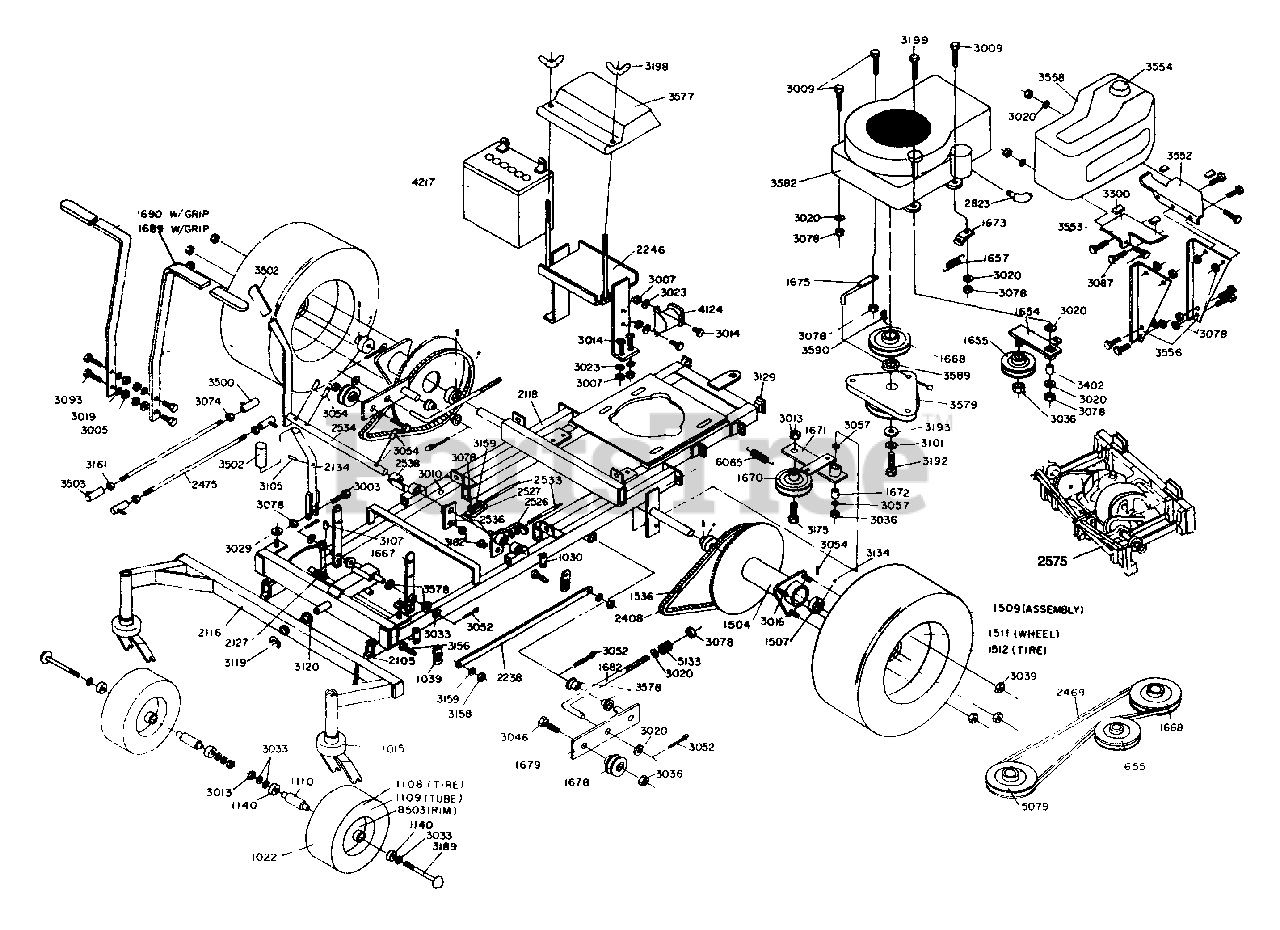

CHASSIS ASSEMBLY Parts Diagram

  • Title

1015

1015

CASTER WLDT

$

$

Not available

1022

1022

CASTER WHEEL & TIRE

$

$

Not available

1030

1030

UPPER LIFT LINK REAR

$

$

Not available

1039

1039

LWR LIFT LINK

$

$

Not available

1108

1108

TIRE 4.10/3.50X4 RIB

$

$

Not available

1109

1109

TUBE 4.10/3.50X4

$

$

Not available

1110

1110

CASTER AXLE BUSHING

$

$

Not available

1140

1140

CASTER WHEEL BEARING

$

$

Not available

1504

1504

WHEEL HUB

$

$

Not available

1507

1507

WHEEL/DECKHUB BEAR`G

$

$

Not available

1509

1509

REPLACE KIT-WHEEL

$

$

Not available

1511

1511

R/B 13439 REAR RIMS 18`

$

$

Not available

1512

1512

REAR TIRE

$

$

Not available

1536

1536

#40 RC CONN LINK

$

$

Not available

1654

1654

IDLER WLDT

$

$

Not available

1655

1655

R/B 10294 IDLER FLAT 3`

$

$

Not available

1657

1657

SPRING

$

$

Not available

1667

1667

LWR.CONTROL LEVER WL

$

$

Not available

1668

1668

PULLEY DRIVE

$

$

Not available

1670

1670

IDLER PULLEY

$

$

Not available

1671

1671

IDLER WELDMENT

$

$

Not available

1672

1672

BUSHING

$

$

Not available

1673

1673

SPRING MOUNT

$

$

Not available

1675

1675

ANCHOR

$

$

Not available

1678

1678

IDLER 2.0 FLAT

$

$

Not available

1679

1679

ARM WELDMENT

$

$

Not available

1682

1682

L` ROD

$

$

Not available

1689

1689

R/B 8615 UP CONT LEVER ASSY L

$

$

Not available

1690

1690

R/B 8615 UP CONT LEVER ASSY R

$

$

Not available

2105

2105

$

$

Not available

2116

2116

$

$

Not available

2118

2118

$

$

Not available

2127

2127

COMP SPRING 1.09 X 2

$

$

Not available

2134

2134

LIFT HANDLE WLDT

$

$

Not available

2238

2238

TIE BAR

$

$

Not available

2246

2246

BATTERY BOX WLDT

$

$

Not available

2408

2408

DR. CHAIN ASSY#40-92

$

$

Not available

2469

2469

V-BELT 30`

$

$

Not available

2475

2475

CONTROL ROD

$

$

Not available

2526

2526

BRAKE LINK LH

$

$

Not available

2527

2527

BRAKE LINK RH

$

$

Not available

2533

2533

BRAKE ROD

$

$

Not available

2534

2534

$

$

Not available

2536

2536

$

$

Not available

2538

2538

STOP MACH

$

$

Not available

2575

2575

TRANSAXLE ASM

$

$

Not available

2823

2823

R/B 12237 OIL DRAIN ASSY

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3010

3010

1/2DIAX2 1/4RD HD RV

$

$

Not available

3013

3013

NUT 1/2-13 UNC HEX L

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3016

3016

R/B 3103 3/8-24UNFX7/8 LUGBLT

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3023

3023

1/4HELICAL L-WASHER

$

$

Not available

3029

3029

FRONT GROMMET

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3036

Dixon 3036

3/8-16UNC HEX L-NUT

$

$

Not available

3039

3039

NUT, LUG 3/8-24 HEX

$

$

Not available

3046

3046

3/8-16UNCX2 HH BLT

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3054

3054

PIN, ROLL 3/16 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3078

3078

5/16-18UNC HEX L-NUT

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3101

3101

7/16 HELICAL L-WASH

$

$

Not available

3105

3105

R/B 3105 14X1-1/4 HD SPIR PIN

$

$

Not available

3107

3107

HD 1/4X11/2 SPIR PIN

$

$

Not available

3119

3119

RET.RING TRU ARC W75

$

$

Not available

3120

3120

NYLON SHLDR BUSHING

$

$

Not available

3129

3129

$

$

Not available

3134

3134

1/4-28X1/4SOC.S.S.

$

$

Not available

3156

Dixon 3156

LIFT LINK PIVOT

$

$

Not available

3158

Dixon 3158

R/B 3205 5/16-18UNC HXLOCKNUT

$

$

Not available

3159

Dixon 3159

DISC SPRING .317 ID

$

$

Not available

3161

Dixon 3161

5/16 24UNF NUT LH TH

$

$

Not available

3175

3175

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3189

Dixon 3189

1/2-13X5-1/2 CAR BLT

$

$

Not available

3192

Dixon 3192

R/B 3220 7/16-20 X 3 G5 HHB

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3198

Dixon 3198

1/4-20 WING NUT W/NY

$

$

Not available

3199

3199

5/16-18X2-1/4HHB GR5

$

$

Not available

3300

3300

FOAM PAD 1/8X1X1-1/2

$

$

Not available

3402

3402

BRZ BUSH 5/8X3/8X3/4

$

$

Not available

3500

3500

R/B 8284 5/16 24BALLJNT RH TH

$

$

Not available

3502

3502

HAND GRIP

$

$

Not available

3503

3503

R/B 8285 5/16 24BALLJNT LH TH

$

$

Not available

3552

3552

R/B 1385 TANK MOUNT BRKT LONG

$

$

Not available

3553

3553

R/B 1384 TANK MOUNT BRKTSHORT

$

$

Not available

3554

3554

FUEL GAUGE

$

$

Not available

3556

3556

TANK SUPPORT-LH

$

$

Not available

3558

3558

2 GAL TANK W/CAP

$

$

Not available

3577

3577

$

$

Not available

3578

3578

NYLON BUSHING 1/2 ID

$

$

Not available

3579

3579

ELECTRIC CLUTCH

$

$

Not available

3582

3582

$

$

Not available

3589

Dixon 3589

CLUTCH SPACER

$

$

Not available

3590

Dixon 3590

KEY 1/4 SQ X 1/2

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

5079

5079

PULLEY A 5/8 X 4.0

$

$

Not available

5133

5133

R/B 5133 CRADLE SPRING

$

$

Not available

6065

6065

SERPENTINE IDLER SPR

$

$

Not available

8503

8503

CASTER RIM

$

$

Not available
